Description
Source Address
Source Port
Source MAC
Target Address
Target Port
Item
Protocol
Action

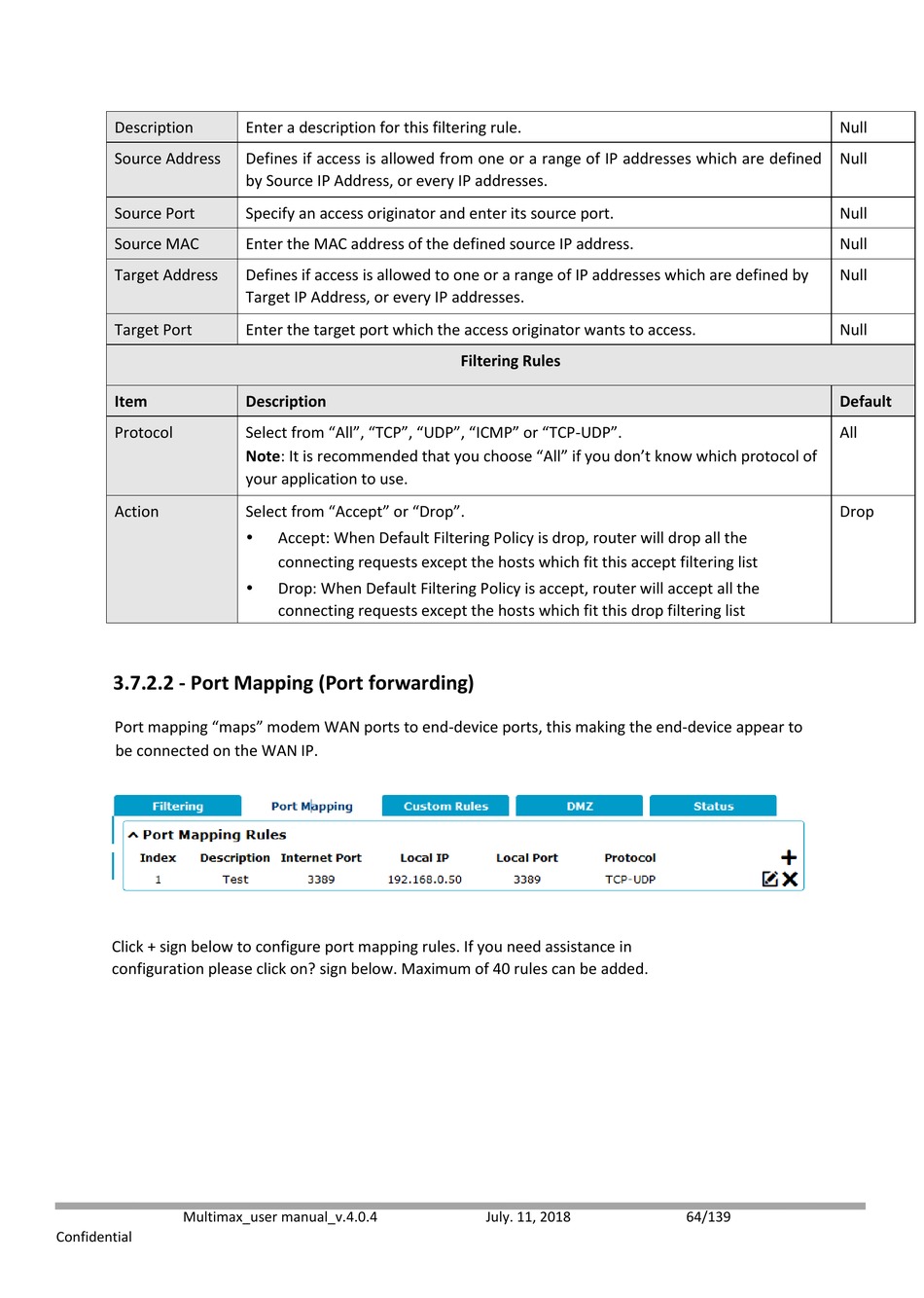

3.7.2.2 - Port Mapping (Port forwarding)
Port mapping "maps" modem WAN ports to end-device ports, this making the end-device appear to
be connected on the WAN IP.
Click + sign below to configure port mapping rules. If you need assistance in
configuration please click on? sign below. Maximum of 40 rules can be added.
Multimax_user manual_v.4.0.4
Confidential
Enter a description for this filtering rule.
Defines if access is allowed from one or a range of IP addresses which are defined
by Source IP Address, or every IP addresses.
Specify an access originator and enter its source port.
Enter the MAC address of the defined source IP address.
Defines if access is allowed to one or a range of IP addresses which are defined by
Target IP Address, or every IP addresses.
Enter the target port which the access originator wants to access.
Description
Select from "All", "TCP", "UDP", "ICMP" or "TCP-UDP".
Note: It is recommended that you choose "All" if you don't know which protocol of
your application to use.
Select from "Accept" or "Drop".
Accept: When Default Filtering Policy is drop, router will drop all the
connecting requests except the hosts which fit this accept filtering list
Drop: When Default Filtering Policy is accept, router will accept all the
connecting requests except the hosts which fit this drop filtering list
Filtering Rules
July. 11, 2018
Null
Null
Null
Null
Null
Null
Default
All
Drop
64/139
