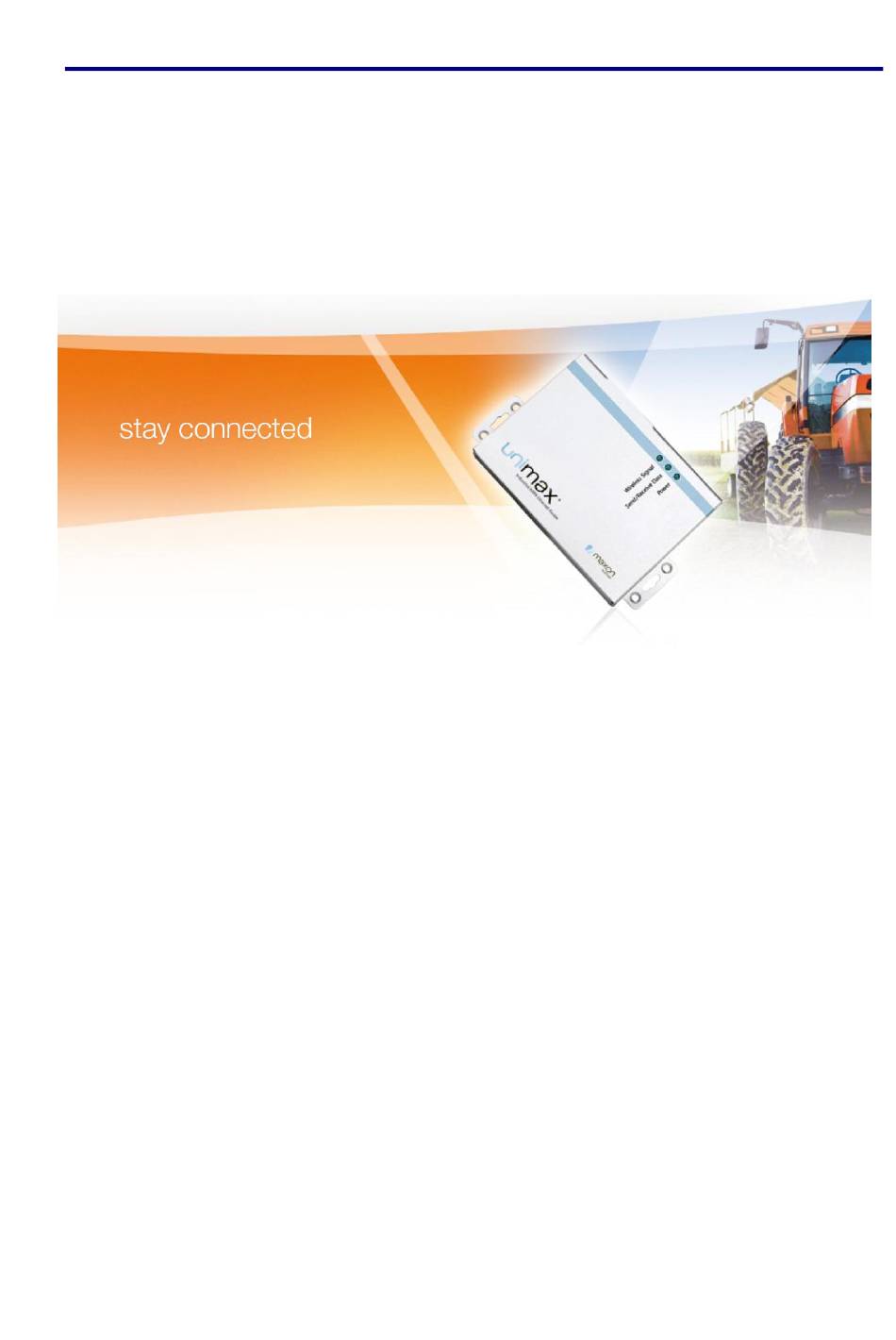

Page 1: Unimax Manual
U n i m a x M a n u a l VERSION 2.1 This document is the sole and 36A Gibson Ave exclusive property Maxon Padstow NSW 2211 Australia. Not to be distributed or Australia divulged without prior written URL: www.maxon.com.au agreement... -
Page 2: Table Of Contents
T A B L E O F C O N T E N T S Unimax Manual ..........................1 TABLE OF CONTENTS ........................2 RF EXPOSURE COMPLIANCE ..................... 4 1.1.1. CAUTION .......................... 4 Unimax Technical Specifications ..................5 Revision History ........................ 6 Contact Information ......................7 Introduction ........................8 5.1.1. Overview ........................... 8 5.1.2. - Page 3 6.1.3.15. Reboot tab ......................27 6.1.3.16. Upgrade tab ......................28 Usage ..........................29 7.1.1. Operation mode .......................29 7.1.1.1. Modem Router Mode .....................29 7.1.1.2. Bridge mode ......................29 7.1.2. Advance Configurations ....................34 7.1.2.1. Virtual Server .......................34 7.1.2.2. DMZ Server ......................35 7.1.3. Factory Default Function ....................36...
-
Page 4: Rf Exposure Compliance
1.1.1. CAUTION Change or modification without the express consent of Maxon Australia Pty. Ltd. voids the user’s authority to use the equipment. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. The modem is a transmitting device with similar output power to a mobile phone. -
Page 5: Unimax Technical Specifications
Maxon Australia Pty Ltd. customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Maxon Australia Pty Ltd. for any damages resulting from such application. -
Page 6: Revision History
Manual Version 2.1 3 . R e v i s i o n H i s t o r y Product Name Maxon Unimax Industrial Ethernet Router Document Type Current Version Number Status of the Document Public Release Revision Date... -
Page 7: Contact Information
4 . C o n t a c t I n f o r m a t i o n Depending on the nature of your inquiry, please feel free to contact the following senior personnel: Sales, Marketing & Corporate: Technical Support: Phone: +61 2 8707 3000 Email: support@maxon.com.au Sales: Phone: +61 2 8707 3000 Email: sales@maxon.com.au 7/36... -
Page 8: Introduction
Unimax, HSDPA Ethernet Router performs data communication functions between wired-LAN (Local Area Network) and wireless WAN (Wide Area Network) using HSPA cellular station wirelessly. Unimax has various input voltage range that can support from 9~30 [VDC] which provides compatibility for platforms utilizing various industrial applications. -
Page 9: Hardware Composition
1 x Ethernet cable (Direct) 1 x DC Power lead 1 x FME female antenna 5.1.5. Software composition Unimax has a web-based configuration page and the default IP of the device is 192.168.0.1. 5.1.6. Firmware Firmware version: UNIMAX-S0.1.4-p21 5.1.7. Status LED Unimax has 3-status LED for indicating the current state. -
Page 10: Protocol Descriptions
Manual Version 2.1 Display Description Indicates the RF sensitivity status is good (RSSI<-85 dBm) Wireless Indicates the RF sensitivity status is not good BLINKING Signal (-85< RSSI<-90 dBm) Indicates the RF sensitivity status is poor (RSSI>-90 dBm) BLINKING Indicates that data is being sent Send/Receive Data Indicates no data is being sent... -
Page 11: Dhcp (Dynamic Host Configuration Protocol)
Manual Version 2.1 5.1.8.3. DHCP (Dynamic Host Configuration Protocol) DHCP (Dynamic Host Configuration Protocol) is a communication protocol that lets network administrators centrally manage and automate the assignment of Internet Protocol (IP) addresses in an organization's network. Using the Internet Protocol, each machine that connects to the Internet needs a unique IP address, which is assigned when an Internet connection is created for a specific computer. -
Page 12: Rip V1/V2 (Routing Information Protocol)
Manual Version 2.1 5.1.8.5. RIP v1/v2 (Routing Information Protocol) RIP (Routing Information Protocol) is a widely-used protocol for managing router information within a self-contained network such as a corporate local area network or an interconnected group of such LANs. RIP is classified by the Internet Engineering Task Force (IETF) as one of several internal gateway protocols (Interior Gateway Protocol). -
Page 13: Icmp (Internet Control Message Protocol)
Manual Version 2.1 The term SNTP applies to both the protocol and the client/server programs that run on computers. The programs are compiled by the user as an SNTP client, SNTP server, or both. In basic terms, the SNTP client initiates a time request exchange with the time server. As a result of this exchange, the client is able to calculate the link delay, its local offset, and adjust its local clock to match the clock at the server's computer. -
Page 14: Operation Mode
[Picture 7: Operation in Modem Router Mode] 6.1.1.1. Quick start modem router mode Unimax is set to modem router mode by default. In this mode, Unimax is connected to a PC and user can browse the internet. 6.1.1.2. Configuring host PC’s network environment To obtain an IP from the DHCP server of the Unimax, refer to steps below. - Page 15 Manual Version 2.1 Right click on “Local Area Connection” under Network Connections and select Properties. [Picture 9: Local Area Connection] Double click on “Internet Protocol [TCP/IP]” item. [Picture 10: Internet Protocol TCP/IP] Check the “Obtain an IP address automatically” and then click OK button. [Picture 11: Obtain an IP address automatically] 15/36...
-
Page 16: Bridge Mode
6.1.2. Bridge Mode In Bridge mode, the host PC acquires IP from the ISP directly through Unimax. Unimax has a PPPoE Authenticator internally that communicates with PPPoE on client PC or other Router. Unimax converts the protocols between PPP to PPPoE, the host PC processes all the network protocols (similar to dial-up). -
Page 17: Home Tab
Time acquired from Network Time network Firmware Firmware version of the Unimax Version HSPA Version Firmware version of the 3G module inside the Unimax Unimax Network status of the Unimax Router Status Network Status of the 3G module including registration Status... -
Page 18: Status Tab
[Table 3: Device item information on Status Page] Device: This option shows amount of data transfer. Route: This item displays routing table that Unimax has and default gateway received from ISP. Syslog: This option provides the detailed sys logs for the device. -
Page 19: Snmp Tab
Manual Version 2.1 Ethernet tab displays the IP address and Subnet Mask of Unimax. ITEM Description IP Address IP address of the Unimax router Subnet Mask Subnet mask used by the Unimax router [Table 4: Ethernet tab information] 6.1.3.4. SNMP tab [Picture 19: SNMP tab] SNMP tab is used to configure SNMP agent. -
Page 20: Sntp Tab
Manual Version 2.1 System SNMP agents location Location - Public: Four Trap event available Trap Community Name - Private: Four Trap event disabled Trap IP address of the first trap server Server IP Trap IP address of the second trap server Server IP - Enable: Generate authentication fail event Auth. -
Page 21: Dns Tab
Manual Version 2.1 ITEM Description Operation - Enable/Disable SNTP SNTP Server Address IP address of the SNTP server Time Zone Time stamp from GMT [Table 6: SNTP tab information] 6.1.3.6. DNS tab [Picture 21: DNS tab] DNS tab is used to select DNS server. ITEM Description DNS IP Address... -
Page 22: Nat Tab
DMZ Host IP traffic is passed to the host with this IP address only. Web interface of the Unimax will not be accessible. User can add list of MAC addresses. If the MAC address programmed by user doesn't match that of the host PC... -
Page 23: Mode Tab
[Table 9: NAT tab information] 6.1.3.9. Mode tab [Picture 24: Mode tab] MODE tab is used to configure the way Unimax should connect to the internet. ITEM Description - PPP Auto: PPP connection via HSPA network Run as... - Page 24 Enable: Modem will try to connect automatically after power Auto Connect Disable: User has to manually click connect on the Web interface Specify the first retrial time for Unimax to reconnect incase of a dropout Retrial when the wireless network gets disconnected Retrial...
-
Page 25: Router Tab
Manual Version 2.1 6.1.3.10. Router tab [Picture 25: Router tab] User can set the routing option manually. ITEM Description ZEBRA OP Enable/Disable Zebra Host Name Zebra demon host name Password Zebra demon host password Log Path The pass of zebra log message located Subscript Setting scripts for user network [Table 11: Router tab information]... -
Page 26: Vrrp Tab
Manual Version 2.1 This tab allows users to use the set of AT commands. ITEM Description User can use the set of AT commands [Table 12: AT tab information] 6.1.3.12. VRRP tab [Picture 27: VRRP tab] VRRP (Virtual Router Redundancy Protocol) is used for back-up network. ITEM Description Operation... -
Page 27: Backup Tab
[Table 14: System tab information] 6.1.3.14. Backup Tab [Picture 29: Backup tab] Backup tab allows users to save all configuration settings of the Unimax to a file and restore them without having to enter them manually. ITEM Description Restore all settings... -
Page 28: Upgrade Tab
Reboot tab is used for rebooting Unimax via web-based configuration page. 6.1.3.16. Upgrade tab [Picture 31: Upgrade tab] Upgrade tab is used for upgrading the firmware of Unimax. To upgrade the firmware, please do the following: Select new firmware from its stored location on the computer. ... -
Page 29: Usage
7.1.1.2. Bridge mode 1. To use Unimax in Bridge Mode, click on the Mode tab and select Bridge in the “Run as” field and click on Apply. 2. Web page will automatically go to Reboot page and then click on Reboot button. - Page 30 Manual Version 2.1 3. For using Unimax in Bridge mode, a PPPoE connection should be established. For Windows XP, right click on “My Network Places” icon and select Properties. [Picture 33: Setting Host PC] 4. For establishing PPPoE connection, click on “Create a new connection”...
- Page 31 Manual Version 2.1 6. Check the “Connect to the Internet” item and then click Next. [Picture 36: Connect to the Internet] 7. Check the “Set up my connection manually” icon and then click Next. [Picture 37: Set up my connection manually] 8.
- Page 32 Manual Version 2.1 9. Write the name of the ISP and then click Next. [Picture 39: ISP Name] 10. Enter user Username/Password and Confirm password details and then click Next. [Picture 40: Username/Password details] 11. Check “Add a shortcut to this connection to my desktop” and click on Finish to close the wizard.
- Page 33 12. Click the PPPoE shortcut icon on the desktop and then click Connect on the PPPoE dial connection screen. [Picture 42: PPPoE connection screen] 13. Connecting window appears, trying to connect the Unimax on the Internet. [Picture 43: Connecting Unimax on the internet] 14. The username/password details are verified as follows: [Picture 44: Verifying username and password] 15.
-
Page 34: Advance Configurations
Port forwarding can be used to set up a local server to connect to an outside network. When remote users send requests for accessing the local server, Unimax can forward those requests to the appropriate server to handle the requests. -
Page 35: Dmz Server
DMZ in this case. [Picture 49: Unimax connected to a server and a PC via DMZ Host] To place an IP in the DMZ, click the NAT tab of the web interface. Select Operation item: Enable, DMZ Host IP: 192.168.0.51 and then click Apply button. -
Page 36: Factory Default Function
To set the modem back to factory default: Press the factory reset switch, located on the left end plate next to the power switch, and hold in for 15 seconds. Release the reset button. Unimax is now set to factory default. 36/36...
