Openvpn - Maxon multimax+ User Manual

When finished, click Submit > Save & Apply for the configuration to take effect.

4.3.2 OpenVPN

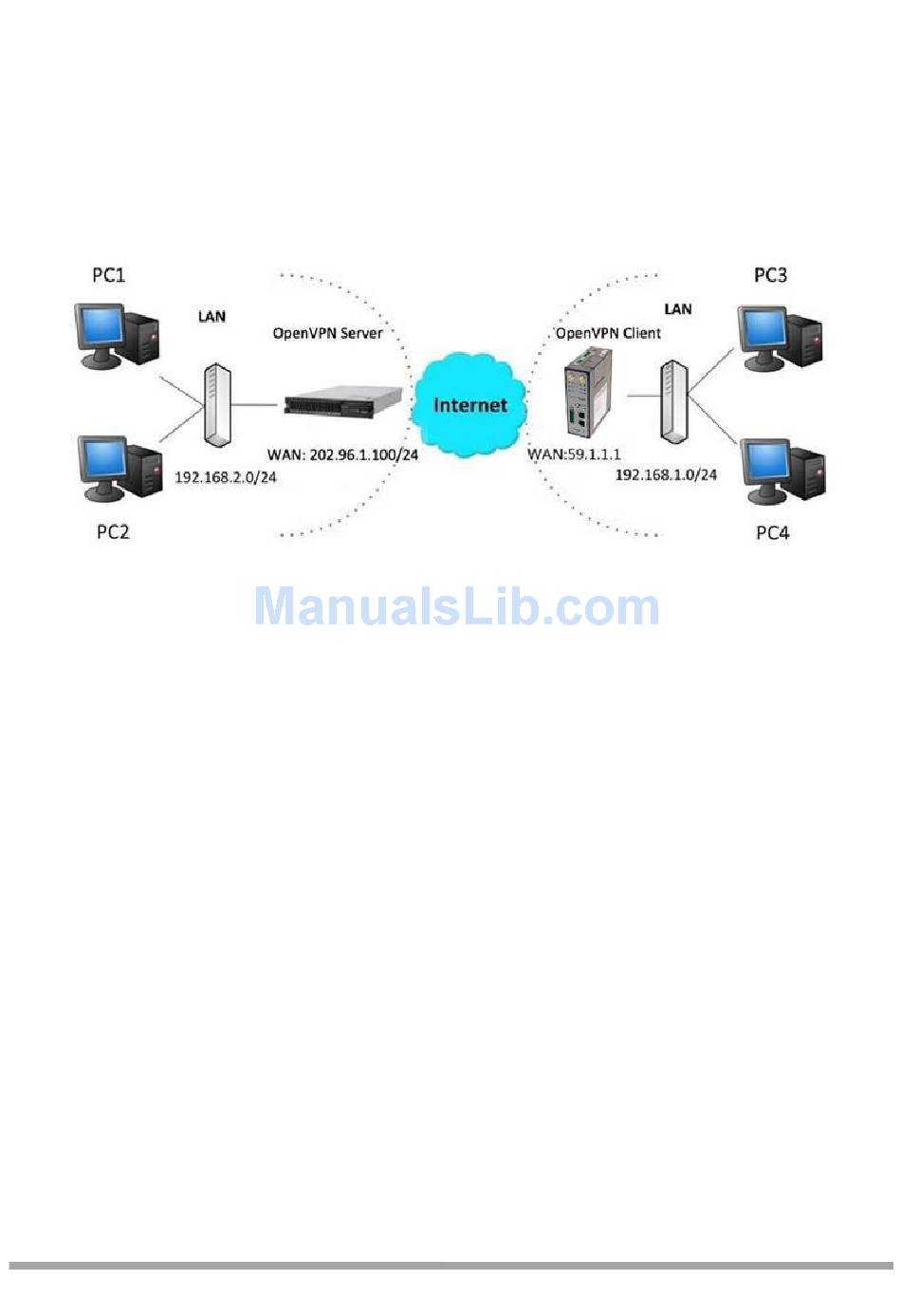

OpenVPN supports two modes, including Client and P2P. Here takes P2P as an example.
The configuration of two points is as follows.
OpenVPN_Server:
Generate relevant OpenVPN certificate on the server side firstly, and refer to the following
commands to configuration the Server:
local 202.96.1.100
mode server port
1194 proto udp dev
tun tun-mtu 1500
fragment 1500 ca
ca.crt cert
Server01.crt key
Server01.key dh
dh1024.pem server
10.8.0.0
255.255.255.0
ifconfig-pool-persist
ipp.txt push "route
192.168.3.0
255.255.255.0" client-
config-dir ccd route
192.168.1.0
255.255.255.0
keepalive 10 120
cipher BF-CBC comp-
Multimax_user manual_v.4.0.4
Confidential
July. 11, 2018 121/139
