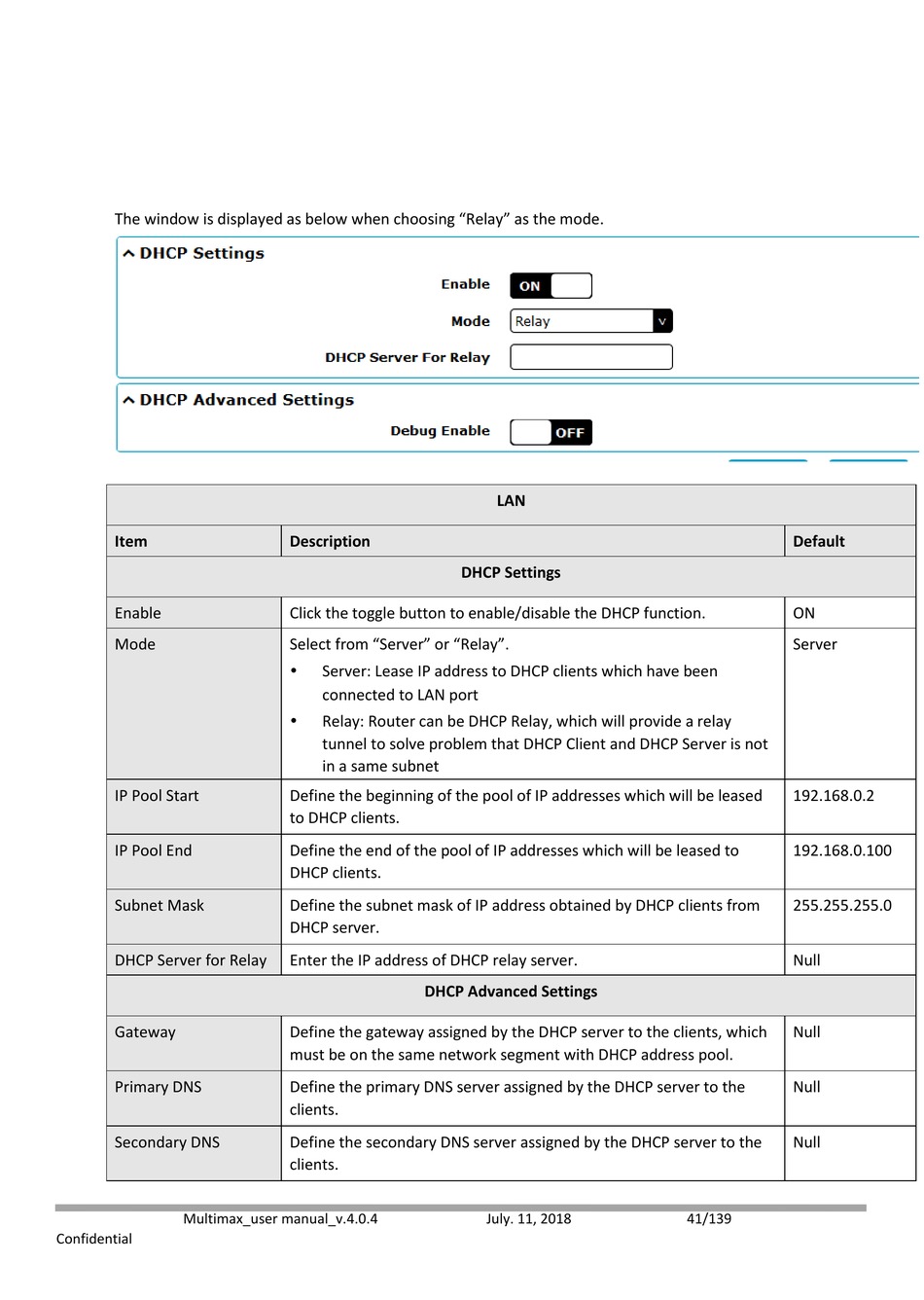

The window is displayed as below when choosing "Relay" as the mode.
Item
Enable
Mode
IP Pool Start
IP Pool End
Subnet Mask
DHCP Server for Relay
Gateway
Primary DNS
Secondary DNS
Multimax_user manual_v.4.0.4
Confidential
Description
DHCP Settings
Click the toggle button to enable/disable the DHCP function.
Select from "Server" or "Relay".

Server: Lease IP address to DHCP clients which have been
connected to LAN port

Relay: Router can be DHCP Relay, which will provide a relay
tunnel to solve problem that DHCP Client and DHCP Server is not
in a same subnet
Define the beginning of the pool of IP addresses which will be leased
to DHCP clients.
Define the end of the pool of IP addresses which will be leased to
DHCP clients.
Define the subnet mask of IP address obtained by DHCP clients from
DHCP server.
Enter the IP address of DHCP relay server.
DHCP Advanced Settings
Define the gateway assigned by the DHCP server to the clients, which
must be on the same network segment with DHCP address pool.
Define the primary DNS server assigned by the DHCP server to the
clients.
Define the secondary DNS server assigned by the DHCP server to the
clients.
LAN
July. 11, 2018
Default
ON
Server
192.168.0.2
192.168.0.100
255.255.255.0
Null
Null
Null
Null
