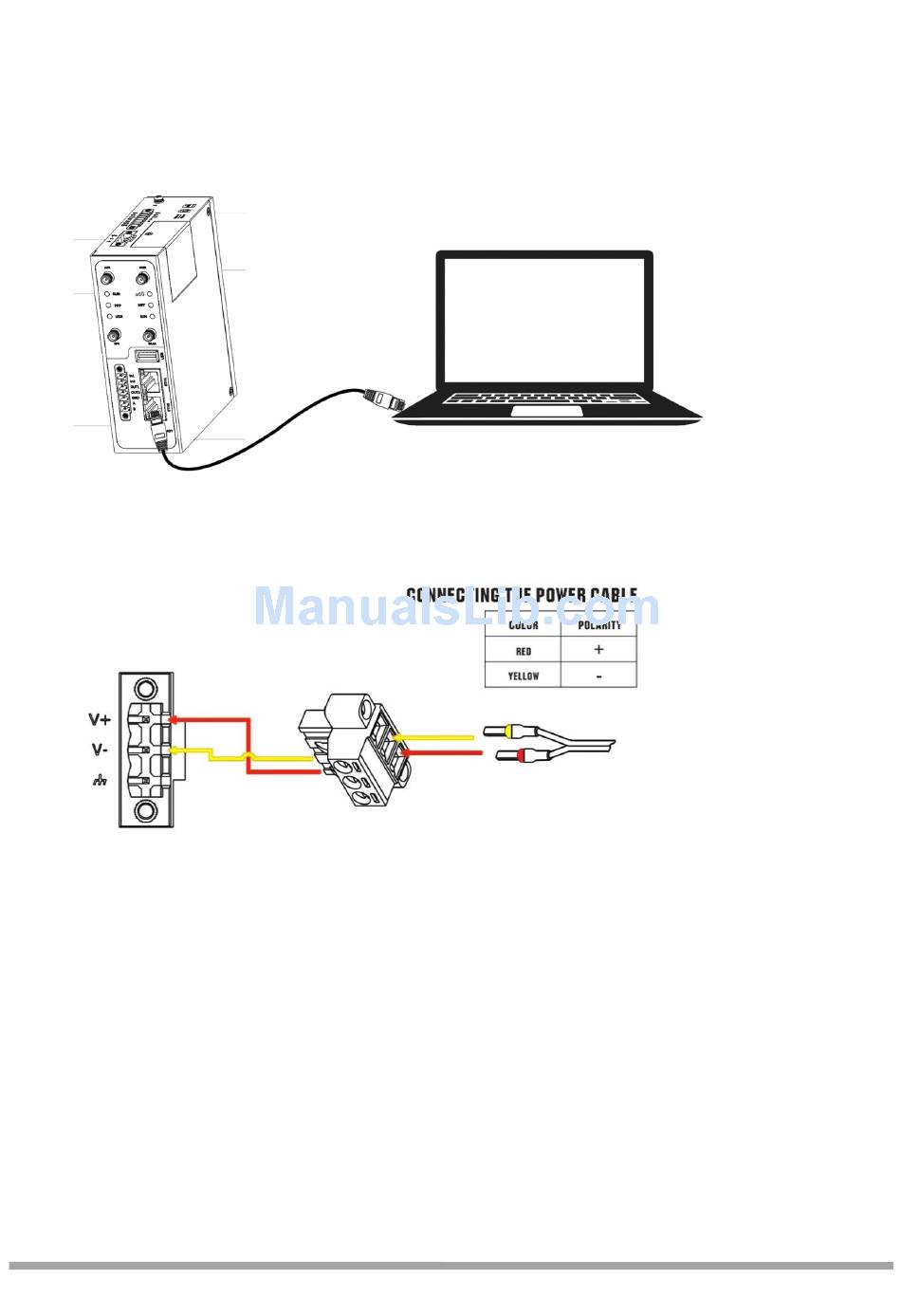

2.10 Connect the Router to a Computer

Connect one end of an Ethernet cable to the port marked ETH0 or ETH1 and the other end of the
cable to your computer.

2.11 Power Supply

Multimax Router has reverse polarity protection, but always refers to the figure above to
connect the power adapter correctly. There are two cables associated with the power
adapter. Following to the colour of the head, connect the cable marked red to the positive
pole through a terminal block, and connect the yellow one to the negative in the same way.
The last step is to plug the power adapter into your socket. Note: The range of power
voltage is 9 to 60V DC.
