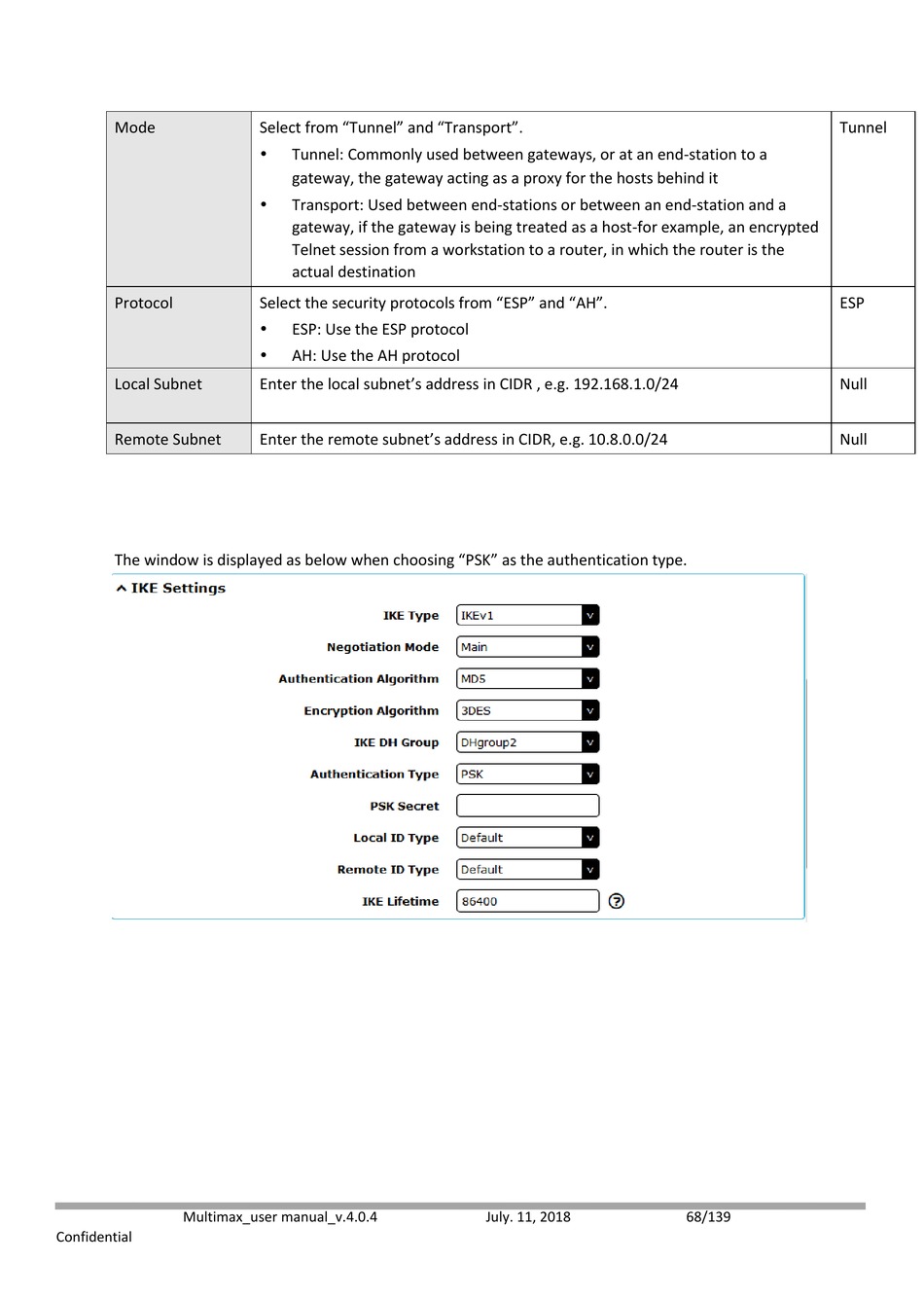

Maxon multimax+ User Manual page 68

Mode
Protocol
Local Subnet
Remote Subnet
The window is displayed as below when choosing "PSK" as the authentication type.
Multimax_user manual_v.4.0.4
Confidential
Select from "Tunnel" and "Transport".

Tunnel: Commonly used between gateways, or at an end-station to a
gateway, the gateway acting as a proxy for the hosts behind it

Transport: Used between end-stations or between an end-station and a
gateway, if the gateway is being treated as a host-for example, an encrypted
Telnet session from a workstation to a router, in which the router is the
actual destination
Select the security protocols from "ESP" and "AH".

ESP: Use the ESP protocol

AH: Use the AH protocol
Enter the local subnet's address in CIDR , e.g. 192.168.1.0/24
Enter the remote subnet's address in CIDR, e.g. 10.8.0.0/24
July. 11, 2018
Tunnel
ESP
Null
Null
68/139
