2.8 Mount the Router

The router can be placed on a desktop or mounted to a wall or a 35 mm DIN rail.
2.8.1 - Two methods for mounting the router

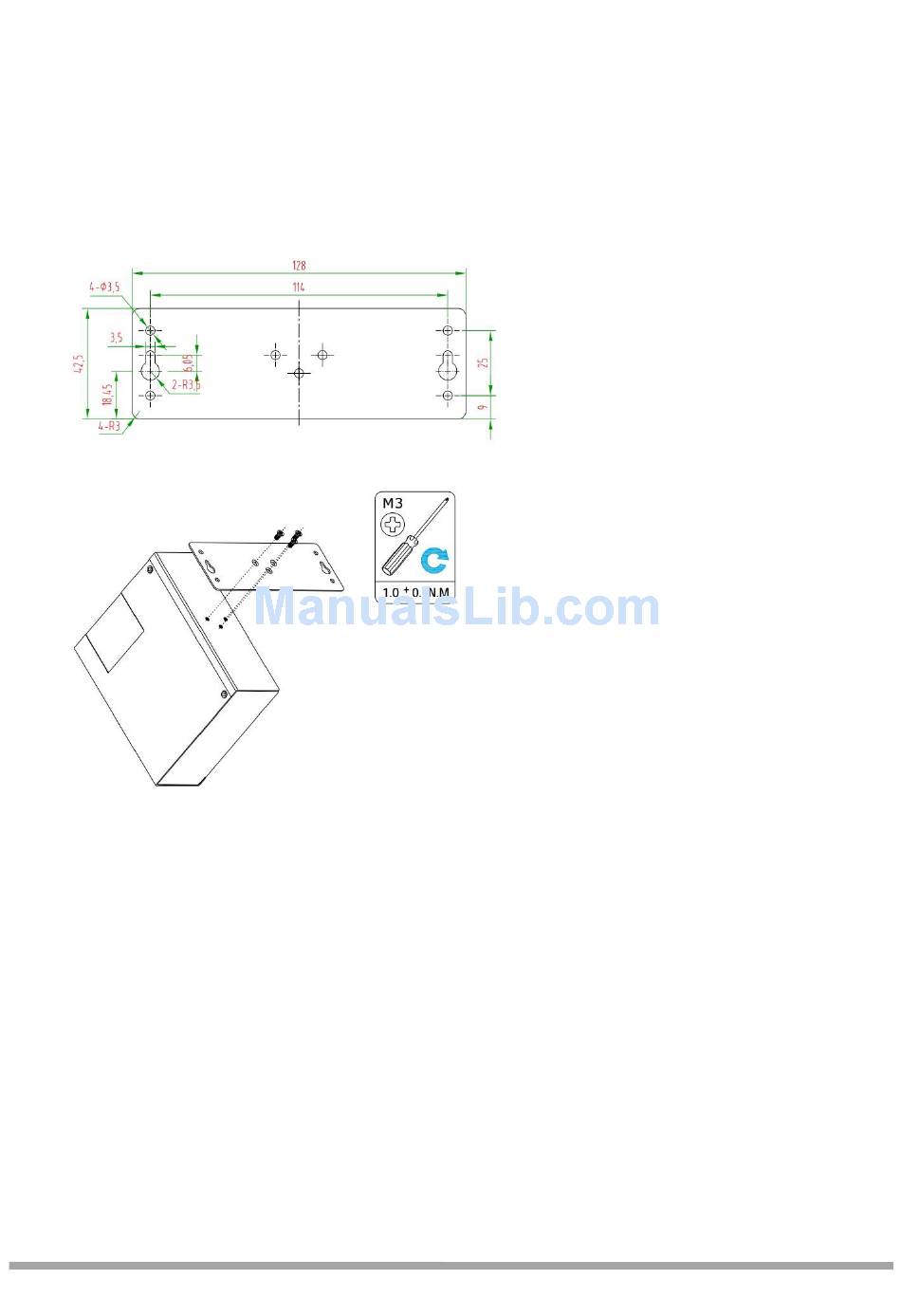

1. Wall mounting (measured in mm)
Use 3 pcs of M3*4 flat head Phillips screws to fix the wall mounting kit to the router, and then
use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on
the wall.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
2. DIN rail mounting (measured in mm)
