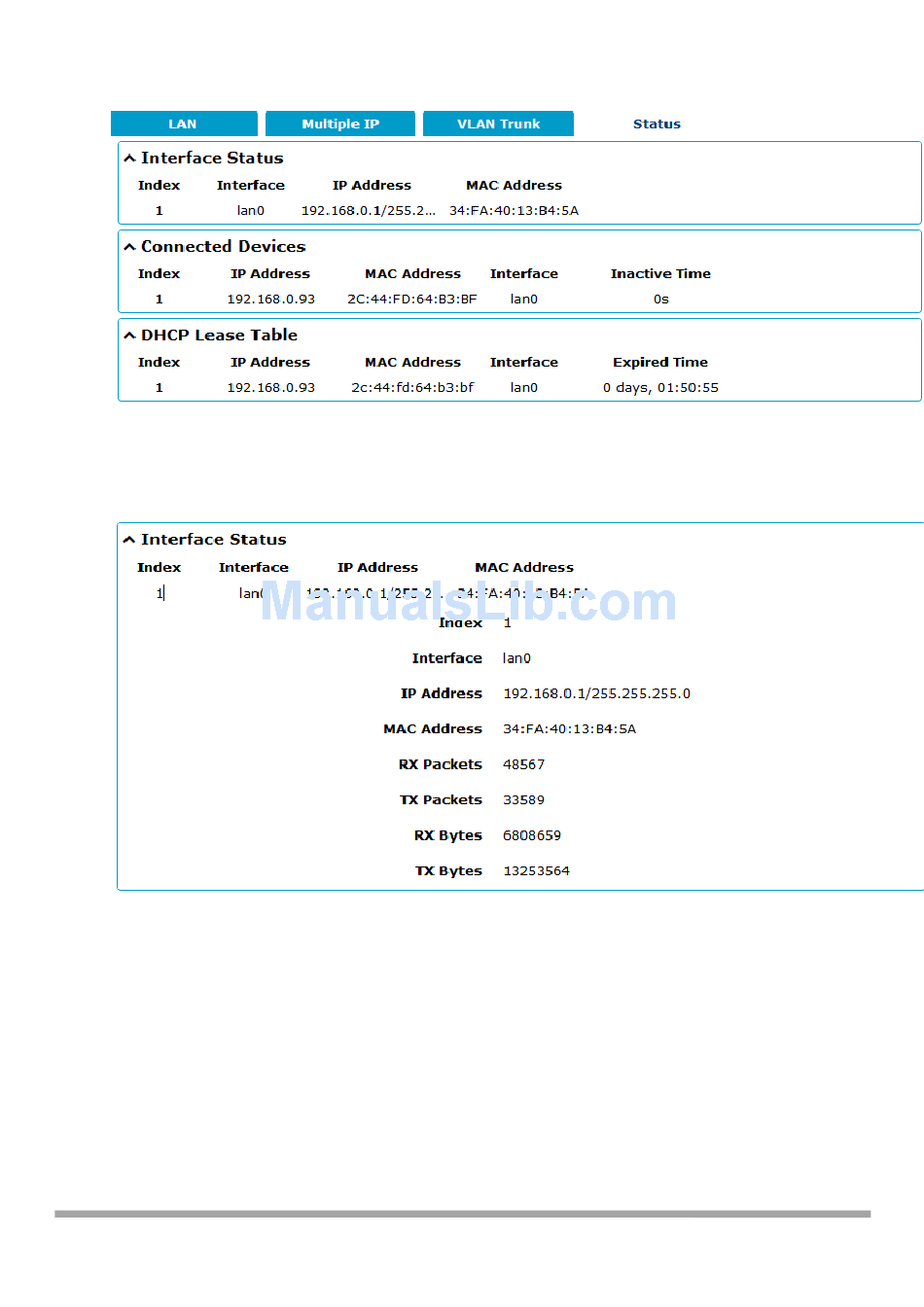

By clicking on a row of the Interface Status area, detailed status information will be display under
the row. Please refer to the screenshot below.
3.6.4 - Interface > Ethernet
This section allows you to set the related parameters for Ethernet. There are two Ethernet ports on
MULTIMAX Router, ETH0 and ETH1. The ETH0 on the router can be configured as either a WAN or a
LAN port, while ETH1 can only be configured as a LAN port. By default, ETH0 and ETH1 are lan0, and
their IP are 192.168.0.1/255.255.255.0. Since lan0 must be assigned to one port and WAN port
must be assigned to the ETH0, there are four configurations. You can choose the appropriate
configuration to fit your current needs. The specific port configurations are shown below.
