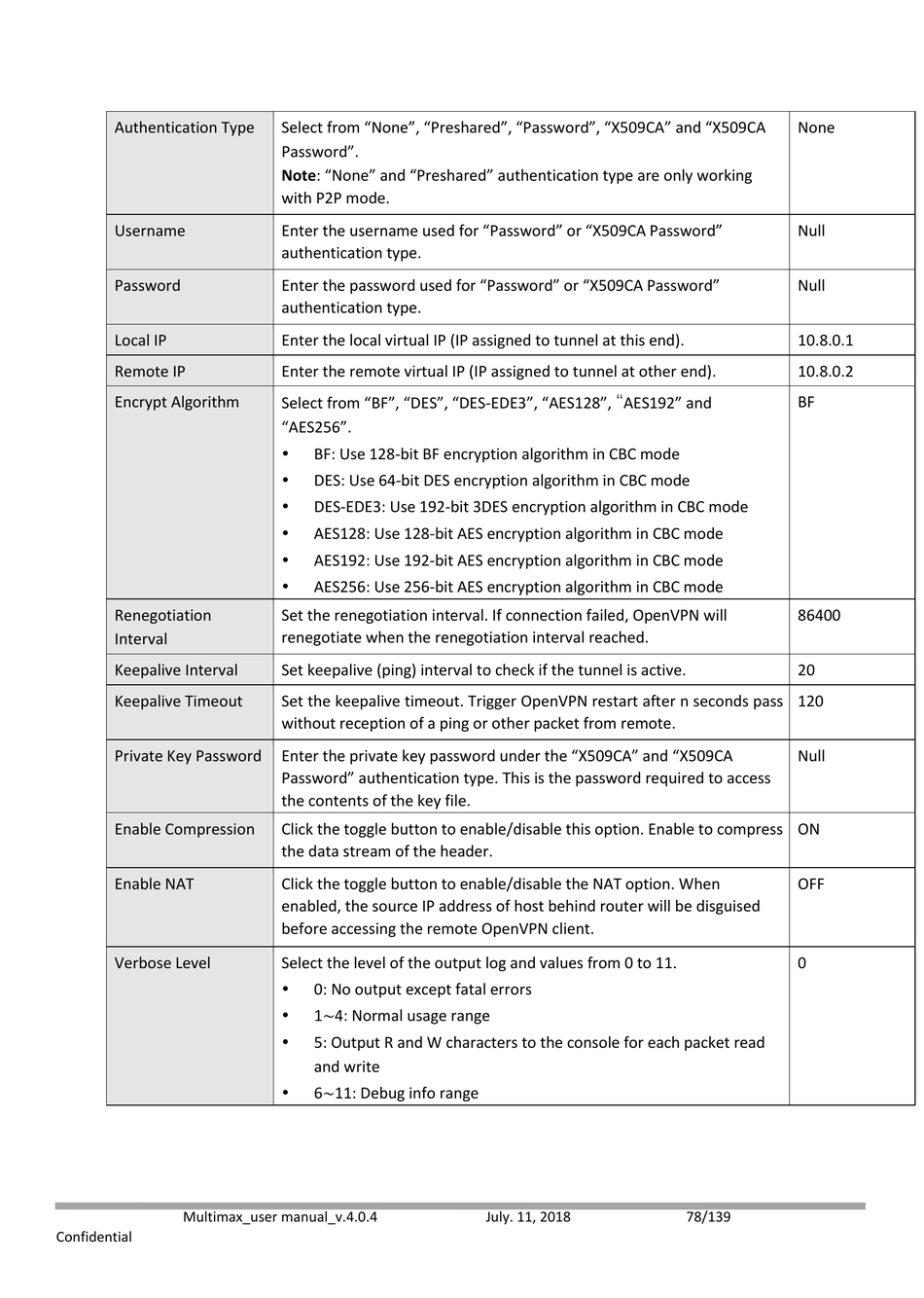

Maxon multimax+ User Manual page 78

Authentication Type
Username
Password
Local IP
Remote IP
Encrypt Algorithm
Renegotiation
Interval
Keepalive Interval
Keepalive Timeout
Private Key Password
Enable Compression
Enable NAT
Verbose Level
Multimax_user manual_v.4.0.4
Confidential
Select from "None", "Preshared", "Password", "X509CA" and "X509CA
Password".
Note: "None" and "Preshared" authentication type are only working
with P2P mode.
Enter the username used for "Password" or "X509CA Password"
authentication type.
Enter the password used for "Password" or "X509CA Password"
authentication type.
Enter the local virtual IP (IP assigned to tunnel at this end).
Enter the remote virtual IP (IP assigned to tunnel at other end).
Select from "BF", "DES", "DES-EDE3", "AES128", "AES192" and
"AES256".

BF: Use 128-bit BF encryption algorithm in CBC mode

DES: Use 64-bit DES encryption algorithm in CBC mode

DES-EDE3: Use 192-bit 3DES encryption algorithm in CBC mode

AES128: Use 128-bit AES encryption algorithm in CBC mode

AES192: Use 192-bit AES encryption algorithm in CBC mode

AES256: Use 256-bit AES encryption algorithm in CBC mode
Set the renegotiation interval. If connection failed, OpenVPN will
renegotiate when the renegotiation interval reached.
Set keepalive (ping) interval to check if the tunnel is active.
Set the keepalive timeout. Trigger OpenVPN restart after n seconds pass
without reception of a ping or other packet from remote.
Enter the private key password under the "X509CA" and "X509CA
Password" authentication type. This is the password required to access
the contents of the key file.
Click the toggle button to enable/disable this option. Enable to compress
the data stream of the header.
Click the toggle button to enable/disable the NAT option. When
enabled, the source IP address of host behind router will be disguised
before accessing the remote OpenVPN client.
Select the level of the output log and values from 0 to 11.

0: No output except fatal errors

1~4: Normal usage range

5: Output R and W characters to the console for each packet read
and write

6~11: Debug info range
July. 11, 2018
None
Null
Null
10.8.0.1
10.8.0.2
BF
86400
20
120
Null
ON
OFF
0
78/139
