3.6.2.3 - VLAN Trunk

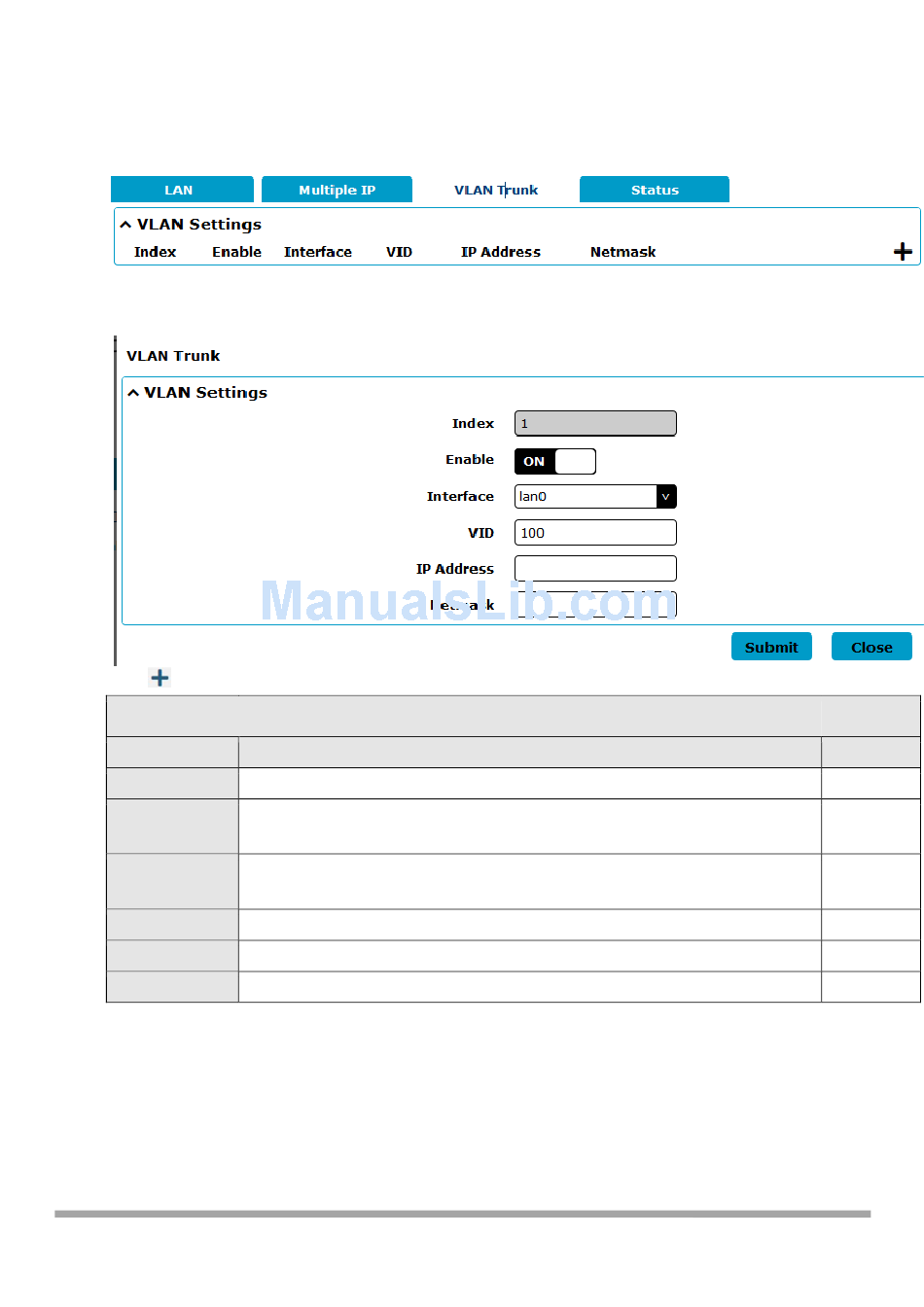

Clic k to add a VLAN. The maximum count is 8 .
Item
Index
Enable
Interface
VID
IP Address
Netmask
3.6.2.4 - Status
This section allows you to view the status of LAN connection.
Multimax_user manual_v.4.0.4
Confidential
Description
Position in list – READ ONLY
Click the toggle button to enable/disable this VLAN tag. Enable to make router
encapsulate and de-encapsulate the VLAN tag.
Choose the interface which wants to enable VLAN trunk function. Select from
"lan0" or "lan1" depends on your ETH0 and ETH1's corresponding LAN port.
Set the tag ID of VLAN and digits from 1 to 4094.
Set the IP address of VLAN port.
Set the Netmask of VLAN port.
VLAN Trunk
July. 11, 2018
Default
--
ON
lan0
100
Null
Null
