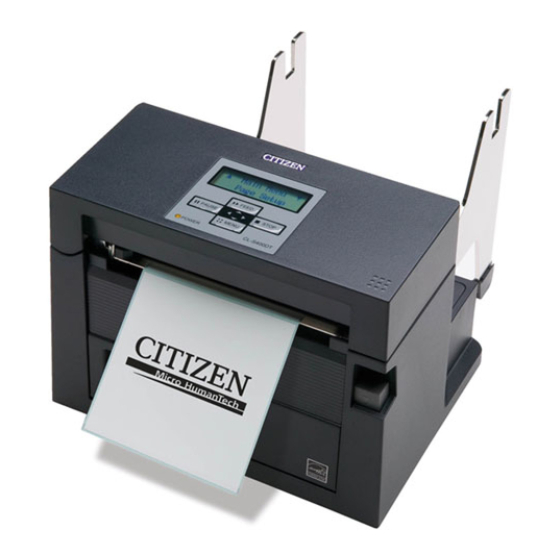

Thermal label & barcode printer
Hide thumbs Also See for CL-S400DT:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Technical Manual
CL-S400DT
Thermal Label & Barcode Printer
PZY90001-00
1.00E-1108

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL-S400DT and is the answer not in the manual?

Questions and answers

Related Manuals for Citizen CL-S400DT

Summary of Contents for Citizen CL-S400DT

  • Page 1 Technical Manual CL-S400DT Thermal Label & Barcode Printer PZY90001-00 1.00E-1108...
  • Page 2 NOTICE This document contains proprietary information of Citizen Systems Japan Co, Ltd. No part of this document or its contents shall be used or reproduced without the express permission of Citizen Systems Japan Co, Ltd. ® CITIZEN is a registered trade mark of CITIZEN HOLDINGS CO., LTD., Japan.
  • Page 3 HAPTER PECIFICATIONS HAPTER PERATING RINCIPLE HAPTER ISASSEMBLY AND AINTENANCE HAPTER ROUBLESHOOTING HAPTER ARTS ISTS HAPTER IRCUIT IAGRAMS PPENDICES CL-S400DT...

  • Page 4: Safety Precautions

    - Do not put the printed circuit boards directly on the printer or on the floor. - When disassembling or reassembling, check wires for any damage and do not pinch or damage them. Also, run wires as they were. CL-S400DT...
  • Page 5 Chapter 1 Specifications HAPTER PECIFICATIONS CL-S400DT...
  • Page 6 Chapter 1 Specifications CHAPTER 1 SPECIFICATIONS TABLE OF CONTENTS 1-1. General Specifications ...................... 1-3 1-2. Printable Area ........................1-7 1-3. Printing Position Accuracy ....................1-8 1-4. Adjustable Sensor......................1-9 CL-S400DT...

  • Page 7: General Specifications

    *2: If you wish to use other media, please contact the shop where you bought this item. *3: When a media pitch of less than 1 inch is used, activate the "Small Media Adjustment" setting in the "Page Setup". CL-S400DT...
  • Page 8 3. Proportional font CG Triumvirate Condensed Bold 4. True type™ rasterizer* *4: The OCR font may have a low recognition rate according to the reader. *5: It is equipped with UFST and TrueType rasterizer that are licensed from Monotype Imaging, Inc. CL-S400DT...
  • Page 9 LCD and LED (POWER, Error) Buzzer Alarms, errors, etc. Operating panel keys PAUSE, FEED, STOP, MODE Head-up detection Detects head open. sensor Power switch Turns power on and off. ® *6: “PC866U Ukraina” is available for Datamax emulation only. CL-S400DT...
  • Page 10 Approx. 8.1 (W) X 8.6 (D) X 5.9 (H) inches Weight Approx. 3.0 kg (6.6 lb.) Accessories Test label media, CD-ROM (User's Manual), Quick Start Guide, Power cord, “Shaft, Paper”, “Flange, Paper Wide” Option Auto-cutter unit, Peeler unit, IEEE1284 Parallel I/F board, Ethernet I/F board CL-S400DT...

  • Page 11: Printable Area

    2.5 mm (0.10") width on the left side and 11.5 mm (0.45") width on the right side. The left side unprintable area applies for any size media. Media guides Maximum media width: 118 mm (4.65") Unprintable area Printable area 104.0 mm (4.09”) 11.5 mm (0.45") 2.5 mm (0.10") Reference edge Direction of media feed CL-S400DT...

  • Page 12: Printing Position Accuracy

    *2: Deviation of vertical positioning when printing position is set to 0. *3: Deviation of horizontal positioning when printing position is set to 0. *4: Deviation of vertical printing position when 100 mm is specified from the printing start position. CL-S400DT...

  • Page 13: Adjustable Sensor

    : Lower sensor Lower sensor: (Light emitter) 2 to 59 mm (0.05 to 2.32") 59 mm (2.32") Media (Factory default) Printable area 104.0 mm (4.09") 11.5 mm 2.5 mm (0.45") (0.10") Maximum media width: 118 mm (4.65") Direction of media feed CL-S400DT...
  • Page 14 Chapter 2 Operating Principles HAPTER PERATING RINCIPLES CL-S400DT...

  • Page 15: Table Of Contents

    2-2-5. Other circuits ...................... 2-23 Regulator circuits..................2-23 Reset circuit....................2-24 Clock circuit ....................2-24 Operation panel circuit................2-25 USB I/F control circuit................2-26 RS232C I/F circuit ..................2-26 Optional I/F circuit..................2-27 2-3. Operation Panel......................2-28 2-3-1. Normal operation mode..................2-28 CL-S400DT...
  • Page 16 2-4-2. USB Interface..................... 2-48 Specifications..................... 2-48 Signal line and pin arrangement..............2-48 2-4-3. Parallel Interface (Option) .................. 2-48 Specifications..................... 2-48 Signal line and pin assignment..............2-49 Parallel port status signals when an error occurs ........2-49 Compatible timing specification ..............2-50 CL-S400DT...

  • Page 17: Operation Of Each Mechanism

    This is a thermal head consisting of a head driver and thermal elements. Used to print on media by heating the thermal elements. It incorporates two thermistors to detect the temperature of “SA2 Head”. SA Main PCB Controls entire printer system. CL-S400DT...

  • Page 18: Media Feed Mechanism

    When the “Unit, Motor” turns clockwise, media is fed backwards. One step of the “Unit, Motor” feeds media by 1/16 mm (0.0025"). SA2 Head Thermal elements SA2 Platen Media Gear Idle Unit, Motor Gear Reduction 2 Gear Reduction 1 CL-S400DT...

  • Page 19: Media Detection Mechanism

    From the difference in output of the phototransistor, the CPU on the “SA Main PCB” can distinguish between the liner part and label part so that it can detect the leading edge of label. Also, media end can also be detected from the difference in output of the phototransistor. CL-S400DT...

  • Page 20: Detecting Black Marks On Tag

    (4) Controlling the amount of light emitted from the light emitter The amount of light emitted from the light emitter is well controlled according to the selected sensor by the Media sensor menu (“See through” or “Reflective”) for label, U-shaped notch, black mark or continuous media. CL-S400DT...

  • Page 21: Print Head Up/Down Detection Mechanism

    The CPU on the “SA Main PCB” detects up or down position of the head block by sensing the output of the “SA2 Head Up SW”. Head block “Up” position Head Block Head block “Down” position SA Head Up SW SA Head Up SW CL-S400DT...

  • Page 22: Head Balance Adjustment Mechanism

    Factory default: The media width adjustment dial is set to “9”. (Media width adjustment dial) Cam Adjust Head Spring [Narrow media] Weak Spring Head L (Fixed) SA2 Head Plate Adjust Spring Holder Spring Head R Media (Narrow) SA2 Platen (Movable) [Wide media] Strong Media (Wide) CL-S400DT...

  • Page 23: Media Thickness Adjustment Mechanism

    “SA2 Platen”, viewing from the right side of the “SA2 Platen”. [Thick media (toward dial No. 9)] (Media thickness adjustment dial) Cam Adjust Head Angle SA Plate Holder Head Supporting point SA2 Head Media SA2 Platen Thermal element 2-10 CL-S400DT...
  • Page 24 * Factory default: The Media thickness adjustment dial is set to “1”. [Thin media (toward dial No. 0)] (Media thickness adjustment dial) Cam Adjust Head Angle SA Plate Holder Head Supporting point SA2 Head Media SA2 Platen Thermal element 2-11 CL-S400DT...

  • Page 25: Operation Of Control Parts

    Thermal Head Temp. Sensor [SA2 Head] S-DRAM (128Mbits) Motor Temp. Sensor [SA Motor] FPGA Operation Panel (LCD/SWx4/LEDx2) EP2C5F256C8N [SA LCD PCB] SA2 Head Stepping Motor Unit, Motor Driver (Option) I/F Board IEEE1284 Ethernet I/F (Standard type) Ethernet I/F (Multi-function type) 2-12 CL-S400DT...

  • Page 26: Ac Inlet & Power Switch/Filter & Power Supply Section

    This is a panel used to indicate the operating status of the printer and to set specifications. It consists of 4 keys, 1 LED (Green/Red) and 1 LCD. (4) Thermal print head (SA2 Head) The thermal print head has the following thermal elements. It also has the print head driver circuit. • 864 dots 2-13 CL-S400DT...

  • Page 27: Sensors

    Centronics Compatible mode, NIBBLE mode and ECP mode. Parallel I/F, serial I/F, or USB I/F is automatically selected when data is received. (10) Ethernet Board (Option) This is a circuit which supports Ethernet protocol. LAN connection is possible. 2-14 CL-S400DT...

  • Page 28: Memory Map

    Command Buffer (128K bytes) Others *: 16K bytes for each I/F (USB, IEEE1284, Serial, USB for optional I/F) 0FFFFFF 8000000 FPGA 80FFFFF F800000 USB Controller (For optional I/F) F8FFFFF FFFB000 Data RAM (Built-in CPU) FFFEFFF FFFF000 I/O (Built-in CPU) FFFFFFF 2-15 CL-S400DT...

  • Page 29: Sensors

    Head Up Sensor R105 (SA Head Up SW] R106 HDUSW SWOUT PDH3 C107 Head Up: High Head Down: Low [SA Main PCB] Head block “Up” position Head Block Head block “Down” position SA Head Up SW SA Head Up SW 2-16 CL-S400DT...

  • Page 30: Adjustable Sensor

    When the light falls on the black mark, no light is reflected by the black mark, the photodetector turns OFF, and pin 6 (REFMON1) of CPU (U1A) goes “Low”. When media runs out, the light is not also reflected and pin 6 (REFMON1) of CPU goes “Low”. 2-17 CL-S400DT...
  • Page 31 TSNSCTL1 B4-34 TSNSCTL0 B4-33 DTC114EM Media +3.3V Reflective sensor output sensing terminal U16A REFMON1 ANI1 C100 BA2904 [SA Adjust Sensor L] FPGA Reflective Sensor DTC114EM RSNSCTL1 B3-38 RSNSCTL0 B3-37 DTC114EM D/A Converter BSNSLED0 From U1A CPU 2SC5658 BH2220 2-18 CL-S400DT...

  • Page 32: Head Temperature Sensor

    “SA2 Head” and “Unit, Motor”. In this case, the POWER LED blinks in red and the LCD displays "Alarm System Fail". Turn OFF the printer once and then turn it ON to recover from the error status. 2-19 CL-S400DT...

  • Page 33: Drivers

    MCH6342 OUT1A VBB1 VBB2 From OUT1B PFMD1 PFMD2 OUT2A FPGA From PFCLK STEP U1A CPU OUT2B PFDIR Motor drive current setting PFENB ENABLE PFPS SLEEP D/A Converter PFMOTCU From A4984SES-T PFOFF From BH2220 [SA Main PCB] FPGA DTC114EM 2-20 CL-S400DT...

  • Page 34: Head Control Circuit

    Head supply voltage ON/OFF R123 VHDMON ANI4 R125 VHDON B3-43 Head power supply monitoring (not used) R127 2SJ661 +3.3V DTC114EM +3.3V 1,2,15,16 nHDSTB nHDSTB 3,11 B3-40 nHDLAT SA2 Head nHDLAT B3-41 HDCLK HDCLK B3-39 B3-26 6,7,8,9 [SA Main PCB] 2-21 CL-S400DT...
  • Page 35 (3) Buzzer driver This circuit drives the buzzer. To sound the buzzer, the CPU outputs a pulse from pin 171 (BUZZER). The transistor Q24 turns ON and OFF, and the buzzer sounds. +24V R128 BUZZER DTC114EM [SA Main PCB] 2-22 CL-S400DT...

  • Page 36: Other Circuits

    H: Normal mode PWRSAVE +5V Regulator DTC115EM DC-DC Converter +24V From SA Power Supply VIN LX C108 C109 R1243S100C +1.5V/+1.2V Regulator [SA Main PCB] DC-DC Converter DC-DC Converter +3.3V VIN LX VIN1 +1.5V +1.2V VIN2 R1243S100C +3.3V Regulator PAM2306APCB +3.3V 2-23 CL-S400DT...

  • Page 37: Reset Circuit

    UCLKON signal (pin 77) is output from the CPU to X2. 16MHz Bus Clock System Clock (64MHz) (16MHz) FPGA PCD1 88 B3-6 BUSCLK +3.3V System Clock USBCLK Clock for USB BUSCLK (48MHz) +3.3V STBY Internal Clock DSC8002DI1 (48MHz) (128MHz) PCT7 UCLKON [SA Main PCB] 2-24 CL-S400DT...

  • Page 38: Operation Panel Circuit

    From LCDCD U11 (FPGA) LCDRST nLCDCS BKL-W BKL-O SW302 PAUSE From/to SW301 U1A (CPU) FEED SW303 STOP SW304 LED-G MENU LED-R Q302 Power LED DTC114EM Green (Power) Red (Error) Q303 D301 DTC114EM [SA Main PCB] [SA LCD PCB] 2-25 CL-S400DT...

  • Page 39: Usb I/F Control Circuit

    TXD1 T1IN T1OUT DTR1 T2OUT T2IN RXD1 R1OUT R1IN RS232C I/F DSR1 R2OUT R2IN nRESET SHDN INIT ICL3222EIVZ To/From +3.3V Receiver/Transmitter RTS1 T1IN T1OUT T2OUT T2IN CTS1 R1IN R1OUT RS_INIT R2OUT R2IN nRESET [SA Main PCB] SHDN ICL3222EIVZ 2-26 CL-S400DT...

  • Page 40: Optional I/F Circuit

    RXD0/SI0, SCK0, IFRESET 25-27 To/From U1A CPU U1A CPU UB2INTP0 R144 INT0 TrON UB2INTP1 VBUS INT1/SOF To/From Vbus UBREQ USB_D- Dreq0 U11 FPGA UBACK USB_D+ Dack0 nUSBCS LLDQM/nLLBE LUDQM/nLUBE HWR/BYTE USBCLK +3.3V [SA Main PCB] 1,12, nRESET 16,35 M66291GP 2-27 CL-S400DT...

  • Page 41: Operation Panel

    Cutting operation is done for each feed. When an optional peeler unit is installed, media is fed to the peeling position. Note that the [FEED] key does not work if media is already set in the peeling position. 2-28 CL-S400DT...
  • Page 42 Once you have set to “Repeat Last One”, pressing the [MENU] key reissues the last label. However, in this case, to enter menu setup mode, you need to press and hold the [MENU] key for more than 4 seconds. 2-29 CL-S400DT...

  • Page 43: Test Mode

    The printer enters self print mode for self test printing and then stops after printing. 3. To repeat self test printing, press the [FEED] key again. To exit from self print mode: Turn off the power. Media feed direction 2-30 CL-S400DT...

  • Page 44: Hex Dump Mode

    02 40 30 31 30 30 0D 02 60 30 30 32 30 0D 02 4C .M0100..c0020..L 44 31 31 0D 31 30 30 30 30 30 30 30 30 30 31 30 D11.100000000010 30 30 31 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 0010123456789:;< 2-31 CL-S400DT...

  • Page 45: Menu List Print Mode

    To exit from menu list print mode: In Main menu, press the [PAUSE] ( ) key. Machine Information Note: Model Number : CL-S400DT Citizen continually enhances its Boot Version : **** printers with new options and ROM Version : ******** settings based on our customer’s...
  • Page 46 RS-232C Parity : None RS-232C Length : 8 bit RS-232C Stop bit : 1 bit RS-232C X-ON : Yes IEEE1284 : On USB Device Class : Printer USB VCOM Protocol : Auto ® <Example of Datamax emulation selected> 2-33 CL-S400DT...

  • Page 47: Factory/Service Mode

    Returns to previous item, or the value is incremented/changed. [MENU] ( ) Goes to the next item, or the value is decremented/changed. [PAUSE] ( ) Resets the printer, or exits from the current menu. [STOP] ( ) Acts as the Enter key. 2-34 CL-S400DT...
  • Page 48 Head Check Init Refl Sen Page Setup ROM Check System Setup Print Prefer After Print Service Counter Interface Machine Info Test Mode Global Config To exit from Factory/Service mode: In main menu, press the [PAUSE] ( ) key. 2-35 CL-S400DT...

  • Page 49: How To Print The Factory Mode Settings Menus

    7) Press the [STOP] ( ) key to print the configuration settings. The current factory mode setting values are printed. To exit from menu mode: Press the [PAUSE] ( ) key until the printer exits from the “Test Mode” main menu. 2-36 CL-S400DT...
  • Page 50 Chapter 2 Operating Principles 2-3. Operation Panel [Print sample] Note: Machine Information Citizen continually enhances its Model Number : CL-S400DT printers with new options and Boot Version : **** settings based on our customer’s ROM Version : ******** ROM Date (DD//MM//YY) : **/**/** requests.
  • Page 51 RS-232C Parity : None RS-232C Length : 8 bit RS-232C Stop bit : 1 bit RS-232C X-ON : Yes IEEE1284 : On USB Device Class : Printer USB VCOM Protocol : Auto ® <Example of Datamax emulation selected> 2-38 CL-S400DT...

  • Page 52: How To Change The Settings In Factory Mode

    (-32 to +32 mm, -1.26 to +1.26”) (Optional) Mach Hor Pos -16 to +32dot Electrically shifts the head position to the right or [Machine Horizontal Pos.] (+008 dot) left side. (-2 to +4 mm, -0.08 to +0.16”) 2-39 CL-S400DT...
  • Page 53 Designates the end dot for head check. [Head Check Stop Pos.] (Dot 848) Parallel ErrOut On/Off Select whether to activate the Fault signal of [Parallel Error Output] (On) parallel interface at the time of error occurrence or not. 2-40 CL-S400DT...
  • Page 54 0 to 9999999 Designates the length where a head cleaning [Head Clean Message] (0 m) message is to be printed. Print Prefer Darkness/Speed To put the priority on printing density or printing [Printer Preference] (Darkness) speed is selectable. 2-41 CL-S400DT...

  • Page 55: Setting Submenu In Factory Mode

    7. Press the [PAUSE] ( ) key to return to “Factory Setup” menu. (To set other submenu, repeat from Step 2.) 8. Press the [PAUSE] ( ) key once again. The changed value is stored in the printer and the printer is turned OFF and then ON for normal operation. 2-42 CL-S400DT...

  • Page 56: How To Operate Submenus In Service Mode

    To clear the service counter, press the [ ] ( ) key. Cut Counter Displays the cut count since you reset it last. Example: Count STOP To clear the cut counter, press the [ ] ( ) key. 2-43 CL-S400DT...

  • Page 57: Submenu Operation In Service Mode

    [When “Motor Feed” is selected] Feed PASS Back 0000dots 8. Press the [PAUSE] ( ) key to return to “Service Mode” main menu. 9. To check other submenu, repeat from Step 3. Otherwise, turn off the power to terminate Factory/Service mode. 2-44 CL-S400DT...
  • Page 58 3) Press the [STOP] ( ) key to perform resetting. 7. Press the [PAUSE] ( ) key to return to “Service Mode” main menu. 8. To check other submenu, repeat from Step 3. Otherwise, turn off the power to terminate Factory/Service mode. 2-45 CL-S400DT...

  • Page 59: Interface

    SGND Signal ground Signal grounding line 8-13 ------ Not used (Factory use only ) 15-19 ------ Not used Data Terminal Signal line that is active when the printer can Ready interface with the host 21-25 ------ Not used 2-46 CL-S400DT...

  • Page 60: Protocol

    DTR turns to "Low (Busy)" in the following conditions: • When the printer is in off-line mode. • When the remaining buffer is less than 128 bytes. (After DTR becomes "Low", DTR retains "Low" until the remaining buffer becomes 1024 bytes or more.) 2-47 CL-S400DT...

  • Page 61: Usb Interface

    Nibble mode is usually combined with Compatible mode to create a complete bi-directional channel. ECP mode ECP mode permits bi-directional asynchronous data transmission, and by means of interlock handshake, it does not require the timing necessary with Compatible mode. Signal level IEEE1284 compatible 2-48 CL-S400DT...

  • Page 62: Signal Line And Pin Assignment

    L → H Error other than paper end Busy: L → unchanged • Head open PError: H → L • Other Select: H → L Fault: Conditions for Busy • Receive buffer full • Data being read • Error 2-49 CL-S400DT...

  • Page 63: Compatible Timing Specification

    [When power is on] (Timing to go on-line) Power On Reset BUSY SELECT [While receiving data] Data0~7 Strobe BUSY 0.5µs 0.5µs 0.5µs Note: BUSY goes “High” at the falling edge of Strobe, and data is latched at the leading edge of Strobe. 2-50 CL-S400DT...
  • Page 64 If the PRIME signal width is 10 sec or less, it is not accepted. µ BUSY goes to “High” when the PRIME signal is accepted by the printer. [Timing relationship between BUSY and ACK] Center BUSY About 2 µsec 2-51 CL-S400DT...
  • Page 65 Chapter 3 Disassembly and Maintenance HAPTER ISASSEMBLY AND AINTENANCE CL-S400DT...
  • Page 66 3-7-1. Transparent/Reflective Sensor Position Adjustment ........3-27 Sensor position adjustment (Factory mode) ........... 3-27 Sensor sensitivity adjustment (Factory mode) ........3-27 (2-1) “Init Thru Sen” sensitivity adjustment......... 3-28 (2-2) Init Refl Sen sensitivity adjustment ..........3-29 3-7-2. “Holder Paper 127” Position Adjustment ............3-31 CL-S400DT...

  • Page 67: Maintenance Precautions

    - Do not put the printed circuit boards directly on the printer or on the floor. - When disassembling or reassembling, check wires for any damage and do not pinch or damage them. Also, run wires as they were. CL-S400DT...

  • Page 68: Cleaning

    • HANARL UD-24 (by Kanto Chemical Co., Ltd.) • SANKOL ZZG-1001 (by SANKEIKAGAKU Co., Ltd.) 3-3-3. Quantity of lubricant Small quantity....... About 1 drop. Ordinary quantity ..... About 3 to 4 drops. About 0.2 mm thick for grease. Large quantity....Apply sufficiently. CL-S400DT...

  • Page 69: Maintenance Tools List

    “SA Main PCB”, “Unit, Motor”, etc. Maintenance Tools List Name Q'ty Description Phillips Screwdriver Bit: #0, #1, #2 Flat-blade Screwdriver 4.3 mm width Box wrench Box size: 5 mm Tweezers Round Nose Pliers Cutting Nippers Volt-ohm Meter Scale For installing the “Holder Paper 127” CL-S400DT...

  • Page 70: Quick Detachment Of Major Parts

    3. Remove 1 screw ((BH (N), M3x6 (NI)) ()and detach the “SA2 Head” (). 4. Disconnect the connector from the “SA2 Head” (). SA Cover Stopper, Guide Paper U SA2 Head BH (N), M3x6 (NI) SA, Guide Paper U Knob Cover Open CL-S400DT...

  • Page 71: Sa2 Platen

    1. Press down the “Knob Cover Open” and open the “SA Cover”. 2. Pull the “SA2 Platen” upward to remove it. SA Cover SA2 Platen Knob Cover Open Note on reassembling: • After reassembling the “SA2 Platen”, be sure that is correctly assembled. CL-S400DT...

  • Page 72: Sa Main Pcb

    • Match the color of the connectors on the PCB side and the cable side e.g.: Connect the blue cable connector to the blue connector of the “SA Main PCB”. * Even if a connector is mistakenly connected, the circuitry is not damaged. CL-S400DT...

  • Page 73: Disassembly, Reassembly And Lubrication

    * Open the claw before removing the “Cap Paper Holder”. Cap Paper Holder Claw Note on reassembling: • Assemble the “Holder Paper 127” so that it is aligned with the paper guides of the main body. Refer to “3-7-2 “Holder Paper 127” Position Adjustment” for adjustment procedure. CL-S400DT...

  • Page 74: Sa Cover And Sa Lcd Pcb

    4. Remove 4 screws (NO.0, PHT (PT, BK), M2x5)) and Sheet Ope-Pane detach the “SA LCD PCB”. 5. Peel off the “Sheet Ope-Pane”, “Cover LCD”, “Logo, CITIZEN” and “Label Adjust Cam” from the “Cover”. Cover LCD Logo, CITIZEN Label Adjust Cam...

  • Page 75: Case

    When assembling the “Case”, leave the “SA2 Cover Frame” opened and insert the “Case” into the main body. In the course of “Case” insertion, lower the “SA2 Cover Frame” to allow further “Case” insertion. Then, fully insert the “Case” after checking that no cable is caught by the “Case”. 3-11 CL-S400DT...

  • Page 76: Disconnecting "Sa Mechanism Frame" From "Sa2 Base Frame

    Match the color of the connectors on the PCB side and the cable side. e.g. Connect the blue cable connector to the blue connector of the PCB. * Even if a connector is mistakenly connected, the circuitry is not damaged. 3-12 CL-S400DT...

  • Page 77: Sa Main Pcb

    • When assembling, align the positioning holes “A” (2 places) of the “SA Main PCB” with 2 bosses of the main body. (Refer to the above figure.) • Correctly connect the “Frame Bottom” to the main body referring to the enlarged views. 3-13 CL-S400DT...

  • Page 78: Sa Power Supply

    Washer, EXT, T (N), 4 FH, M3x6 SA Power SW Cable PRC00001 PAC60006 SA Power Cable BH (N), M3x6 (NI) BH (N), M3x6 (NI) BH (N), M3x6 (NI) BH (N), M3x6 (NI) SA Power Supply Sheet Insulation Frame Power PCB Frame Base 3-14 CL-S400DT...

  • Page 79: Disassembly Of "Sa Mechanism Frame

    • Insert the long end of the “Spring Pop Up” into the hole of the “SA2 Cover Frame” as shown in the enlarged view. • Securely hook the other end (shorter end) of the “Spring Pop Up” () on the concave portion of the “SA2 Main Frame” as shown in the enlarged view. 3-15 CL-S400DT...

  • Page 80: Sa2 Platen And Unit, Motor

    Gear Reduction 1 (SANKOL ZZG-1001) Note on reassembling: • When assembling, apply lubricant to the places marked with “ ”. 3 gear shafts: FLOIL G-311S Shaft of the “Unit, Motor” and surface of the “Gear Reduction 1”: SANKOL ZZG-1001 3-16 CL-S400DT...

  • Page 81: Sa Adjust Sensor L

    Guide Paper L Lever Adjust Sensor L Spring Leaf Guide Paper R NO.0 PHT (BT#1), M2x3 NO.0, PHT (PT, BK), M2x5 NO.0 PHT (BT #3), M1.7x7 SA Head Up SW Holder Cover Open SW BHT (PT), M3x6 SA2 Main Frame 3-17 CL-S400DT...
  • Page 82 1) Assemble it by reversing the disassembling procedure. 2) Referring to above figure, pass the cable (B) of the “SA Head Up SW” through the opening (B’) of the “SA2 Main Frame” and fix it on the hook. 3-18 CL-S400DT...
  • Page 83 First, slide the “Holder Sensor Adjust L” in the direction of the arrow until it stops. Next, position the “Sheet Adjust Sensor L Scale” so that its scale marking “0” is aligned with the arrow head of the “Holder Sensor Adjust L”, and then stick it. Sheet Adjust Sensor L Scale Holder Sensor Adjust L 3-19 CL-S400DT...

  • Page 84: Knob Cover Open And Frames

    SA Main Frame Spring Cover Lock Lever Frame Front Lever R Cover Lock E-Ring, 4 BH (N), M3x6 (NI) Knob Cover Open Cover Adjust Sensor L Lever Support Cover Open Spring Cover Open Knob BH (N), M3x6 (NI) 3-20 CL-S400DT...

  • Page 85: Sa Adjust Sensor U

    Pawl Adjust Sensor U Holder Adjust Sensor U SA Adjust Sensor U NO.0 PHT (BT#1), M2x3 Shaft Roller E-Ring, 2 Roller Guide Paper U Guide Paper U Sheet Head Insulation E-Ring, 2 Sheet Adjust Sensor U Label, Heat Caution-02 3-21 CL-S400DT...
  • Page 86 Next, position the “Sheet Adjust Sensor U” so that its scale marking “0” is aligned with the arrow head of the “Holder Adjust Sensor U”, and then stick it. Holder Adjust Sensor U Sheet Adjust Sensor U 3-22 CL-S400DT...

  • Page 87: Sa2 Head

    XX-XXXXX XXX DBE SA2 Head SA2 Head XX-XXXXX XXX EBZ Note on reassembling: • When assembling the “SA2 Head”, align the 2 holes of the “SA2 Head” with the bosses to engage the “SA2 Head” with the “SA2 Cover Frame”. 3-23 CL-S400DT...

  • Page 88: Cam Adjust Head Spring And Cam Adjust Head Angle

    9. Pull out the “Spacer Adjust Head Angle” from the “SA Plate Holder Head” block, remove 2 screws (BH (N), M3x6 (NI)), and detach the “Plate Label Protect” from the “SA Plate Holder Head”. 10. Remove the “Spring Head L” and “Spring Head R”. 3-24 CL-S400DT...
  • Page 89 BH (N), M3x6 (NI) Stopper Guide Paper U Spring Head R Spacer Adjust Spring Spacer Adjust Head Angle Plate Adjust Spring Holder SA Plate Holder Head Plate Label Protect BH (N), M3x6 (NI) "SA Plate Holder Head" Block 3-25 CL-S400DT...
  • Page 90 Cam part of the “Cam Adjust Head Spring” and the “Cam Adjust Head Angle”: FLOIL G-311S Cam Adjust Head Spring Cam Adjuste Head Angle (FLOIL G-311S) (FLOIL G-311S) • Tighten the “SA Head Cable” with a new “Wire Tie” as it was. 3-26 CL-S400DT...

  • Page 91: Adjustments

    - SA Adjust Sensor U (Transparent sensor) Init Thru Sen (2-1) - SA Main PCB - SA Adjust Sensor L (Reflective sensor) Init Refl Sen (2-2) - SA Main PCB Refer to “2-3-3. Factory/Service mode” in Chapter 2 for menu operation in Factory mode. 3-27 CL-S400DT...

  • Page 92: Init Thru Sen" Sensitivity Adjustment

    6. Press the [STOP] ( ) key to execute adjustment. Adjustment starts and the following screen is display. Now !! Executing 7. Be sure that adjustment is successfully completed and the following screen is displayed. (The value “123” is an example.) Finished DAC 123 3-28 CL-S400DT...

  • Page 93: Init Refl Sen Sensitivity Adjustment

    “SA Adjust Sensor L” (reflective sensor). In this case, keep away the black mark from the “SA Adjust Sensor L”. 3. Close the “SA Cover”. Procedure: 1. Enter Factory/Service mode by turning on the power while pressing and holding the [MENU], [FEED] and [STOP] keys. “Factory Setup” main menu appears. 3-29 CL-S400DT...
  • Page 94 9. Press the [PAUSE] ( ) key to return to “Factory Setup” menu. 10. Press the [PAUSE] ( ) key once again. The changed value is saved in the printer and the printer is turned OFF and then ON for normal operation. 3-30 CL-S400DT...

  • Page 95: Holder Paper 127" Position Adjustment

    2. Push a scale against 2 paper guides of the main body (, ). 3. Align the inner surface of the left side “Holder Paper 127” with the scale, and fix the “Holder Paper 127” with 2 screws. SA Cover Holder Paper 127 Screws Paper guides Media edge Knob Cover Open 3-31 CL-S400DT...
  • Page 96 Chapter 4 Troubleshooting HAPTER ROUBLESHOOTING CL-S400DT...
  • Page 97 4-2. Troubleshooting ......................4-5 4-2-1. Problems in Powering Up the Printer ..............4-5 4-2-2. Media-feed Problems ..................4-6 4-2-3. Problems in Printing ................... 4-7 4-2-4. Sensor Problems....................4-9 4-2-5. Operation Panel Problems ................. 4-11 4-2-6. Connector Location .................... 4-12 CL-S400DT...

  • Page 98: Error Message And Corrective Actions

    [MENU], [FEED] and [STOP] keys. Then perform sensor adjustment. For details, refer to 2-3-3 “(3) How to change the settings in Factory mode” in Chapter 2. Paper jam Flashing in red Error • Remove the jammed media. Paper Jam CL-S400DT...
  • Page 99 Error • Power to the “SA2 Head” and “Unit, Motor” is System Fail shut off. (To resume, turn the power OFF and then ON.) Auto-cutter abnormality (foreign object etc.) (Option) Flashing in red Error • Jamming, etc. Cutter Fail CL-S400DT...

  • Page 100: Troubleshooting

    If it is not connected or it is inserted upside down, no LED lights up and nothing appears on the LCD even if the power is turned ON. 4. Failure in the power supply circuit of the 4. Replace the “SA Power Supply”. “SA Power Supply”. CL-S400DT...

  • Page 101: Media-Feed Problems

    1. Set media correctly. 2. Is the media being used within 2. Use media within manufacturer's manufacturer's specifications? specifications. 3. Check the media feed mechanism and 3. Remove dust or foreign matter. media path for dust or other foreign matter. CL-S400DT...

  • Page 102: Problems In Printing

    [SA Main PCB] 8. “SA2 Head” is broken. 8. Replace the “SA2 Head” . 9. Failure in the head driver circuit. 9. Replace the “SA2 Head” . 10. Failure in the control circuit. 10. Replace the “SA Main PCB”. CL-S400DT...
  • Page 103 Printing is slantwise 1. Is the left side “Holder Paper 127” 1. Align the inner surface of the correctly installed? “Holder Paper 127” with the paper guides of the main body. Refer to “3-7-2. “Holder Paper 127” Position Adjustment”. CL-S400DT...

  • Page 104: Sensor Problems

    Refer to “Sensor Adjustment detected. for user (Transparent Sensor/ Reflective Sensor)” on page 4-10. 4. Is the connector of the “SA Adjust 4. Connect it firmly. Sensor L” firmly connected to the “SA Main PCB” (J7)? CL-S400DT...
  • Page 105 If adjustment stops abnormally (adjustment impossible), the POWER LED flashes in red and "Failed" is displayed on the LCD. 4. Press the [STOP] key. Then the printer turns OFF and then ON again, and enters the normal operation. 4-10 CL-S400DT...

  • Page 106: Operation Panel Problems

    4. Is the FPC firmly connected between 4. Connect it firmly. the “SA LCD PCB” (J302) and the LCD? 5. Failure in the “SA LCD PCB”. 5. Replace the “SA LCD PCB”. 6. Failure in the control circuit. 6. Replace the “SA Main PCB”. 4-11 CL-S400DT...

  • Page 107: Connector Location

    SA Main PCB (Component side) To Unit, Motor (J17) To SA2 Head Serial I/F To SA Adjust Sensor U To SA Adjust Sensor L SA Main PCB (Dip side) [SA LCD PCB] SA LCD PCB (Dip side) J302 J301 4-12 CL-S400DT...
  • Page 108 Chapter 5 Parts Lists HAPTER ARTS ISTS CL-S400DT...
  • Page 109 Parts List & Location for SA Guide Paper L..........5-21 Drawing No. 7 Parts List & Location for SA2 Main Frame ..........5-25 Drawing No. 8 Parts List & Location for SA Cover ............. 5-28 Drawing No. 9 Parts List & Location for Accessories ............5-31 CL-S400DT...

  • Page 110: Recommended Spare Parts List

    Chapter 5 Parts Lists CL-S400DT Recommended Spare Parts List Revision Up List Sheet No. Rev. No. Date July. 12, 2011 CL-S400DT...
  • Page 111 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: Recommended Spare Parts List Sheet No. 1/1 Rev. No. 0 Item Q'ty/ Maint. Class Remarks Location Part No. Part Name Unit Worn Casual SA2 Platen PPK90002-0 3-4-1 SA Power Supply (100V)

  • Page 112: Drawing No. 1

    Chapter 5 Parts Lists CL-S400DT Drawing No. 1 Parts List & Location for General Assembly Revision Up List Sheet No. Rev. No. Date July. 12, 2011 CL-S400DT...
  • Page 113 Chapter 5 Parts Lists DRAWING NO. 1 General Assembly (Rev. 0) (DRAW NO.8) 10-1 10-2 (DRAW NO.2) CL-S400DT...
  • Page 114 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: General Assembly Sheet No. 1/1 Drawing No. 1 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit SA Cover (Ref. Drawing No. 8) SA Mechanism (Ref. Drawing No. 2)

  • Page 115: Drawing No

    Chapter 5 Parts Lists CL-S400DT Drawing No. 2 Parts List & Location for SA Mechanism Revision Up List Sheet No. Rev. No. Date July. 12, 2011 CL-S400DT...
  • Page 116 Chapter 5 Parts Lists DRAWING NO. 2 SA Mechanism (Rev. 0) (DRAW NO.4) (DRAW NO.5) (DRAW NO.6) (DRAW NO.7) (DRAW NO.3) PRC00001 PAC60006 CL-S400DT...
  • Page 117 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: SA Mechanism Sheet No. 1/1 Drawing No. 2 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit SA2 Cover Frame (Ref. Drawing No. 4) SA Guide Paper U (Ref. Drawing No. 5) SA Guide Paper L (Ref.

  • Page 118: Drawing No

    Chapter 5 Parts Lists CL-S400DT Drawing No. 3 Parts List & Location for SA2 Base Frame Revision Up List Sheet No. Rev. No. Date July. 12, 2011 5-11 CL-S400DT...
  • Page 119 Chapter 5 Parts Lists DRAWING NO. 3 SA2 Base Frame (Rev. 0) 5-12 CL-S400DT...
  • Page 120 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: SA2 Base Frame Sheet No. 1/1 Drawing No. 3 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Cover Power PCB PBC80001-0 Frame Base PAC60005-0 SA Power SW Cable...

  • Page 121: Drawing No. 4

    Chapter 5 Parts Lists CL-S400DT Drawing No. 4 Parts List & Location for SA2 Cover Frame Revision Up List Sheet No. Rev. No. Date July. 12, 2011 July. 12, 2011 5-14 CL-S400DT...
  • Page 122 Chapter 5 Parts Lists DRAWING NO. 4 SA2 Cover Frame (Rev. 0) Apply grease (Floil G-311S) to the places marked with 15-1 15-2 5-15 CL-S400DT...
  • Page 123 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: SA2 Cover Frame Sheet No. 1/2 Drawing No. 4 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Stopper Cover Open PBA60002-0 SA Cover Frame PPC60002-0 Cam Adjust Head Angle...
  • Page 124 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: SA2 Cover Frame Sheet No. 2/2 Drawing No. 4 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit 4-20 Screw, PH, M3.0X10 E00130-100F Screw, BHT(PT), M2.0X5 E15720-050F Screw, BH (N), M3.0X6 (NI)

  • Page 125: Drawing No

    Chapter 5 Parts Lists CL-S400DT Drawing No. 5 Parts List & Location for SA Guide Paper U Revision Up List Sheet No. Rev. No. Date July. 12, 2011 5-18 CL-S400DT...
  • Page 126 Chapter 5 Parts Lists DRAWING NO. 5 SA Guide Paper U (Rev. 0) 5-19 CL-S400DT...
  • Page 127 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE:SA Guide Paper U Sheet No. 1/1 Drawing No. 5 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Cover Adjust Sensor U PBC80004-0 Pawl Adjust Sensor U PBA60003-0 Holder Adjust Sensor U...

  • Page 128: Drawing No

    Chapter 5 Parts Lists CL-S400DT Drawing No. 6 Parts List & Location for SA Guide Paper L Revision Up List Sheet No. Rev. No. Date July. 12, 2011 July. 12, 2011 5-21 CL-S400DT...
  • Page 129 Chapter 5 Parts Lists DRAWING NO. 6 SA Guide Paper L (Rev. 0) Apply grease (UD-24) to the place marked with . (To the groove where “9” slides along.) (UD-24) 5-22 CL-S400DT...
  • Page 130 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: SA Guide Paper L Sheet No. 1/2 Drawing No. 6 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Sheet Adjust Sensor L PRC80001-0 Key Adjust Sensor L PBA60004-0...
  • Page 131 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: SA Guide Paper L Sheet No. 2/2 Drawing No. 6 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit 6-21 Screw, NO.0 PHT(BT#1), M2.0X3 E11920-030F 5-24 CL-S400DT...

  • Page 132: Drawing No

    Chapter 5 Parts Lists CL-S400DT Drawing No. 7 Parts List & Location for SA2 Main Frame Revision Up List Sheet No. Rev. No. Date July. 12, 2011 5-25 CL-S400DT...
  • Page 133 Chapter 5 Parts Lists DRAWING NO. 7 SA2 Main Frame (Rev. 0) Apply grease to the place (ZZG-1001) marked with FLOIL G-311S SANKOL ZZG-1001 [Rear View] (G311S) (G311S) (G311S) (G311S) (ZZG-1001) 5-26 CL-S400DT...
  • Page 134 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: SA2 Main Frame Sheet No. 1/1 Drawing No. 7 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Cover Cable PBC80002-0 Gear Reduction 2 PBF00002-0 Gear Reduction 1 PBF00001-0...

  • Page 135: Drawing No

    Chapter 5 Parts Lists CL-S400DT Drawing No. 8 Parts List & Location for SA Cover Revision Up List Sheet No. Rev. No. Date July. 12, 2011 5-28 CL-S400DT...
  • Page 136 Chapter 5 Parts Lists DRAWING NO. 8 SA Cover (Rev. 0) 5-29 CL-S400DT...
  • Page 137 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: SA Coverr Sheet No. 1/1 Drawing No. 8 Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit 8-1-1 Sheet Ope-Pane PRN30001-0 For CSA/CSE -1-2 Sheet Ope-Pane (CHN) PRN30004-0 For China...

  • Page 138: Drawing No

    Chapter 5 Parts Lists CL-S400DT Drawing No. 9 Parts List & Location for Accessories Revision Up List Sheet No. Rev. No. Date July. 12, 2011 5-31 CL-S400DT...
  • Page 139 Chapter 5 Parts Lists DRAWING NO. 9 Accessories (Rev. 0) 5-32 CL-S400DT...
  • Page 140 Chapter 5 Parts Lists PARTS LIST for CL-S400DT TITLE: Accessories Sheet No. 1/1 Drawing No. - Rev. No. 0 Q'ty/ Location Part Name Part No. Remarks Unit Shaft, Paper JM79202-0 Flange, Paper Wide JM79201-0 -3-1 CORD SET (UL/CSA) C6009-000# For CSA...
  • Page 141 Chapter 6 Circuit Diagrams HAPTER IRCUIT IAGRAMS CL-S400DT...
  • Page 142 SA Main PCB (10/11) [Power/Buzzer]..................6-12 SA Main PCB (11/11) [Interface] ....................6-13 SA LCD PCB..........................6-14 SA Adjust Sensor U PCB [Adjustable Sensor (Transparent Sensor] ........6-15 SA Adjust Sensor L PCB [Adjustable Sensor (Reflective Sensor)] .......... 6-16 CL-S400DT...

  • Page 143: Inter Connection

    Chapter 6 Circuit Diagrams Inter Connection t s i (For CSA, CSE) B (For China) l l u Title Inter Connection Diagram Size Number Revision Date: Sheet File: Drawn By: CL-S400DT...

  • Page 144: Sa Main Pcb (1,2/11) [Cpu-(1/2)]

    Chapter 6 Circuit Diagrams SA Main PCB (1,2/11) [CPU-(1/2)] Title MAIN PCB / CPU(1) (1,2/11) Size Number Revision PPS00001-0 PPS00001-0/PPS00024-0 Date: Sheet File: Drawn By: CL-S400DT...

  • Page 145: Sa Main Pcb (3/11) [Cpu-(2/2)/Dac]

    Chapter 6 Circuit Diagrams SA Main PCB (3/11) [CPU-(2/2)/DAC] Title MAIN PCB / CPU(2)/DAC (3/11) Size Number Revision PPS00001-0 PPS00001-0/PPS00024-0 Date: Sheet File: Drawn By: CL-S400DT...

  • Page 146: Sa Main Pcb (4/11) [Rom]

    Not mounted. Program ROM Address (PPS00001-0) For China Mounted. CPU Address ROM Address (PPS00024-0) (Not available) When 16M is used. When 32M is used. Title MAIN PCB / ROM (4/11) Size Number Revision PPS00001-0/PPS00024-0 PPS00001-0 Date: Sheet File: Drawn By: CL-S400DT...

  • Page 147: Sa Main Pcb (5/11) [Ram]

    Chapter 6 Circuit Diagrams SA Main PCB (5/11) [RAM] Title MAIN PCB / RAM (5/11) Size Number Revision PPS00001-0 PPS00001-0/PPS00024-0 Date: Sheet File: Drawn By: CL-S400DT...

  • Page 148: Sa Main Pcb (6/11) [Gate Array]

    Chapter 6 Circuit Diagrams SA Main PCB (6/11) [Gate Array] MAIN PCB / GateArray(C5) (6/11) PPS00001-0/PPS00024-0 CL-S400DT...

  • Page 149: Sa Main Pcb (7/11) [Head/Ope-Pane Control]

    Chapter 6 Circuit Diagrams SA Main PCB (7/11) [Head/Ope-pane Control] 100k 100k g i l g i l Title MAIN PCB / Head/OPE-PANE (7/11) Size Number Revision PPS00001-0 PPS00001-0/PPS00024-0 Date: Sheet File: Drawn By: CL-S400DT...

  • Page 150: Sa Main Pcb (8/11) ["Unit, Motor" Control]

    Chapter 6 Circuit Diagrams SA Main PCB (8/11) [“Unit, Motor” Control] r t I > > - > - Title MAIN PCB / Unit, Motor (8/11) Size Number Revision PPS00001-0/PPS00024-0 PPS00001-0 Date: Sheet File: Drawn By: 6-10 CL-S400DT...

  • Page 151: Sa Main Pcb (9/11) [Sensor/Option]

    BM SENSOR 1 (REF) White White BM SENSOR 2 (LED) BM SENSOR 2 (SNS) 100k Black 100k Title HEAD UP SENSOR 2 MAIN PCB / Sensor/Option (9/11) Blue Size Number Revision PPS00001-0/PPS00024-0 PPS00001-0 Date: Sheet File: Drawn By: 6-11 CL-S400DT...

  • Page 152: Sa Main Pcb (10/11) [Power/Buzzer]

    Chapter 6 Circuit Diagrams SA Main PCB (10/11) [Power/Buzzer] Title MAIN PCB / Power/Buzzer (10/11) Size Number Revision PPS00001-0 PPS00001-0/PPS00024-0 Date: Sheet File: Drawn By: 6-12 CL-S400DT...

  • Page 153: Sa Main Pcb (11/11) [Interface]

    Chapter 6 Circuit Diagrams SA Main PCB (11/11) [Interface] Title MAIN PCB / Interface (11/11) Size Number Revision PPS00001-0/PPS00024-0 PPS00001-0 Date: Sheet File: Drawn By: 6-13 CL-S400DT...

  • Page 154: Sa Lcd Pcb

    Chapter 6 Circuit Diagrams SA LCD PCB g i l Title SA, LCD PCB Size Number Revision PPS00002-0 Date: Sheet File: Drawn By: 6-14 CL-S400DT...

  • Page 155: Sa Adjust Sensor U Pcb

    Chapter 6 Circuit Diagrams SA Adjust Sensor U PCB [Adjustable Sensor (Transparent Sensor] PT100MF0MP1S Title SA ADJUST SENSOR U Size Number Revision PPS00003-0 Date: Sheet File: Drawn By: 6-15 CL-S400DT...

  • Page 156: Sa Adjust Sensor L Pcb [Adjustable Sensor (Reflective Sensor)]

    Chapter 6 Circuit Diagrams SA Adjust Sensor L PCB [Adjustable Sensor (Reflective Sensor)] Title SA, ADJUST SENSOR L Size Number Revision PPS00004-0 Date: Sheet File: Drawn By: 6-16 CL-S400DT...
  • Page 157 Appendices PPENDICES CL-S400DT...
  • Page 158 Appendices Appendices Table of Contents Mounting Diagrams......................AP-3 A-1. SA Main PCB (For CSA/CSE) ................AP-3 A-2. SA Main PCB (For China) .................. AP-5 A-3. SA LCD PCB ...................... AP-7 AP-2 CL-S400DT...

  • Page 159: Mounting Diagrams

    Appendices Mounting Diagrams Mounting Diagrams A-1. SA Main PCB (For CSA/CSE) [Component side] AP-3 CL-S400DT...
  • Page 160 Appendices Mounting Diagrams [Soldering side] AP-4 CL-S400DT...

  • Page 161: Sa Main Pcb (For China

    Appendices Mounting Diagrams A-2. SA Main PCB (For China) [Component side] AP-5 CL-S400DT...
  • Page 162 Appendices Mounting Diagrams [Soldering side] AP-6 CL-S400DT...

  • Page 163: Sa Lcd Pcb

    Appendices Mounting Diagrams A-3. SA LCD PCB [Component side] [Soldering side] AP-7 CL-S400DT...
  • Page 164 363 Van Ness Way, Suite 404 Torrance, CA 90501. USA Tel: (310) 781-1460 Fax:(310) 781-9152 http://www.citizen-systems.com Mettinger Strasse 11 Park House, 643-651 Staines Road D-73728, Esslingen Feltham, Middlesex, TW14 8PA Germany United Kingdom Tel: +49 (0) 711 3906 420 Tel: +44 (0) 20 8893 1900...

Table of Contents

Save PDF
