CYBEX 771A Owner's Manual page 41

3. Grasp the other rear cover and slowly lift the rear foot off the floor. Lower rear foot to the floor.
Make note of either rear foot lifting off the floor easier than the other.
If both rear feet lift off the floor evenly, secure both leveling foot jam nuts against the frame post
using a 9/16" open-end wrench. Unit is leveled.

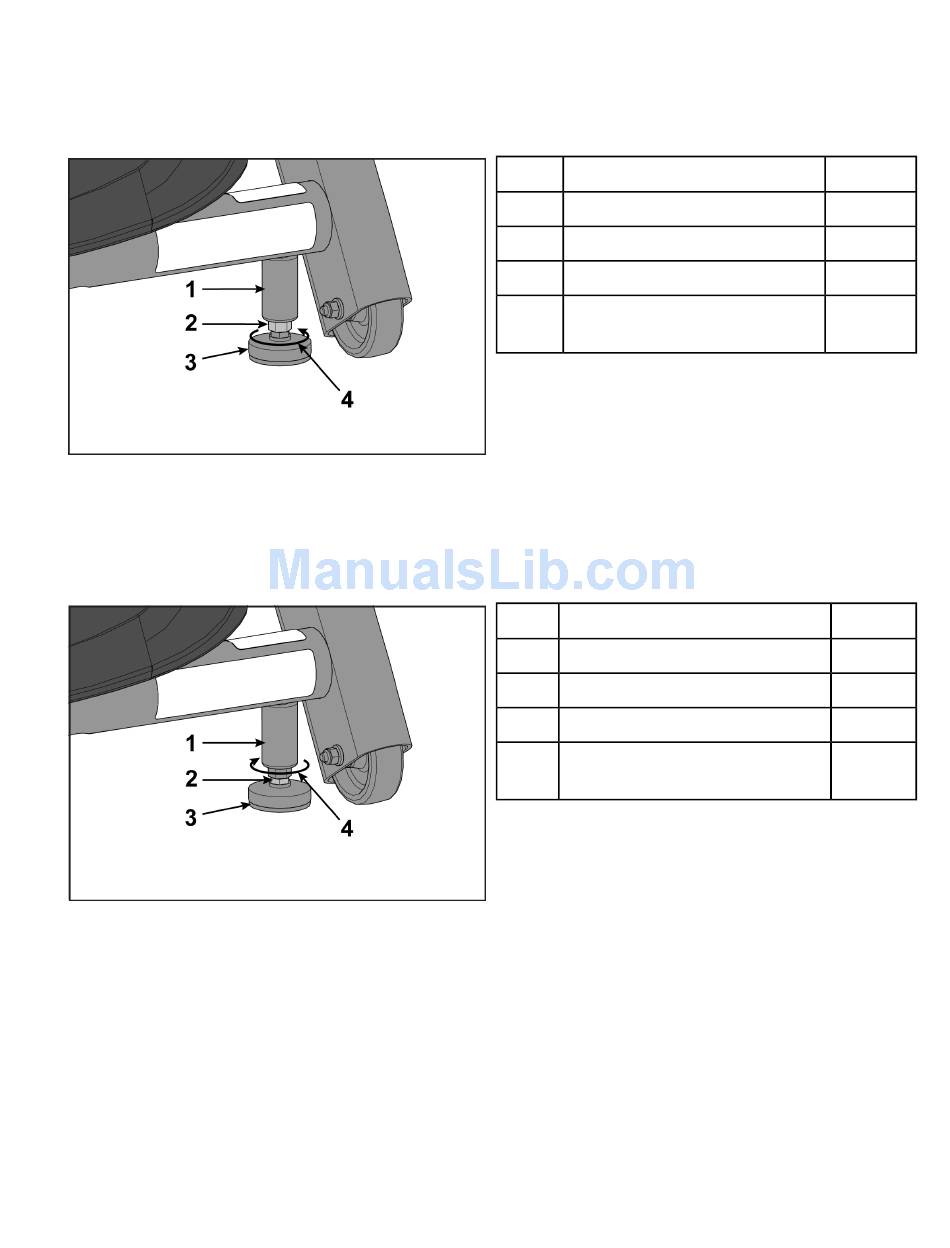

Left leveling foot shown
4. Adjust the weight of the rear feet using a 1/2" open-end wrench.
• If the left rear foot lifts up easier, Adjust the right leveling foot nut down.
• If the right rear foot lifts up easier, Adjust the left leveling foot nut down.
Left leveling foot shown
5. Test the unit again for uneven weight on the rear feet. Adjust leveling foot nuts until each rear foot
lifts with even force.
6. Secure both jam nuts using a 9/16" open-end wrench. Unit is leveled.
Install optional Audio Visual cables
The optional audio visual cables can include combinations of Coax, Ethernet, or HDMI cables.Mounting
plate has three holes for all configuration options:
Cybex 771A/771AT, 772A/772AT Arc Trainer Part Number 5771-4 K
1
2
3
Turn counter-clockwise to
4
1
2
3
Turn clockwise to adjust level-
4
Page 41 of 95
Description
Frame post
Jam nut
Leveling foot
secure
Description
Frame post
Leveling foot nut
Leveling foot
ing foot down
Qty.
1
1
1
1
Qty.
1
1
1
1
