CYBEX 771A Owner's Manual page 38

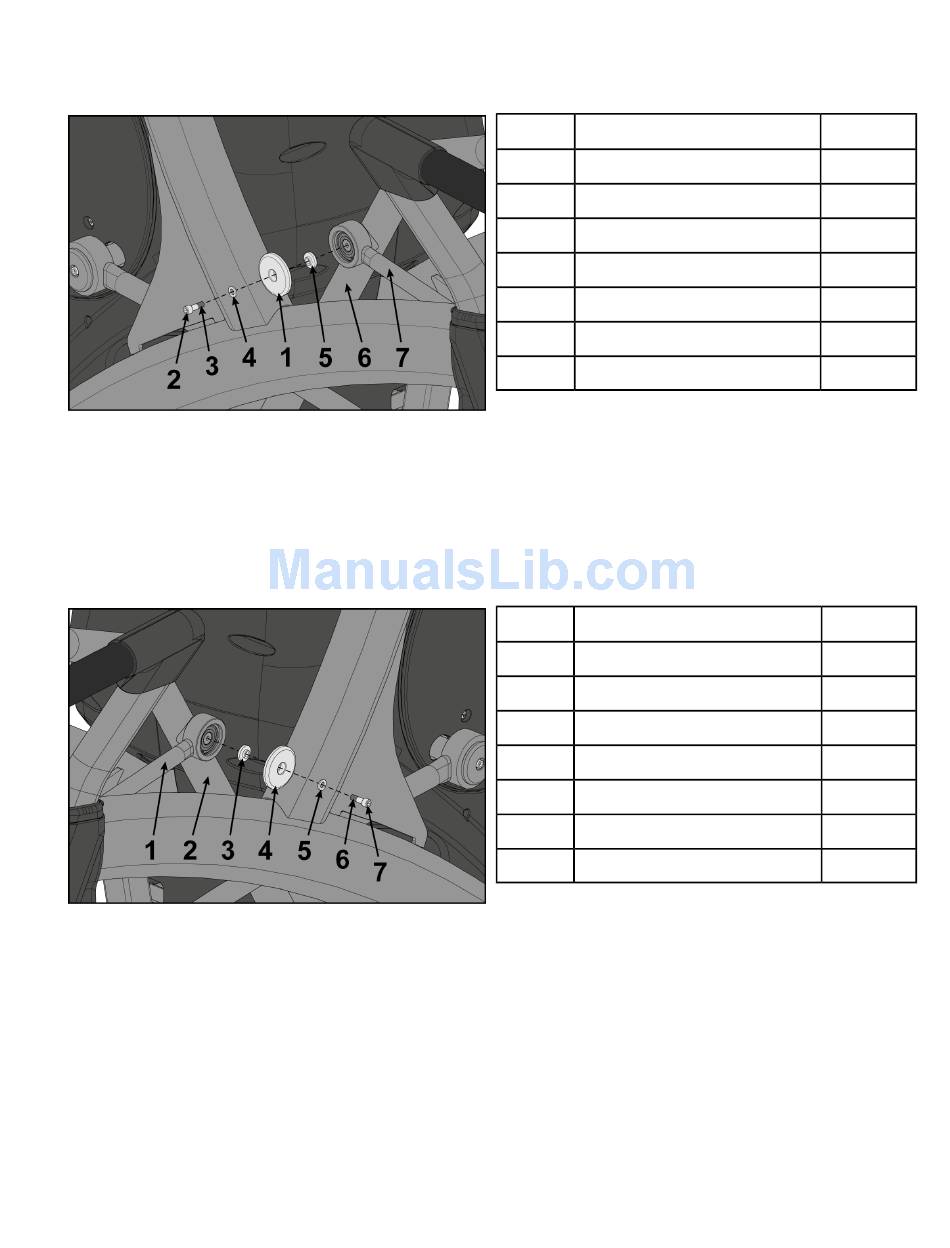

Install left linkage rod
1. Pivot left handle assembly up and slide left linkage rod onto left arm.
2. Place a drop of Loctite onto the screw.
3. Install the screw, washer, linkage rod cap, and flange spacer using a 3/16" Allen wrench.
4. Tighten screw to a minimum of 90 in/lbs.
Install right linkage rod
1. Pivot right handle assembly up and slide left linkage rod onto left arm.
2. Place a drop of Loctite onto the screw.
3. Install the screw, washer, linkage rod cap, and flange spacer using a 3/16" Allen wrench.
Cybex 771A/771AT, 772A/772AT Arc Trainer Part Number 5771-4 K
1
2
3
4
5
6
7
1
2
3
4
5
6
7
Page 38 of 95
Description
Linkage rod cap
Screw
Loctite
Washer
Flange spacer
Left arm
Left linkage rod
Description
Right linkage rod
Right arm
Flange spacer
Linkage rod cap
Washer
Loctite
Screw
Qty.
1
1
1
1
1
1
1
Qty.
1
1
1
1
1
1
1
