CYBEX 750AT Assembly Instructions After Remanufactured

CYBEX 750AT Assembly Instructions After Remanufactured

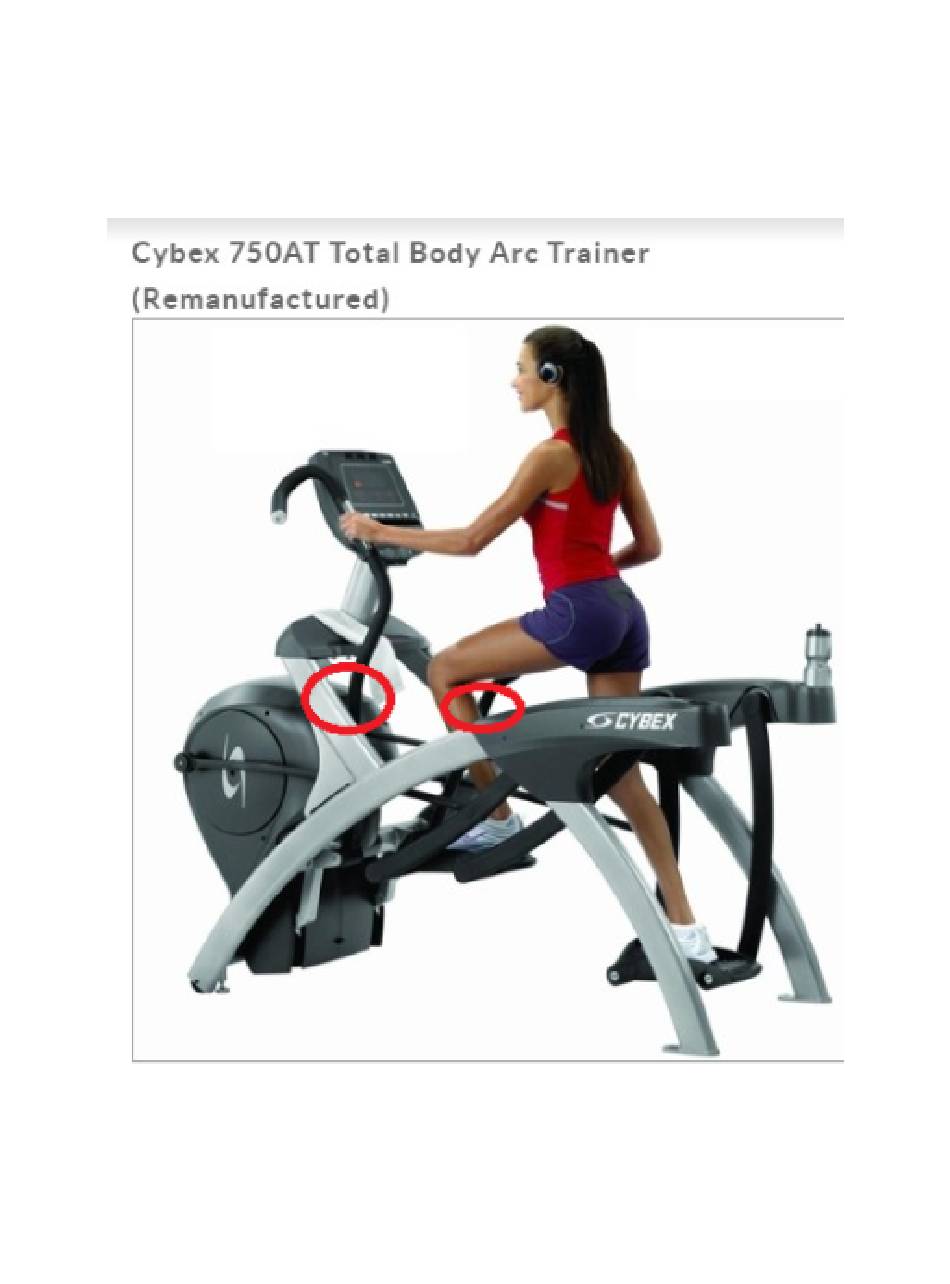

Total body arc trainer (remanufactured)
Hide thumbs Also See for 750AT:

Advertisement

Quick Links

Download this manual
Assembly Instructions after Remanufactured
HIGHLIGHTED AREAS on Page 27 to 31 are assembly directions to install arms.
HIGHLIGHTED AREAS on Page 26 to 31 are assembly directions to install arms.
See "Install the left handle assembly" + "Install right handle assembly"
See "Install the left handle assembly" + "Install right handle assembly"

Advertisement

loading
Need help?

Need help?

Do you have a question about the 750AT and is the answer not in the manual?

Questions and answers

Related Manuals for CYBEX 750AT

Summary of Contents for CYBEX 750AT

  • Page 1 Assembly Instructions after Remanufactured HIGHLIGHTED AREAS on Page 27 to 31 are assembly directions to install arms. HIGHLIGHTED AREAS on Page 26 to 31 are assembly directions to install arms. See "Install the left handle assembly" + "Install right handle assembly" See "Install the left handle assembly"...
  • Page 2 Cybex Arc Trainer 750A/750AT Owner’s Manual Verify contents of 750AT hardware pack. See 750AT content listing and 750AT carton contents. Check off each item as found. See Customer Service for contact information if any parts are missing. 750AT Contents Item Quantity Part Number Description Varies...
  • Page 3 Cybex Arc Trainer 750A/750AT Owner’s Manual Verify contents of 750AT hardware pack. See 750AT hardware pack listings and 750AT hardware pack contents. Check off each item as found. See Customer Service for contact information if any parts are missing. 750AT Hardware Pack Item Quantity Part Number...
  • Page 4 Cybex Arc Trainer 750A/750AT Owner’s Manual 750AT #20 #17...
  • Page 5 Cybex Arc Trainer 750A/750AT Owner’s Manual Lift and move unit. 1. Carefully remove large bolts and shipping supports. Keep package material on linkage arms at this time. This will protect the paint from scratching during assembly. With one person on each side, firmly grasp each rear support leg and lift. Do not grasp plastic pivot covers.
  • Page 6 Cybex Arc Trainer 750A/750AT Owner’s Manual Locate the contact heart rate cable in the handrail assembly. Thread upper contact heart rate cable through the console mount. 750A Upper Contact Heart Rate Cable #14a #14b #16 (Loctite) Attach the console assembly (#2a) to the handrail assembly (#2b); using a 7/32” Allen wrench, secure with one saddle washer .390 ID x .750 OD x 6 (#14a) and one BHSCS .375-16 x 2.25 SS...
  • Page 7 Cybex Arc Trainer 750A/750AT Owner’s Manual Attach 750A console and handrail assembly. Locate four nylon locknuts (#12) and four BHSCS .375-16 x 2.25 (#13). 750A Upper Display Contact Heart Cable Rate Cable Heart Rate Display Cable Cable Strap Lower Display Cable Heart Rate Board With an assistant, place the console assembly (#2a) and handrail assembly (#2b) in the correct position on the main frame.
  • Page 8 Cybex Arc Trainer 750A/750AT Owner’s Manual Hold the four BHSCS .375-16 x 2.25 (#13) with a 7/32” Allen wrench (#15) while tightening with a 9/16” open end wrench to secure console. Using a 7/32” Allen wrench, tighten the four BHSCS (#14d) to secure the handle assembly. Refer to the above diagram.
  • Page 9 Cybex Arc Trainer 750A/750AT Owner’s Manual Attach main tray Locate main tray (#4) and four tap SC 10-12 x 2.00 Type A PN HD PHIL (#11). Place the main tray (#4) in the correct position on the main frame assembly and hand thread the four Tap SC 10-12 x 2.00 Type A PN HD PHIL (#11).
  • Page 10 Cybex Arc Trainer 750A/750AT Owner’s Manual Remove left and right handle assembly NOTE: The left and right handle assemblies are shipped in the reverse positions. The handle assemblies must be removed and swapped for proper setup and assembly. 750AT Shipping Position...
  • Page 11 Cybex Arc Trainer 750A/750AT Owner’s Manual Slide pivot pin out, remove right handle assembly and set aside. Using a 7/32” Allen wrench (#15), remove the screws and washers from the left handle assembly. Refer to the above diagram. Verify left handle assembly is mounted on the right side.
  • Page 12 Cybex Arc Trainer 750A/750AT Owner’s Manual Place left handle assembly in position and slide pivot pin back in place. Refer to diagram under step one above. Secure handle assembly with the screws and washers removed in step 2 of Remove left and right handle assembly .
  • Page 13 Cybex Arc Trainer 750A/750AT Owner’s Manual Install right handle assembly Position the right handle assembly in the correct position on the right side where the left handle assembly was removed in step 7 of Remove left and right handle assembly. 750AT 750AT (Both Sides–Left Side Shown) (Both Sides–Left Side Shown)
  • Page 14 Cybex Arc Trainer 750A/750AT Owner’s Manual Place right handle assembly in position and slide pivot pin back in place. 750AT (Both Sides–Left Side Shown) Washer Screw/Loctite Pivot Pin Secure handle assembly with the screws and washers removed in step two of Remove left and right handles.
  • Page 15 Cybex Arc Trainer 750A/750AT Owner’s Manual Verify handle assemblies are now installed in the correct position. 750AT Correct Position Left Right Handle Handle Assembly Assembly Connect 750AT contact heart rate cable Locate contact heart rate cable exiting from the right handle assembly.

  • Page 16: Level Unit

    Cybex Arc Trainer 750A/750AT Owner’s Manual Attach foot pads Have one person lift the unit while a second person places a foot pad (#3) under each of the two back feet. Level unit Confirm unit is on a level surface. If not, use a 9/16” open-end wrench to adjust the leveling feet up or down.
