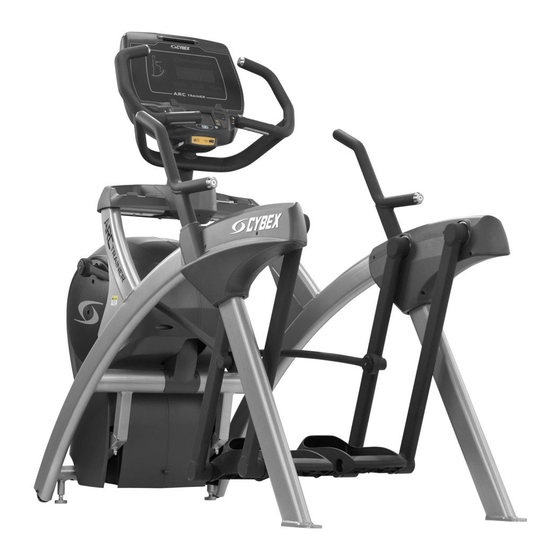

Cybex 771A/771AT, 772A/772AT Arc Trainer
Owner's Manual
Part Number 5771-4 K
www.cybexintl.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 771A and is the answer not in the manual?

Questions and answers

Michelle Houlden
March 8, 2025

Screen is frozen and won’t reset or go dormant pressing the cybex logo does nothing.

0
1 comments:
Mr. Anderson
March 8, 2025

To reset a frozen CYBEX 771A screen, follow these steps:

1. Press and hold the Fan key for at least three seconds until the console beeps twice.
2. Release the Fan key and press the Volume Down key within two seconds.
3. The Incline and Resistance LEDs will blink, indicating Diagnostics Mode.
4. Press any Incline or Resistance key within ten seconds to stay in Diagnostic Mode.
5. If necessary, press the Stop key to exit to Dormant Mode.

If the issue persists, check for communication errors or a faulty membrane connection.

This answer is automatically generated

0
