11.5
Main View

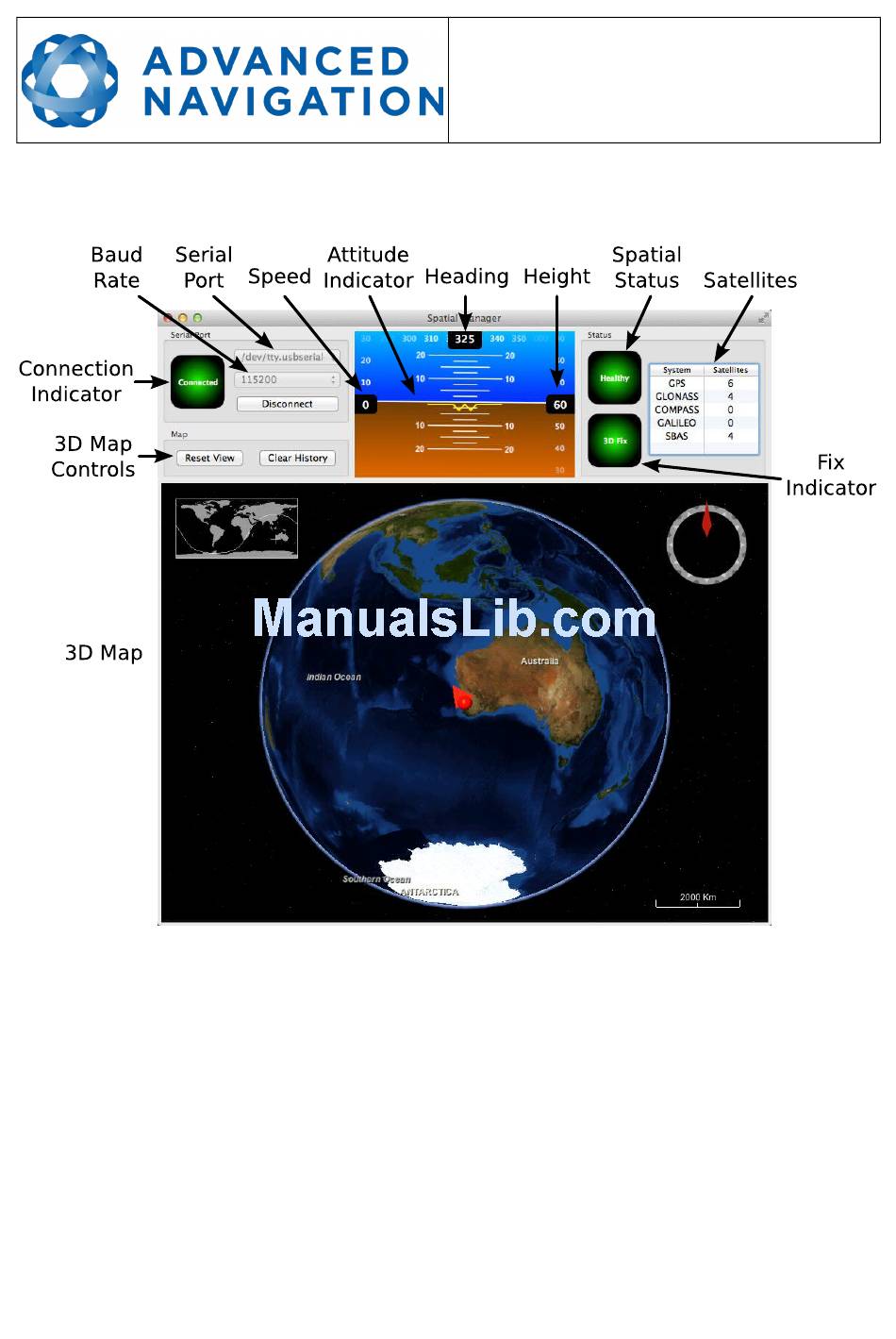

Illustration 31: Screenshot of Spatial FOG Manager main view
11.5.1
Serial Port
The serial port dialogue is used to connect to Spatial FOG. You should select a serial
port and baud rate and click connect. The default baud rate of Spatial FOG is 115200.
The connection indicator displays whether there is communication with a Spatial FOG
unit.
11.5.2
Attitude Indicator
The aircraft style attitude indicator shows roll and pitch through a virtual horizon.
Around the sides heading, speed and height are shown. All units are SI (metric) and
degrees.
Spatial FOG Reference Manual
Page 57 of 144
Version 2.3
03/05/2018
