Reset

The reset button causes the system to perform a power cycle as if the unit had the
power removed and reapplied. The factory restore button causes the system to erase
all settings and restore factory defaults. It also erases the hot start data so that the
system is forced to perform a cold start.
11.8.9

Heave Ofset

The heave ofset dialogue allows the user to move the heave measurement points to
diferent positions on the vessel. When the values are zero the measurement point is
the centre of the Spatial FOG unit. This can be ofset to a diferent position on the ship
by entering the ofset value from the centre of the Spatial FOG unit to the desired
position in the body co-ordinate frame (X positive forwards, Z positive down). Please
note that these values only apply to the Heave Packet. NMEA, TSS and Simrad heave is
not afected by the values in this dialogue which are always measured at the centre of
the Spatial FOG unit.
Spatial FOG Reference Manual

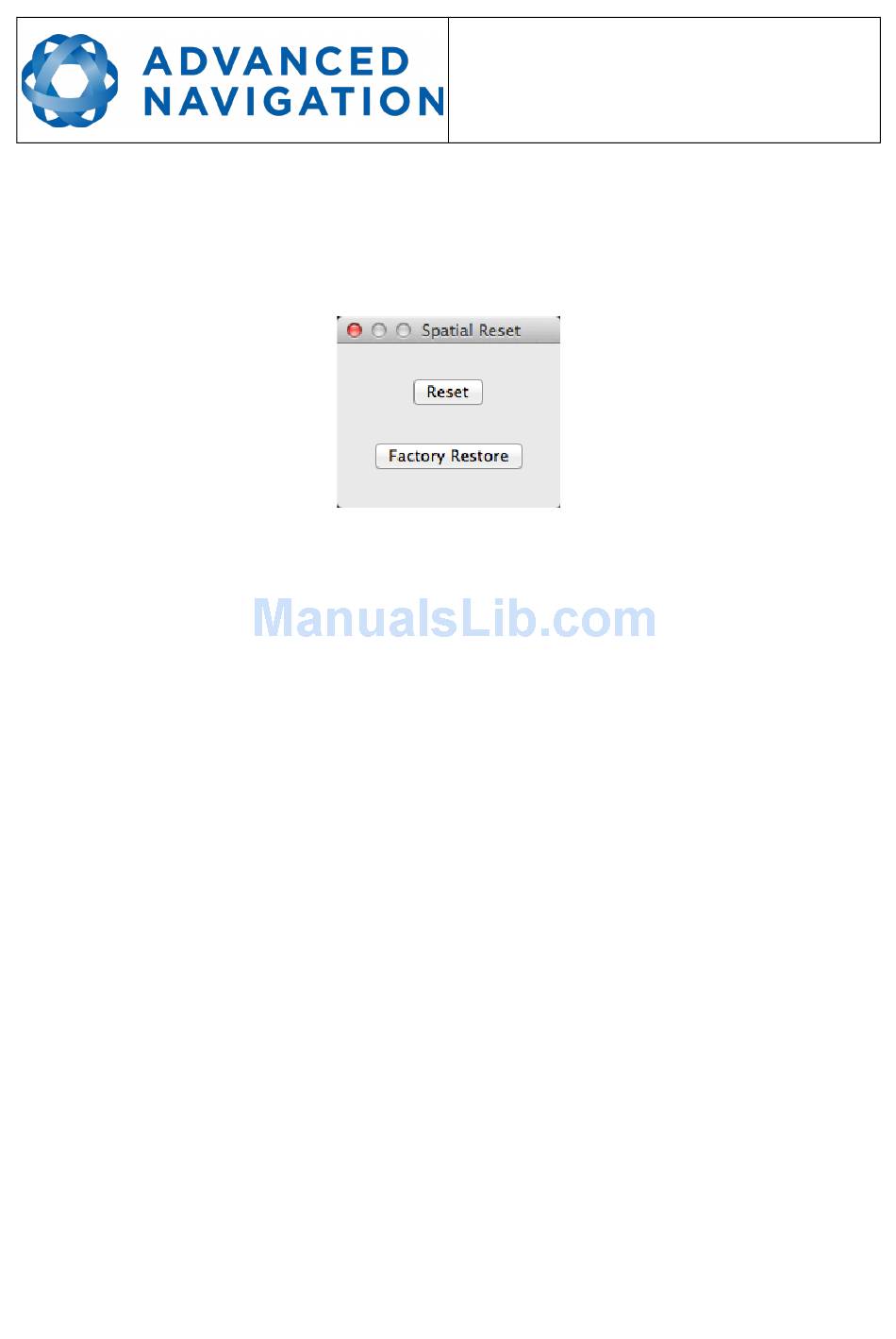

Illustration 55:
