Colour mapping
The colour mapping of the APOLLO LVDS LCD interface is compatible with the VESA

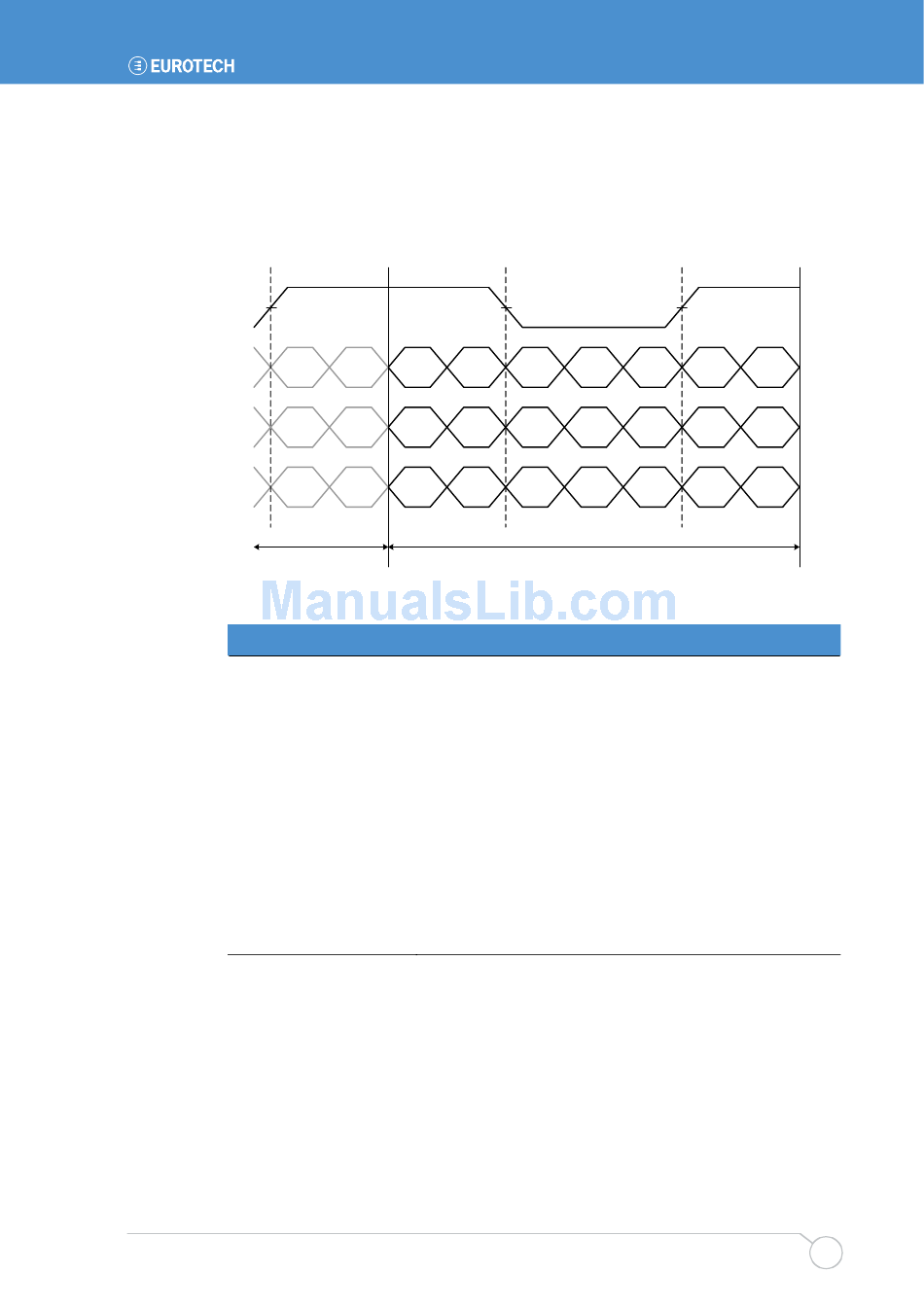

industry standard colour mapping for LCD displays. The figure below and the table that
follows show the configuration for the colour bits in a three channel 6-bit/pixel LVDS bit
stream, and the relationship to its clock:
CLKA
IYA0
IYA1
IYA2
Previous Clock Cycle
APOLLO LVDS
IYA0-
IYA0+
IYA1-
IYA1+
IYA2-
IYA2+
ICLKA-
ICLKA+
Dual channel operation
The APOLLO LVDS display interface connector supports dual channel LVDS displays.
Commonly these displays have a screen resolution greater than 1024x768. The
secondary LVDS display channel on the APOLLO board occupies the remaining
connections on the LVDS connector J17.
The secondary channel is designated with a 'B'. It maps to the LCD display in a similar
manner to the primary channel.
Issue G
G0 R5 R4
B1 B0 G5
DE VS HS
Data for Current Clock Cycle
Common LVDS LCD signal names
RxIN0-, Rin0-, D0-, Link 0-, IN0-
RxIN0+, Rin0+, D0+, Link 0+, IN0+
RxIN1-, Rin1-, D1-, Link 1-, IN1-
RxIN1+, Rin1+, D1+, Link 1+, IN1+
RxIN2-, Rin2-, D2-, Link 2-, IN2-
RxIN2+, Rin2+, D2+, Link 2+, IN2+
CKIN-, ClkIN-, CK-, Clock-, CLK-
CKIN+, ClkIN+, CK+, Clock+, CLK+
Detailed hardware description
R3 R2 R1
G4 G3 G2
B5 B4 B3
R0
G1
B2
