APOLLO user manual

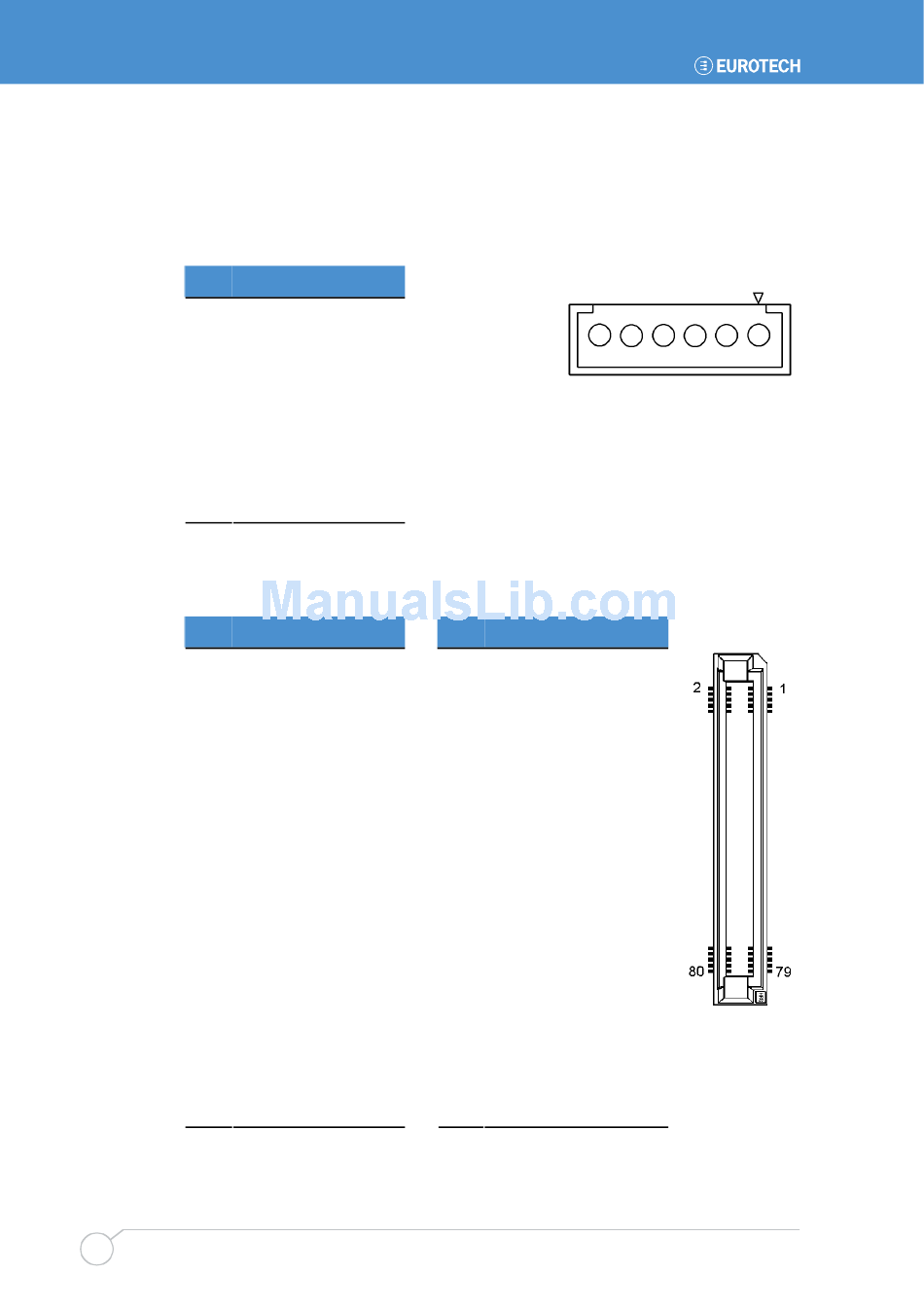

J15 – Backlight connector
6-way 2mm pitch shrouded header.
Mating connector: JST PHR-6
Mating connector crimps: JST SPH-004T-P0.5S
Pin Signal name
1 +12V
2 Ground
3 +5V
4 Backlight control
5 Backlight En
6 Ground
J16 – Video option and USB ports 5/6 connector
Hirose FX8C-80S-SV5.
Pin Signal name
1 +3.3V PCIVAUX
3 +3.3V
5 +3.3V
7 +3.3V
9 +5V
11 USB POWER
13 USB POWER
15 USB POWER
17 Ground
19 USB4 D+
21 USB4 D-
23 Ground
25 USB5 D+
27 USB5 D-
42
6
Pin Signal name
2 Ground
4 DVOBD11
6 DVOBD10
8 DVOBD9
10 DVOBD8
12 DVOBD7
14 DVOBD6
16 DVOBD5
18 DVOBD4
20 DVOBD3
22 DVOBD2
24 DVOBD1
26 DVOBD0
28 Ground
continued...
