Eurotech Apollo User Manual page 45

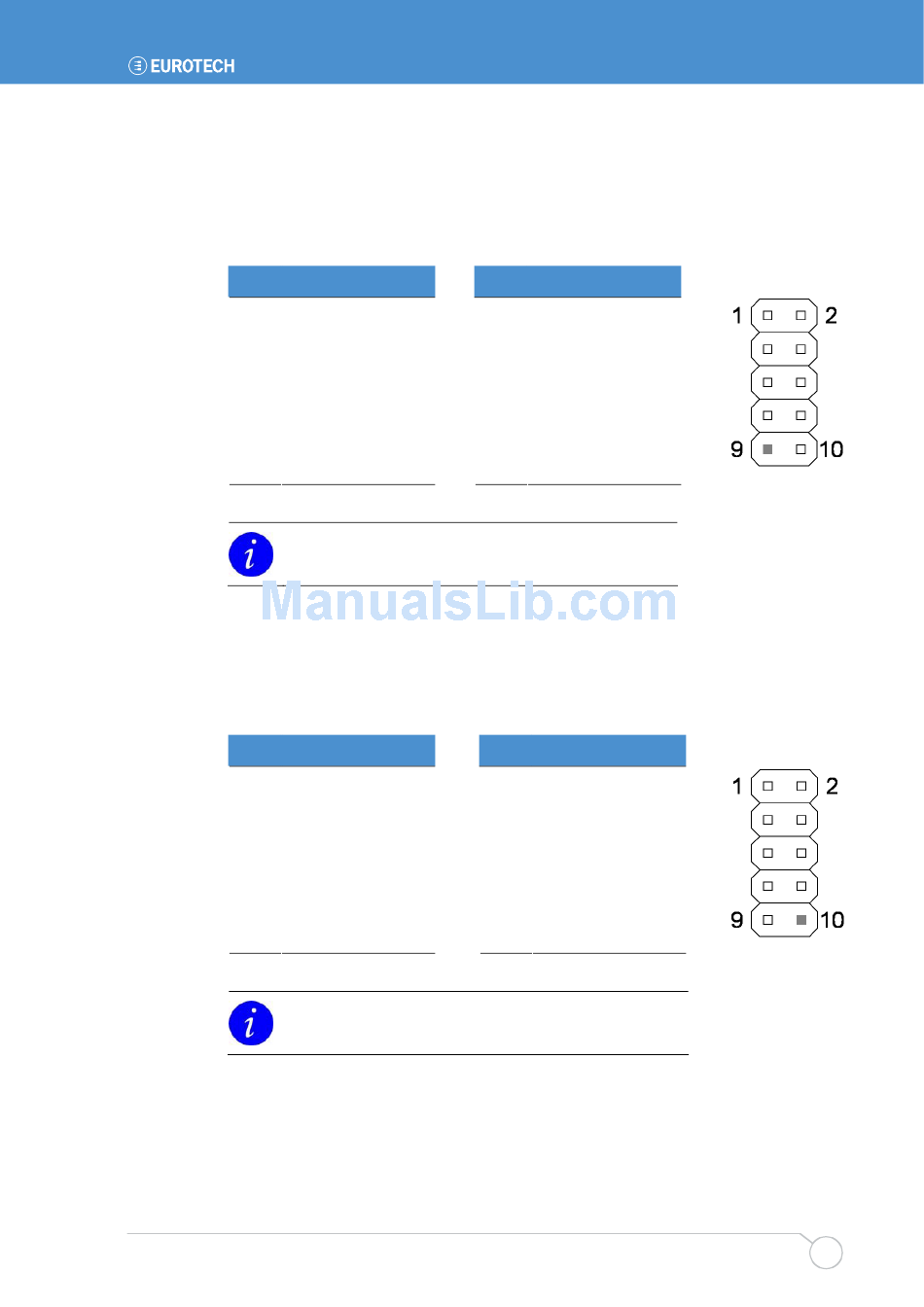

J18 – USB ports 3 and 4
10-way, 2.54mm (0.1") x 2.54mm (0.1") dual row header.
Mating connector: Harwin M20-1070500
Mating connector crimps: Harwin M20-1180022
Pin Signal name
1 VBUS (port 3)
3 D- (port 3)
5 D+ (port 3)
7 Ground
9 Key (no pin)
For error free data transmission, cable certified for USB
2.0 operation should be used.
J19 – IEEE1394 connector port 1
10-way, 2.54mm (0.1") x 2.54mm (0.1") dual row header.
Mating connector: Harwin M20-1070500.
Mating connector crimps: Harwin M20-1180022.
Pin Signal name
1 TPA1+
3 Ground
5 TPB1+
7 +12V (fused)
9 Shield ground
For error free data transmission, cable certified for
IEEE1394 operation should be used.
Issue G
Jumpers and connectors
Pin Signal name
2 VBUS (port 4)
4 D- (port 4)
6 D+ (port 4)
8 Ground
10 Ground
Pin Signal name
2 TPA1-
4 Ground
6 TPB1-
8 +12V (fused)
10 Key (no pin)
45
