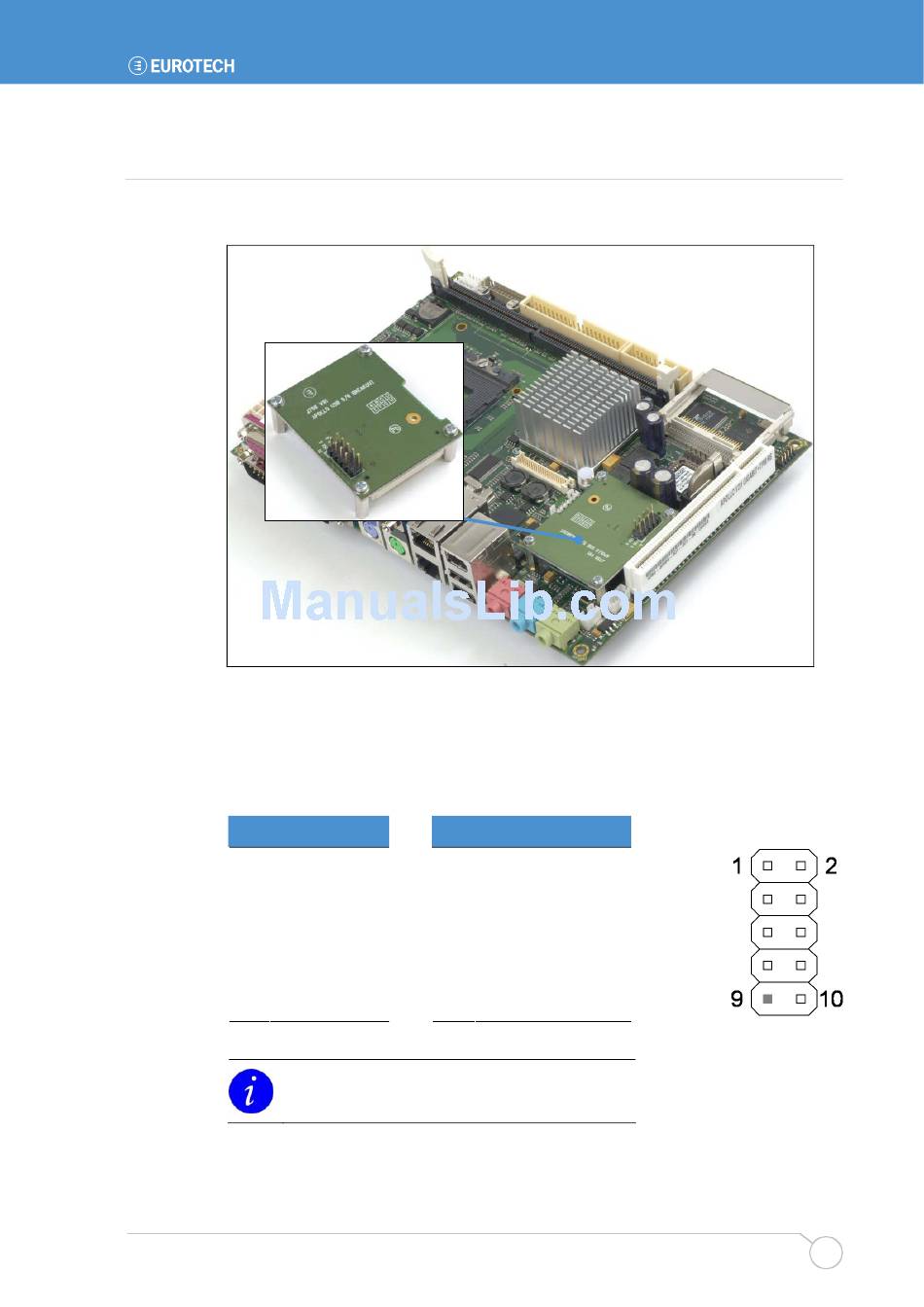

Appendix D – APOLLO USB 5/6 breakout
A board has been designed to provide a breakout option for the USB 5 and 6 ports which
are interfaces via the connector J16.
J2 – USB ports 5 and 6
10-way, 2.54mm (0.1") x 2.54mm (0.1") dual row header.
Mating connector: Harwin M20-1070500
Mating connector crimps: Harwin M20-1180022
Pin Signal name
1 VBUS (port 5)
3 D- (port 5)
5 D+ (port 5)
7 Ground
9 Key (no pin)
For error free data transmission, cable certified for
USB 2.0 operation should be used.
Issue G
Appendix D – APOLLO USB 5/6 breakout
Pin Signal name
2 VBUS (port 6)
4 D- (port 6)
6 D+ (port 6)
8 Ground
10 Ground
