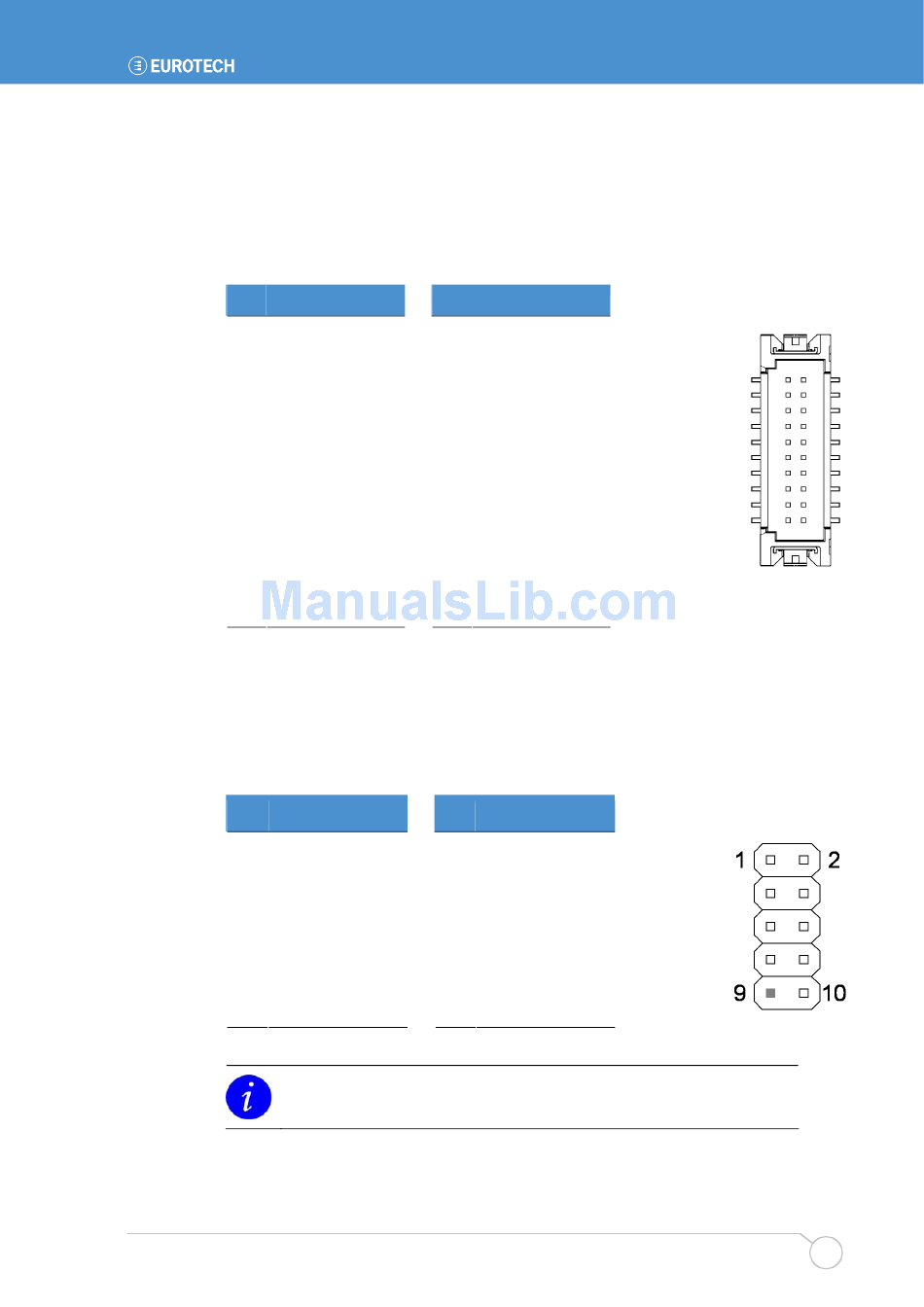

J2 – LVDS input interface (single channel)
20-way 2mm Hirose DF13-20DP-1.25V.
Mating connector: Hirose DF13-20DS-1.25C
Crimps: Hirose: DF13-2630SCFA
Pin
Signal name
1
+3.3V
3
GND
5
LVDS_D0-
7
GND
9
LVDS_D1+
11
LVDS_D2-
13
GND
15
LVDS_CLK+
17
DDC_CLK
19
GND
J4 – USB ports 5 and 6
10-way, 2.54mm (0.1") x 2.54mm (0.1") dual row header.
Mating connector: Harwin M20-1070500
Mating connector crimps: Harwin M20-1180022
Pin
Signal name
1
VBUS (port 5)
3
D- (port 5)
5
D+ (port 5)
7
Ground
9
Key (no pin)
For error free data transmission, cable certified for USB 2.0 operation
should be used.
Issue G
Appendix G – VGA option board
Pin
Signal name
2
+3.3V
4
GND
6
LVDS_D0+
8
LVDS_D1-
10
GND
12
LVDS_D2+
14
LVDS_CLK-
16
GND
18
DDC_DATA
20
GND
Pin
Signal name
2
VBUS (port 6)
4
D- (port 6)
6
D+ (port 6)
8
Ground
10
Ground
2
1
20
19
