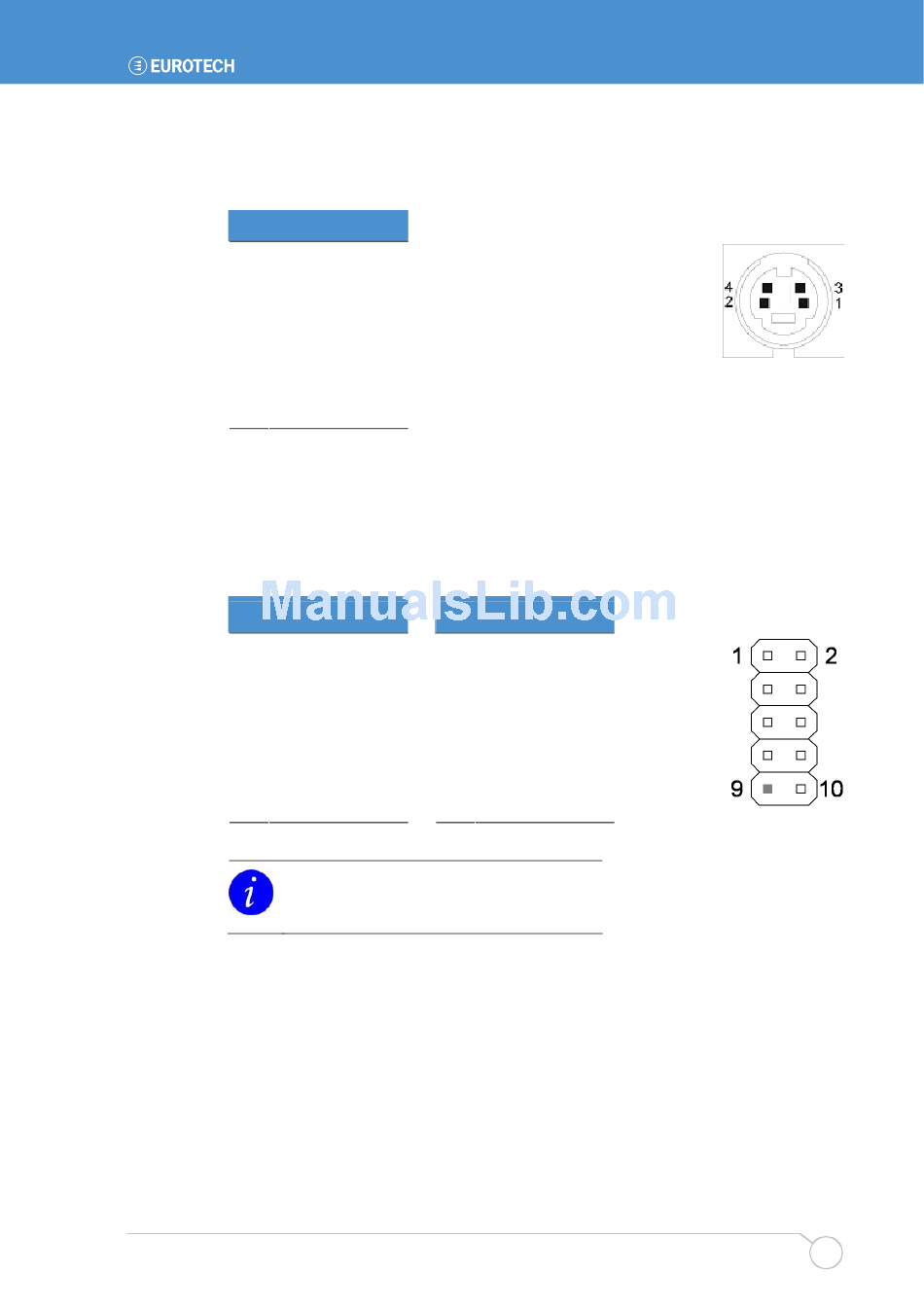

J2 – S-Video
Connector: 4-pin Mini-DIN, Kycon KMDGX-4S-BS
Pin Signal name
1 Ground (Y)
2 Ground (C)
3 Y - Intensity
(Luminance)
4 C – Colour
(Chrominance)
J4 – USB ports 5 and 6
10-way, 2.54mm (0.1") x 2.54mm (0.1") dual row header.
Mating connector: Harwin M20-1070500
Mating connector crimps: Harwin M20-1180022
Pin Signal name
1 VBUS (port 5)
3 D- (port 5)
5 D+ (port 5)
7 Ground
9 Key (no pin)
For error free data transmission, cable
certified for USB 2.0 operation should be
used.
Issue G
Appendix F – TV out video option board
Pin Signal name
2 VBUS (port 6)
4 D- (port 6)
6 D+ (port 6)
8 Ground
10 Ground
