APOLLO user manual

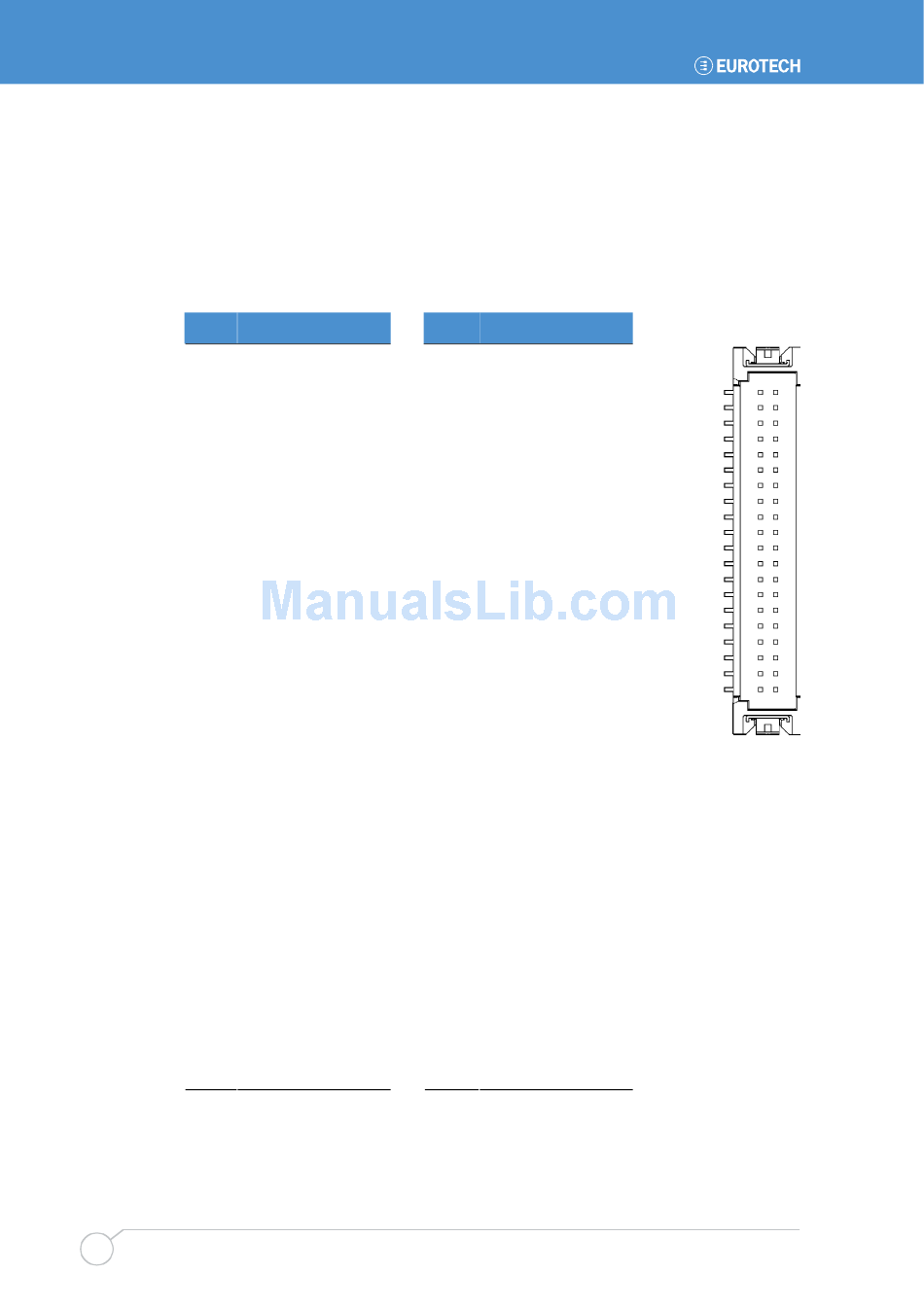

J17 – LVDS display interface (Dual channel)
40-way 2mm Hirose DF13-40DP-1.25V.
Mating connector: Hirose DF13-40DS-1.25C
Crimps: Hirose: DF13-2630SCFA
For optimum performance of the LVDS interface a shielded twisted pair cable should be
used.
Pin Signal name
1 +3.3V
3 +3.3V
5 Ground
7 IYA0-
9 IYA0+
11 Ground
13 IYA2-
15 IYA2+
17 Ground
19 ICLKA-
21 ICLKA+
23 Ground
25 IYB1-
27 IYB1+
29 Ground
31 IYB3-
33 IYB3+
35 Ground
37 Ground
39 DDC CLK
44
Pin Signal name
2 +3.3V
4 +3.3V
6 Ground
8 IYA1-
10 IYA1+
12 Ground
14 IYA3-
16 IYA3+
18 Ground
20 IYB0-
22 IYB0+
24 Ground
26 IYB2-
28 IYB2+
30 Ground
32 ICLKB-
34 ICLKB+
36 Ground
38 Ground
40 DDC DATA
2 1
40
39
