Three display output ports. These are:
- Analogue display interface supporting an analogue CRT. This port uses an
integrated 350MHz RAMDAC that can directly drive a standard progressive scan
analogue monitor up to a resolution of 2048x1536 pixels at a 75Hz refresh rate.
- LVDS port. This will directly interface to most LVDS LCD panels and support
resolutions up to UXGA (1600x1200).
- J16 board interface. This provides the capability to interface to a variety of
Eurotech display option boards that have a TMDS/DVI, analogue CRT display
interface, or a TV display interface via S-Video or composite video outputs.

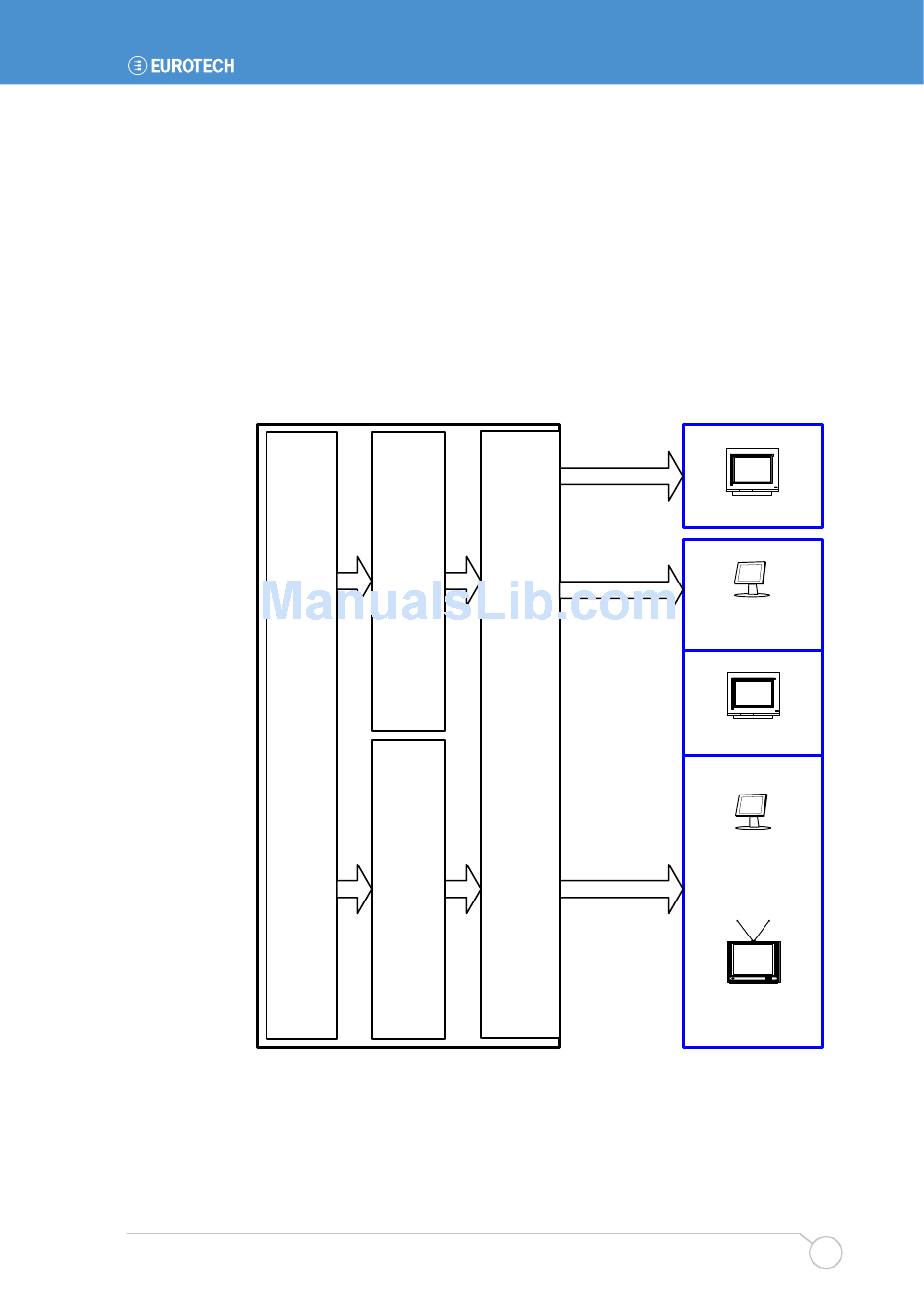

The three output ports are selectively driven by two independent pipes, allowing for a
variety of display options, including dual monitor support with independent video.
Graphics
Engine
Issue G
Pipe 1
Port
Control
Pipe 2
Detailed hardware description
APOLLO VGA
Connector
VGA Monitor
APOLLO LVDS
Connector
LVDS LCD Panel
(Single/Dual Channel)
OR
VGA Option Board
OR
DVI Monitor
(Single Channel)
APOLLO Video
Option Boards
OR
TV
(Composite/S-Video)
