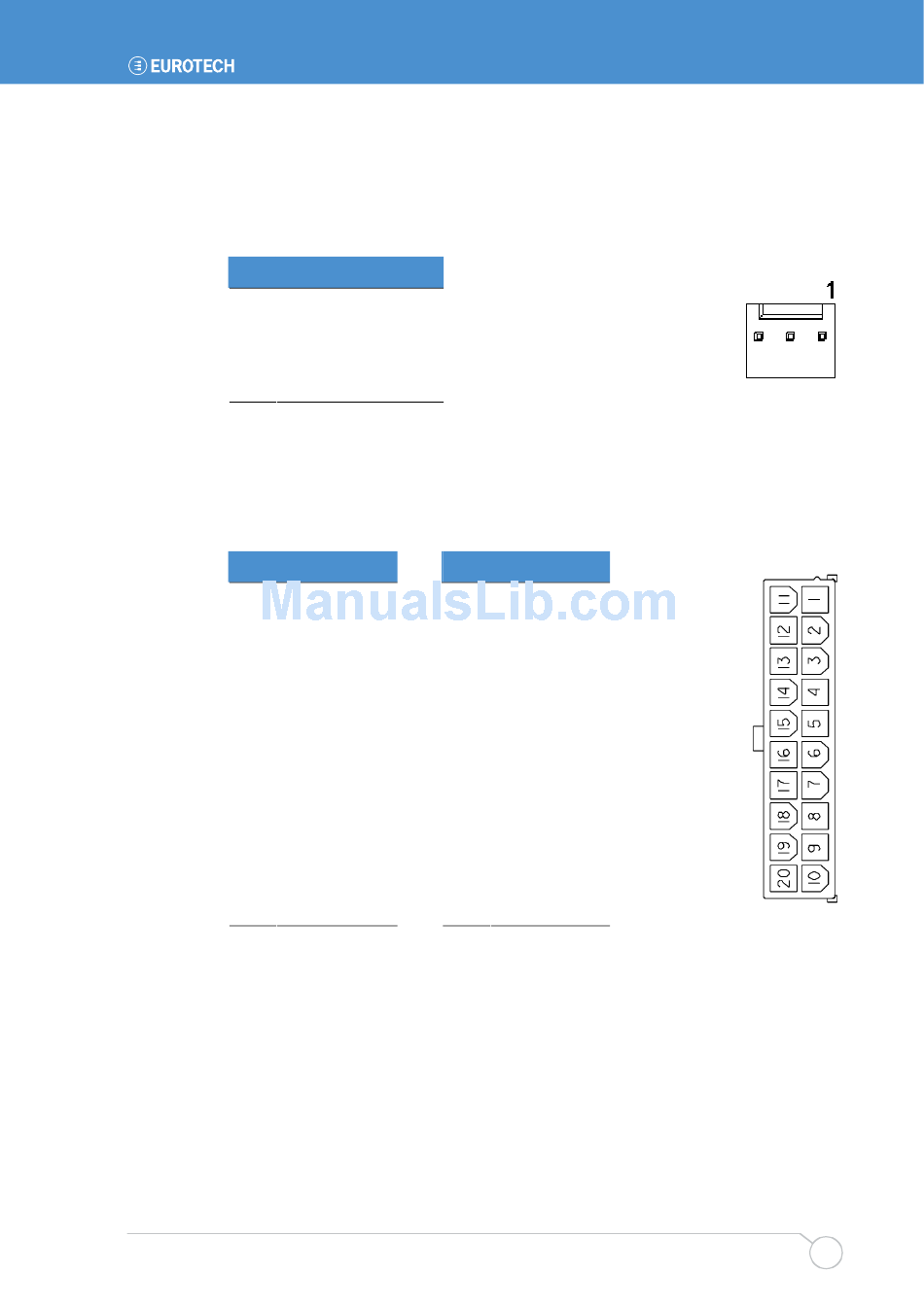

J10, J11 – system fan, CPU fan
Both are 3-way 2.54mm (0.1") friction lock pin headers. The APOLLO supports PWM fan
control and fan tachometer feedback.
Connector: MOLEX 22-04-1031.
Pin Signal name
1 Ground - PWM
2 +12V
3 Tachometer
J12 – ATX power supply
Molex 87427-2043, 20-way, 4.20mm (0.165") x 4.20mm (0.165") dual row header.
Mating connector: Molex 39-01-2200, 20-way crimp housing.
Mating connector crimps (x20): Molex.
Pin Signal name
1 +3.3V
2 +3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PWR_OK
9 +5VSB
10 +12V
Issue G
Pin Signal name
11 +3.3V
12 -12V
13 Ground
14 /PS_ON
15 Ground
16 Ground
17 Ground
18 -5V (NC)
19 +5V
20 +5V
