APOLLO user manual

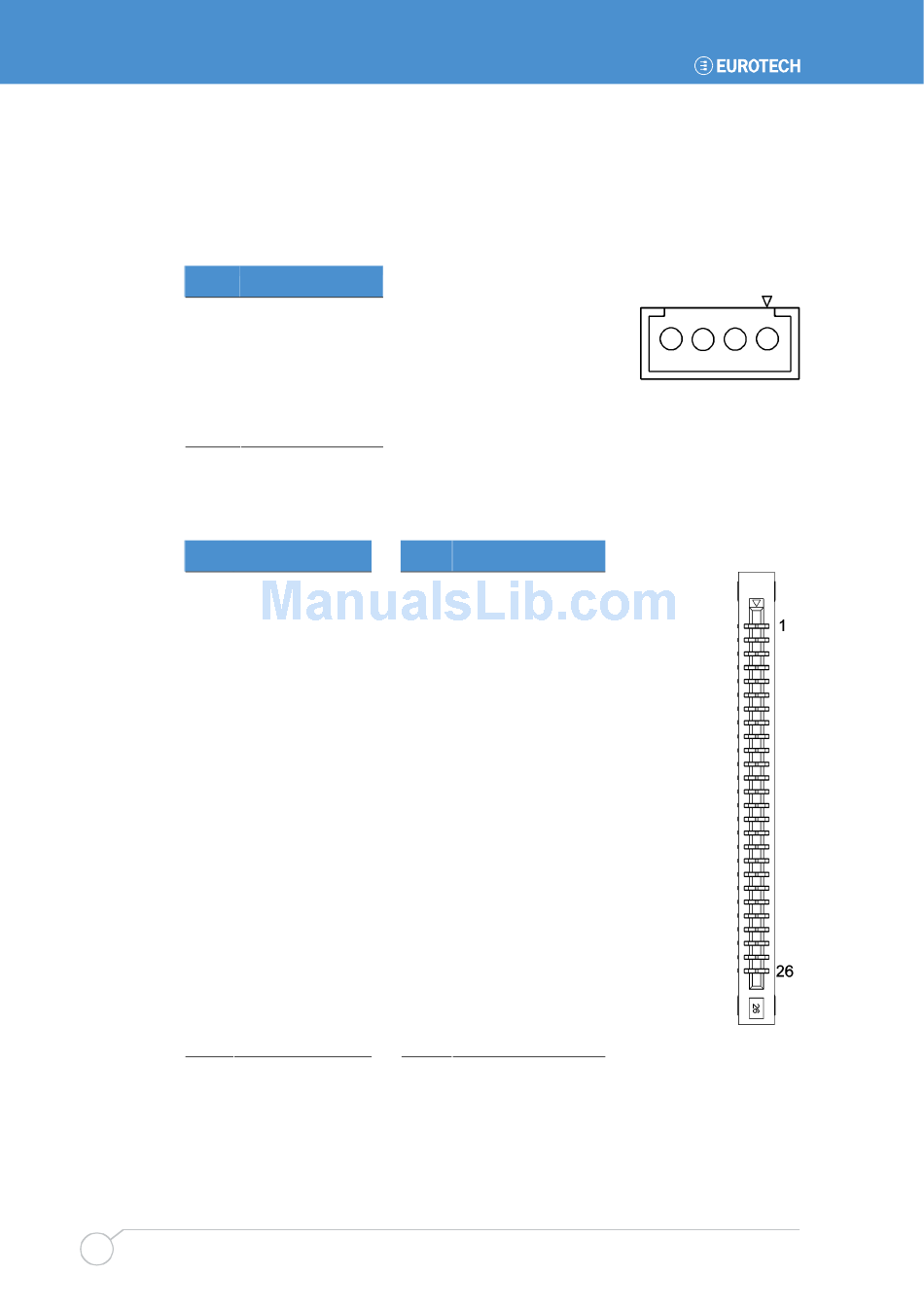

J26 – IrDA connector
4-way 2mm pitch shrouded header.
Mating connector: JST PHR-4
Mating connector crimps: JST SPH-004T-P0.5S
Pin
Signal name
1
TX data
2
Ground
3
RX data
4
+5V
J27 – Slimline floppy drive interface
26-way 1mm pitch FPC connector to support slimline floppy drive.
Pin
Signal name
1
+5V
3
+5V
5
+5V
7
NC
9
NC
11
/DRVDEN0
13
NC
15
Ground
17
Ground
19
Ground
21
NC
23
Ground
25
Ground
50
Pin
Signal name
2
/INDEX
4
/DS0
6
/DSKCHG
8
NC
10
/MTR0
12
/DIR
14
/STEP
16
/WDATA
18
/WGATE
20
/TRK0
22
/WP
24
/RDATA
26
/HDSEL
4
1
Issue G
