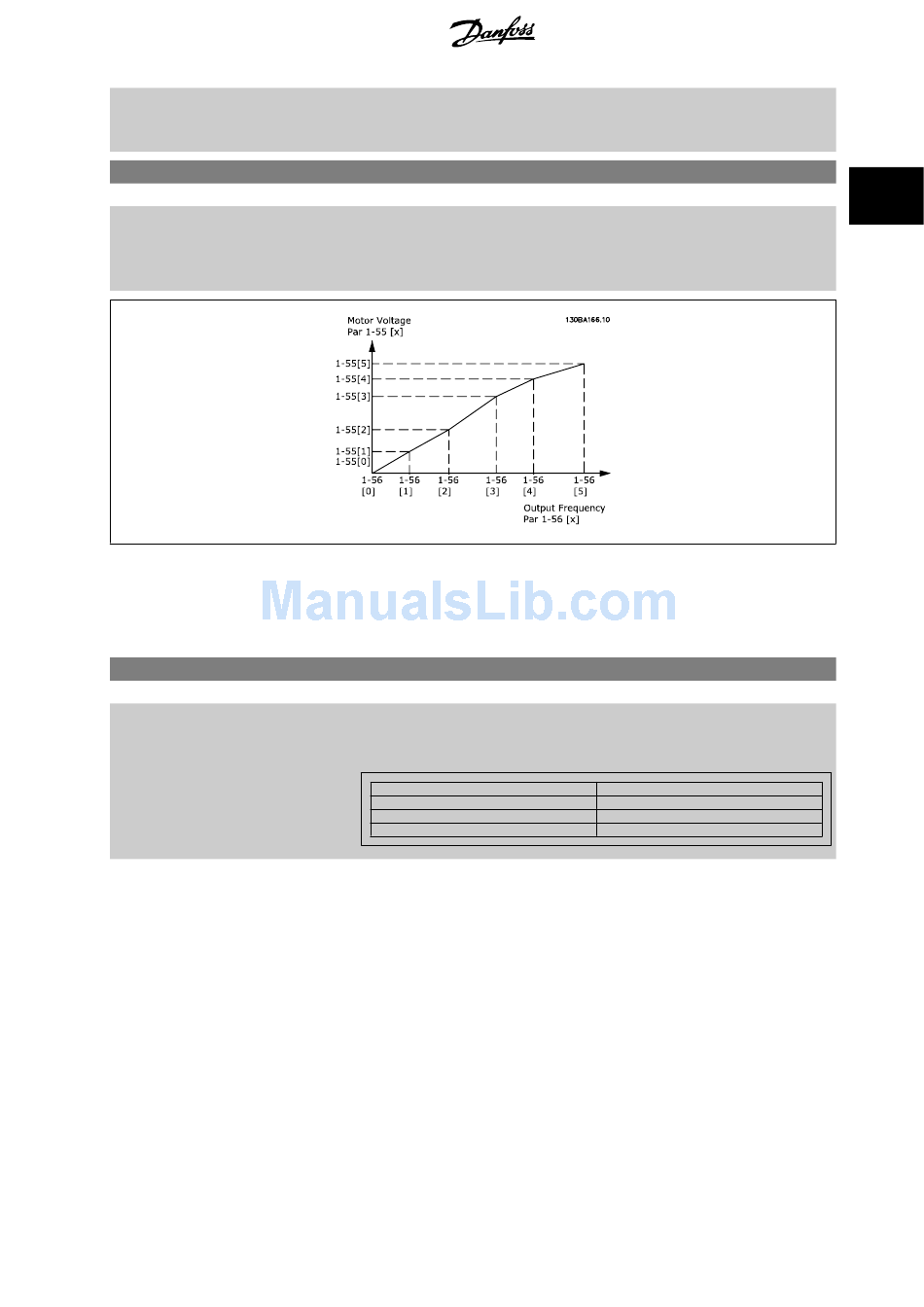

1-56 U/f Characteristic - F
Range:
0 Hz* [0 - 1000.0 Hz]
2.3.6 1-6* Load Depend. Setting
Parameters for adjusting the load-dependent motor settings.
1-60 Low Speed Load Compensation
Range:
100 %* [0 - 300 %]
The frequency points are defined in par.1-56
This parameter is an array parameter [0-5] and is only accessible when par. 1-01
Principle is set to U/f [0].
Function:
Enter the frequency points to manually form a U/f-characteristic matching the motor.
The voltage at each point is defined in par.1-55
This parameter is an array parameter [0-5] and is only accessible when par. 1-01
Principle is set to U/f [0].
Function:
Enter the % value to compensate voltage in relation to load when the motor is running at low speed
and obtain the optimum U/f characteristic. The motor size determines the frequency range within
which this parameter is active.
Motor size
0.25 kW - 7.5 kW
11 kW - 45 kW
55 kW - 550 kW
®
MG.20.O4.02 - VLT is a registered Danfoss trademark
2 Parameter Description
U/f Characteristic - F
.
U/f Characteristic - U
.
Change over
< 10 Hz
< 5 Hz
< 3-4 Hz
Motor Control
2
Motor Control
41
