1 How to Programme
Group no.
Parameter group:
0
Operation/Display
1
1
Load/Motor
2
Brakes
3
References/Ramps
4
Limits/Warnings
5
Digital In/Out
6
Analog In/Out
8
Comm. and Options
9
Profibus
10
CAN Fieldbus
11
LonWorks
13
Smart Logic
14
Special Functions
15
Drive Information
16
Data Readouts
18
Data Readouts 2
20
Drive Closed Loop
21
Ext. Closed Loop
22
Application Functions
23
Time-based Functions
24
Fire Mode
25
Cascade Controller
26
Analog I/O Option MCB 109
Table 1.2: Parameter groups.
After selecting a parameter group, choose a parameter by means of the
navigation keys.
The middle section on the GLCP display shows the parameter number and
name as well as the selected parameter value.
1.1.11 Changing Data
The procedure for changing data is the same whether you select a parameter in the Quick menu or the Main menu mode. Press [OK] to change the
selected parameter.
The procedure for changing data depends on whether the selected parameter represents a numerical data value or a text value.
1.1.12 Changing a Text Value
If the selected parameter is a text value, change the text value by means
of the up/down navigation keys.
The up key increases the value, and the down key decreases the value.
Place the cursor on the value to be saved and press [OK].
16

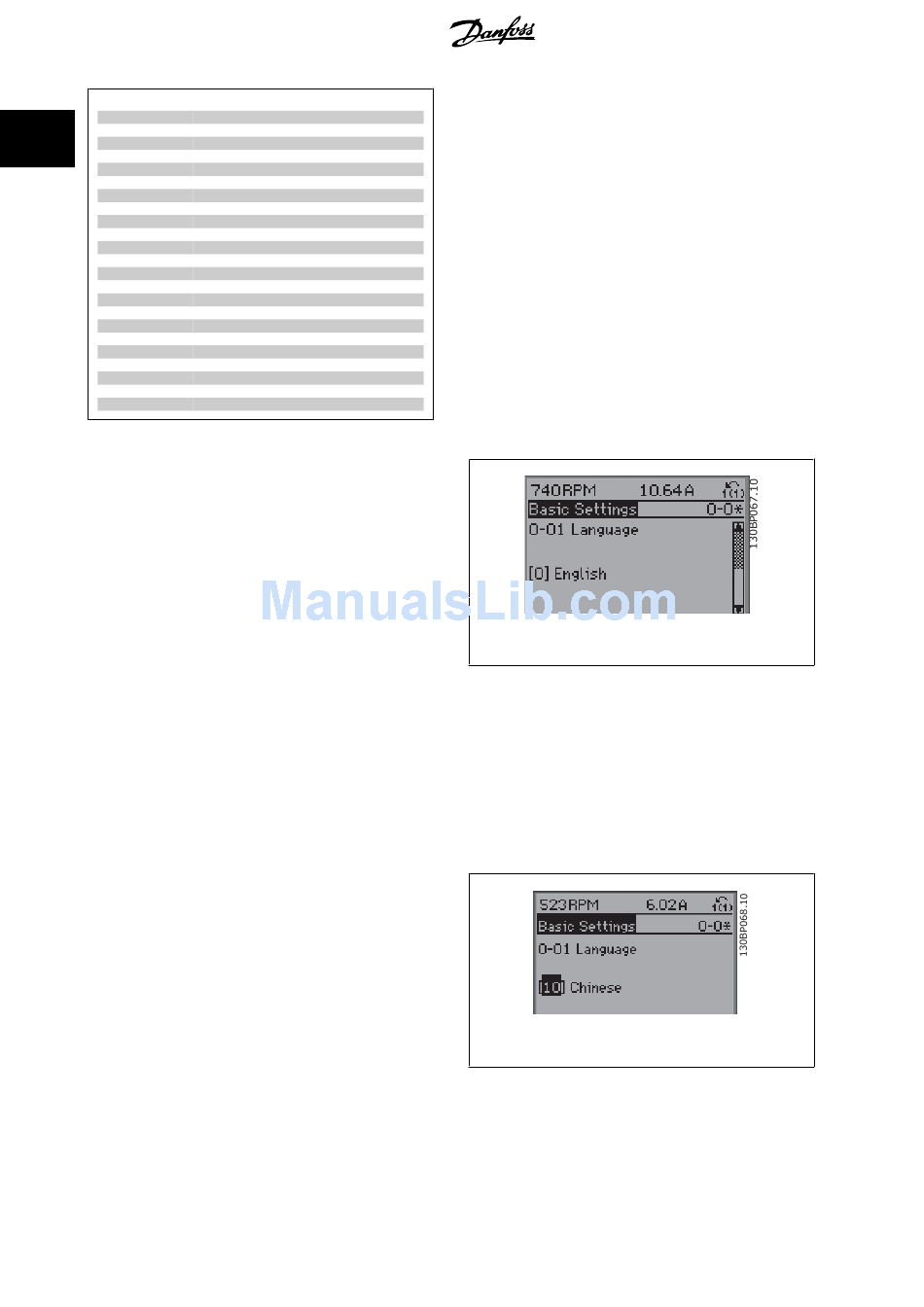

Illustration 1.15: Display example.
Illustration 1.16: Display example.
®
