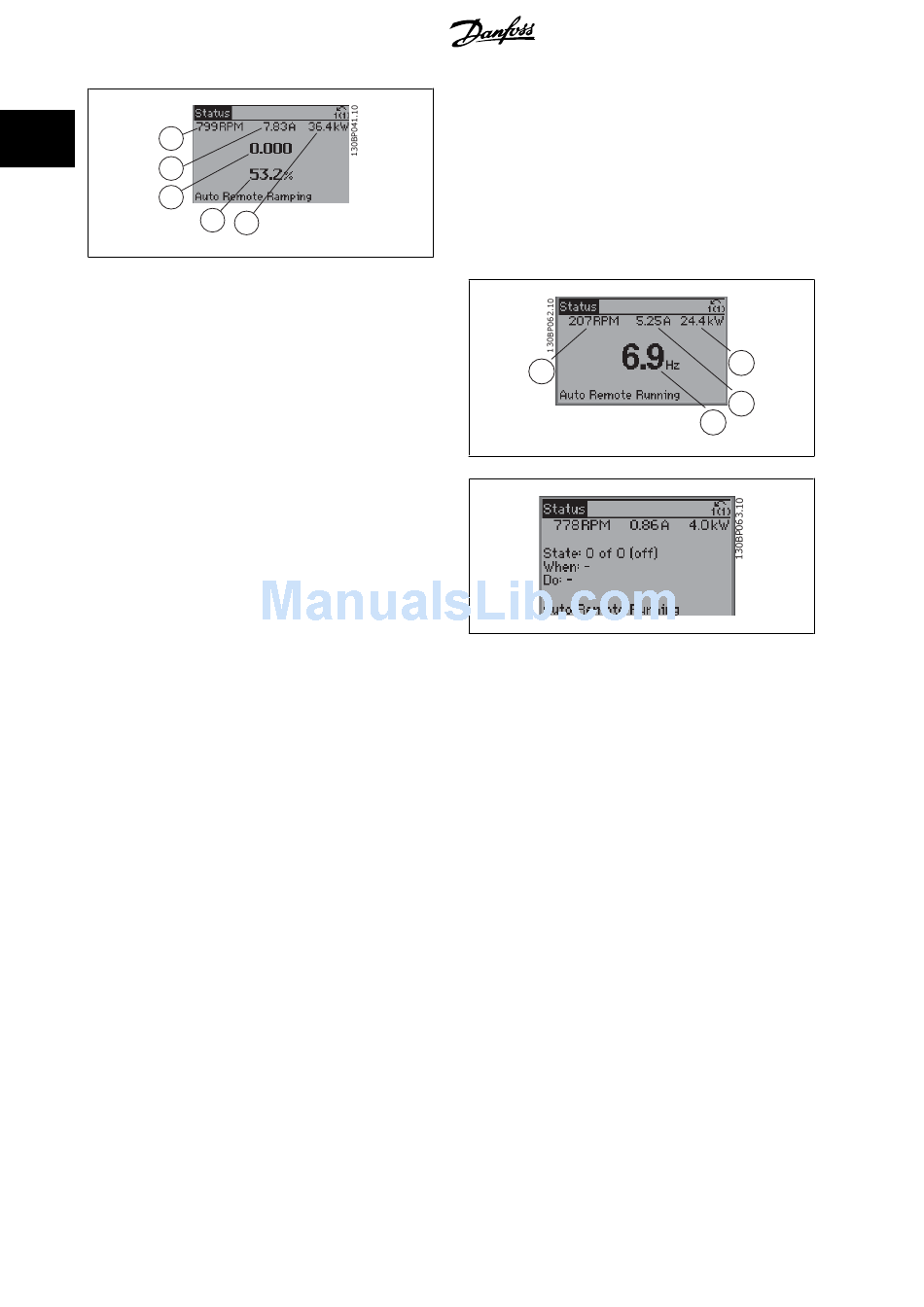

Status screen II:
See the operating variables (1.1, 1.2, 1.3, and 2) shown in the screen in
this illustration.
In the example, Speed, Motor current, Motor power and Frequency are
selected as variables in the first and second.
1.1, 1.2 and 1.3 are shown in small size. 2 is shown in large size.
In both status screen I and II it is possible to select other operating var-
▲
▼
iables by pressing
or
Status screen III:
This state displays the event and action of the Smart Logic Control. For
further information, see section
10
1.3
.
Smart Logic Control
.
MG.20.O4.02 - VLT
®
VLT
1.1
®
is a registered Danfoss trademark
AQUA Drive Programming Guide
