DESCRIPTION OF THE DOOR PANEL

Description of the Nexa modular door panel:

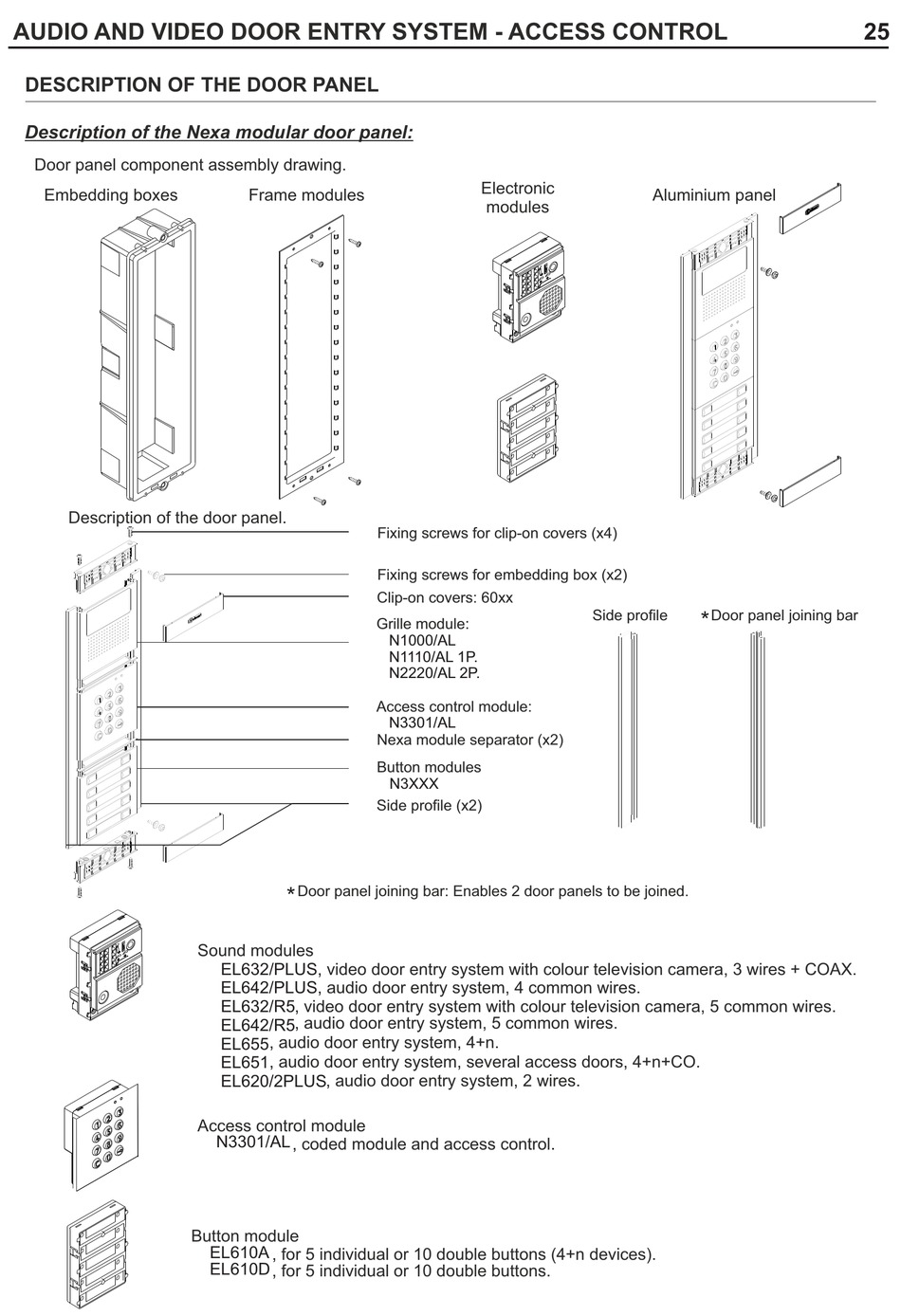

Door panel component assembly drawing.
Embedding boxes
Description of the door
Frame modules
panel.
Door panel joining bar: Enables 2 door panels to be joined.
*
Sound modules
EL63 PLUS 2/
, video door entry system with colour television camera, 3 wires + COAX.
EL642/PLUS , audio door entry system, 4 common wires.
, video door entry system with colour television camera, 5 common wires.
EL632/R5
, audio door entry system, 5 common wires.
EL642/R5
, audio door entry system, 4+n.
EL655
, audio door entry system, several access doors, 4+n+CO.
EL651
EL620/2PLUS , audio door entry system, 2 wires
Access control module
N3301/AL ,
coded module and access control
Button module
EL610A
, for 5 individual or 10 double buttons (4+n devices).
EL610D
, for 5 individual or 10 double buttons
Electronic
modules
Fixing screws for clip-on covers (x4)
Fixing screws for embedding box (x2)
Clip-on covers: 60xx
Grille module:
N1000/AL
N1110/AL 1P.
N2220/AL 2P.
Access control module:
N3301/AL
Nexa module separator (x2)
Button modules
N3XXX
Side profile (x2)
Aluminium panel
Side profile Door panel joining bar
*
.
.
.
