AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL WITH DISPLAY
DESCRIPTION OF THE MONITOR

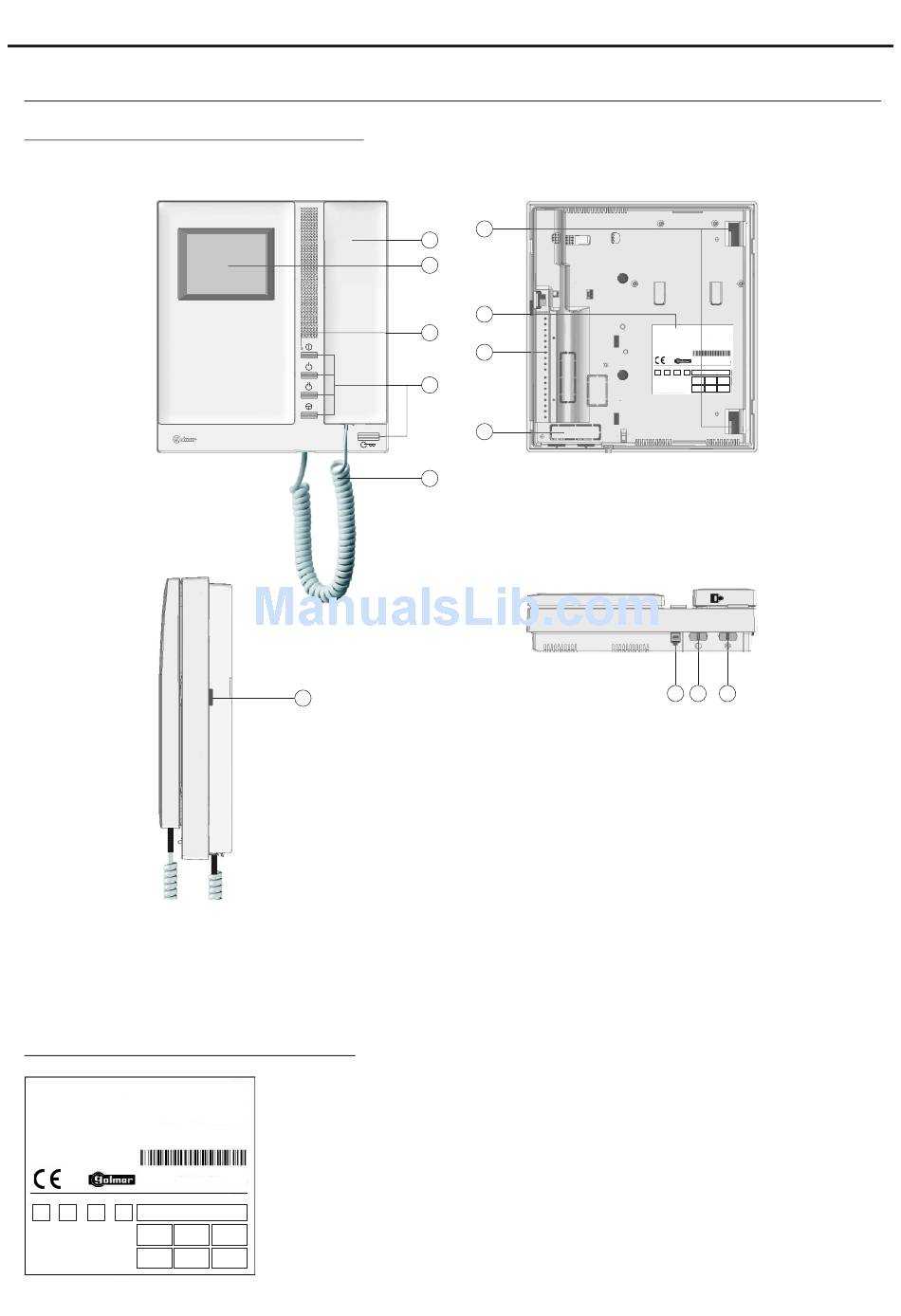

Description of the Tekna Plus monitor:

Description of the identification label:
TEKNA PLUS COLOR
11742004
v.xx
00000000000
INTER A1 SLAVE MASTER
ATENCIÓN
ESCALERA
Alta tensión. No abrir la tapa.
Manipular sólo por personal
STAIR FLOOR
del servicio técnico.
WARNING
High voltage. Don't open cover.
Handle only by technical service.
j
To facilitate repair, replacement or the addition of monitors to the existing installation, fill
REF.
in the label with the relevant information.
CODE
MASTER: main monitor.
SLAVE: secondary monitor.
SN
INTER: secondary monitor with intercom function.
A1: monitor connected to an auxiliary device.
CODE
CODE: call button code.
STAIR: code of the channel (building).
PISO PUERTA
DOOR
f
a
b
g
c
h
d
I
e
a. Handset.
b. Colour screen.
c. On-Off light indicator.
d. Function buttons.
e. Telephone cord.
f . Connector fixings.
g. Identification label.
h. Connector connection points.
i . CN4 connector.
j . Three position volume control.
k. Cord connector.
l . C olour control.
m. Brightness control.
REF.
TEKNA PLUS COLOR
CODE
11742004
v.xx
SN
00000000000
INTER A1 SLAVE MASTER CODE
ATENCIÓN
ESCALERA PISO PUERTA
Alta tensión. No abrir la tapa.
Manipular sólo por personal STAIR FLOOR DOOR
del servicio técnico.
WARNING
High voltage. Don't open cover.
Handle only by technical service.
m
k l
146
