AUDIO AND VIDEO DOOR ENTRY SYSTEM - ACCESS CONTROL
MODULE PROGRAMMING
Programming fields:
Continued from previous page
Field "4": Set the outputs.
Enables the setting of the relay 1 and relay 2 outputs and the panic output (terminal "P" on the connector).
The setting of the relay 1, relay 2 and panic outputs is common to all valid user pins.
The relay 1, relay 2 and panic outputs can be activated in impulse mode (01 to 99 seconds) or stable mode.

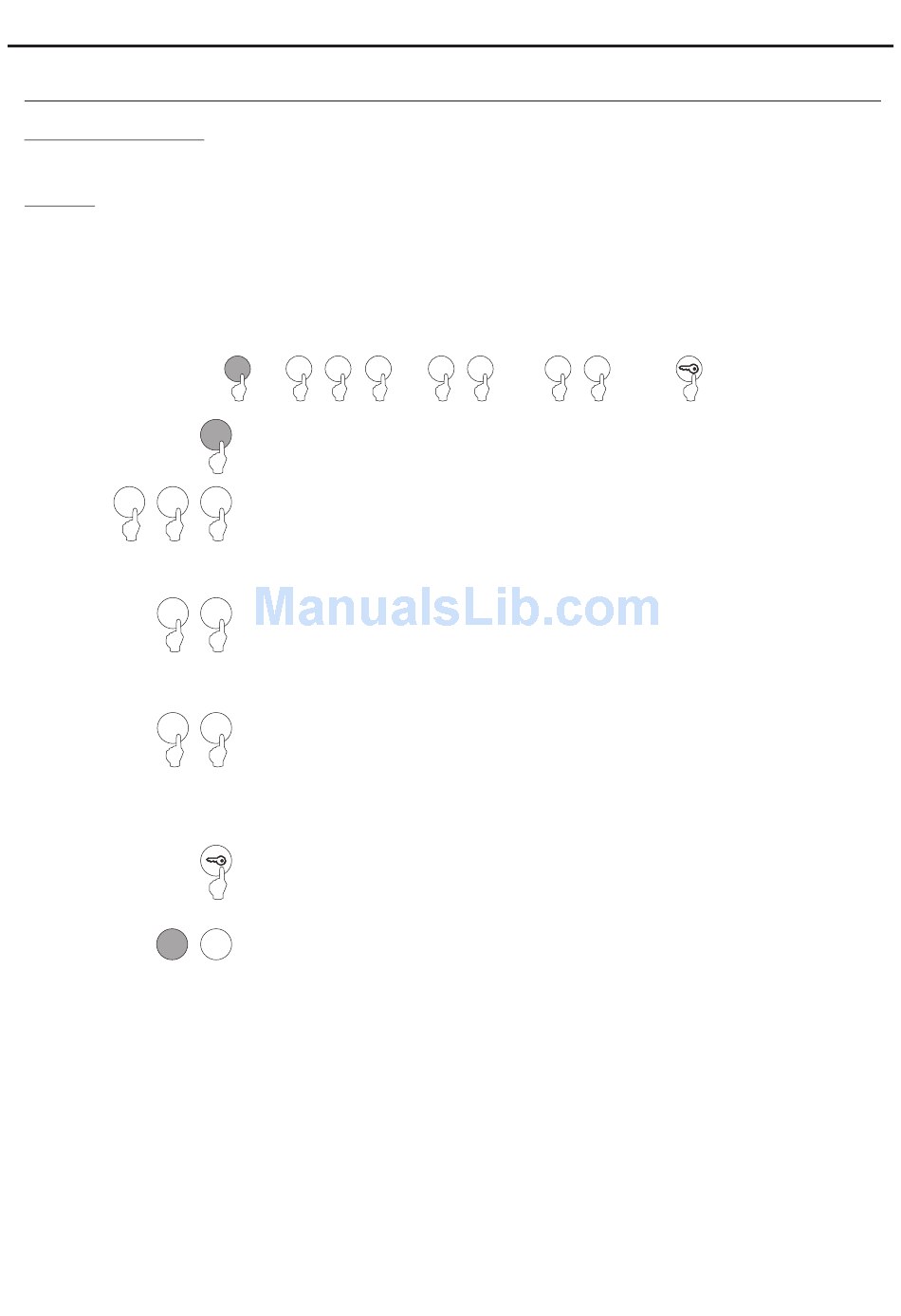

Steps: Field +
(Step ) 1
1 2
(Step ) 2
or
0
(Step 3)
0
(Step ) 4
(Step ) 5
5
(Step ) 6
output number + output mode + activation time + key button.
4 1 2
or
or
4
Press "4" to select field "4".
Set the output to be selected for configuration.
4
or
Enter one of the following options:
"1": Select the relay 1 output.
"2": Select the relay 2 output.
"4": Select the panic output.
1 Set the activation mode of the output selected in step 2. Enter one of the following options:
or
"0": Impulse mode.
"1": Stable mode.
1 Set the activation time of the output selected in step 2. Only takes effect if the output is set
as impulse in step 3.
Enter a value from "01" to "99" seconds or press the key button.
Note: If the key button is pressed, this field is set with a value of "03" seconds and the
( )
*
programming of the field finishes.
Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already been pressed in step 4.
C
Then press the number of the next field to configure or press the C button (cancel) to exit
or
programming mode.
4 0 1
or
0 1
( )
*
