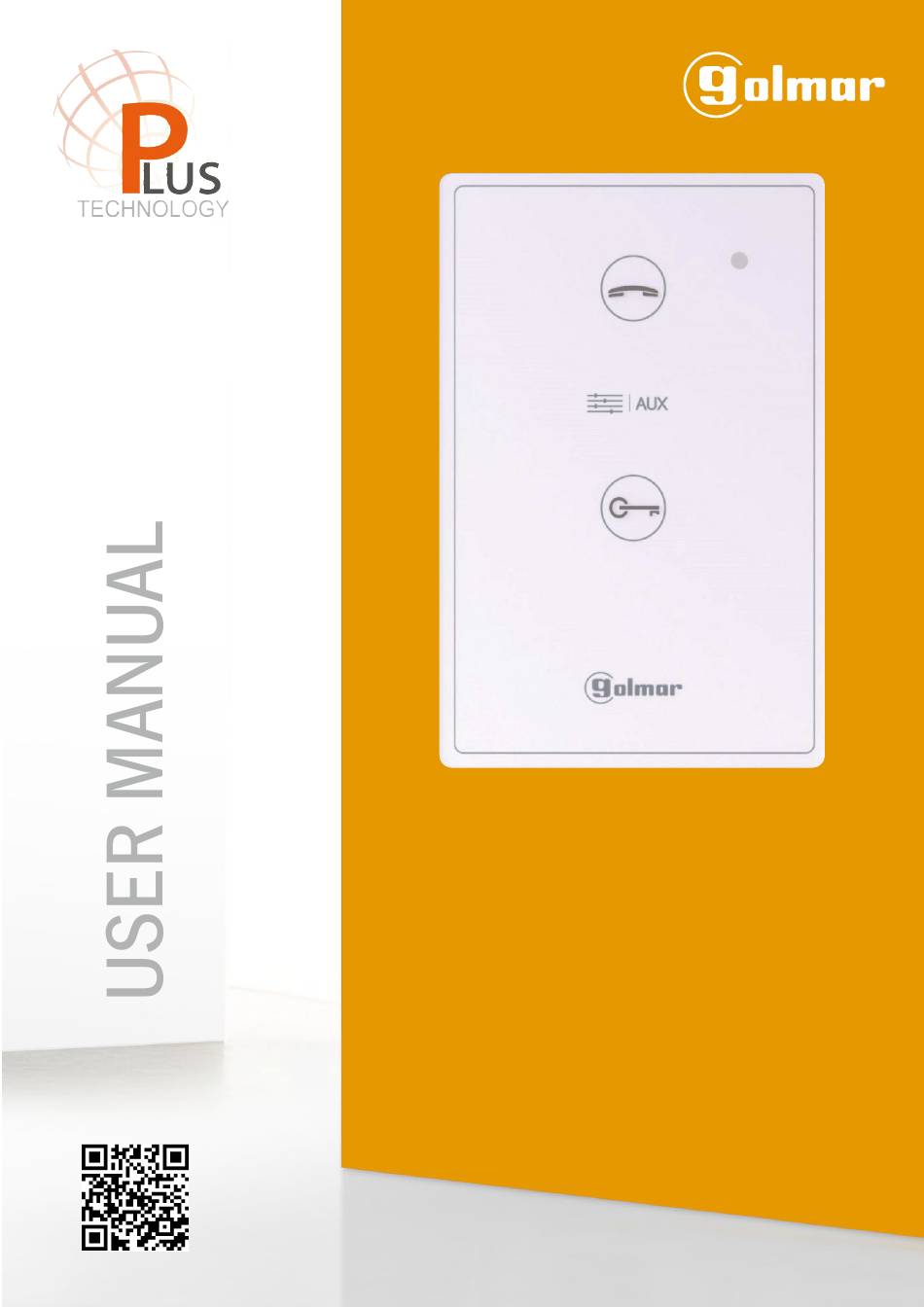

  • Page 1 NHEA PLUS SE TERMINAL PLUS DIGITAL SYSTEM Code 50123372 REV.0219 TNHEA PLUS SE...

  • Page 2: Table Of Contents

    All of the wiring must run at least 40cm away from any other wiring. Install the Nhea Plus SE terminal in a dry protected location free from the risk of dripping or splashing water. Do not place in humid, dusty or smoky locations, or near sources of heat.

  • Page 3: Characteristics

    NHEA PLUS SE HANDS-FREE AUDIO TERMINAL CHARACTERISTICS Nhea Plus SE hands-free audio terminal for Plus installation. Terminal with 4 common wire installation. Function and advanced programming access buttons (to customise terminal functions). Totally private conversation. Auto switch-on function. 'Doctor mode' function (automatic door opening, see p. 9). Intercom between two devices in the same apartment.

  • Page 4: Description Of The Terminal

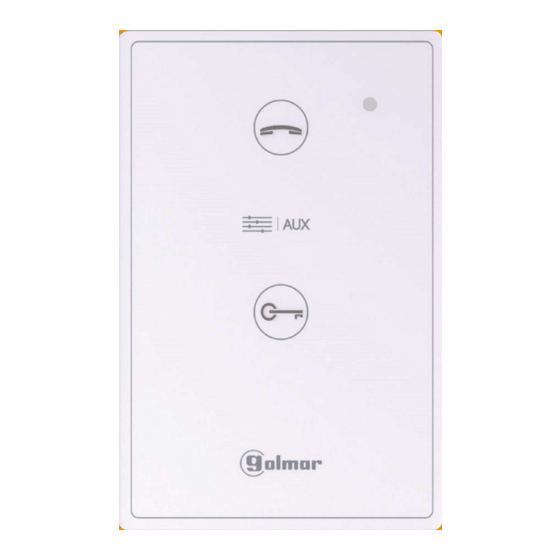

    NHEA PLUS SE HANDS-FREE AUDIO TERMINAL DESCRIPTION OF THE TERMINAL Description of the NHEA PLUS SE terminal Status LED. Microphone. Standby: LED illuminated red. Speaker. Call: LED illuminated green. Connector fixings. (master Nhea terminal). Con ector Communication: LED illuminated green.

  • Page 5: Function Buttons

    NHEA PLUS SE HANDS-FREE AUDIO TERMINAL DESCRIPTION OF THE TERMINAL Function buttons: Start/stop communication button. With the terminal in standby: A short 1-second press activates the terminal in function mode (for 5 seconds). A long 3-second press turns off the terminal. With the terminal turned off, one short 1-second press turns on the terminal (over the next 45 seconds, no operation can be performed in 'function mode').

  • Page 6: Installing The Terminal In A Wall Mounting Connector

    NHEA PLUS SE HANDS-FREE AUDIO TERMINAL INSTALLING THE TERMINAL IN A WALL MOUNTING CONNECTOR Avoid dusty or smoky environments or locations near sources of heat. Positioning the wall mounting connector: The top of the connector must be positioned at a height of 1.60m. The minimum distance between the sides of the connector and the closest object must be 5cm.
  • Page 7 NHEA PLUS SE HANDS-FREE AUDIO TERMINAL INSTALLATION OF THE TERMINAL IN AN EMBEDDING BOX Avoid dusty or smoky environments or locations near sources of heat. Location of the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.60 m from the ground. The minimum distance between the sides of the embedding box and the closest object must be 5cm.

  • Page 8: Programming The Terminal

    NHEA PLUS SE HANDS-FREE AUDIO TERMINAL PROGRAMMING THE TERMINALS Programming the NHEA Plus SE terminals: Locate the SW2 DIP switch situated on the top left-hand side of the back of the EL632/PLUS module and set number 2 to ON. The door panel will reproduce a sound to advise that the system has entered into programming mode.

  • Page 9: Advanced Programming (Terminal Functions)

    NHEA PLUS SE HANDS-FREE AUDIO TERMINAL PROGRAMMING THE TERMINALS Advanced programming of the NHEA Plus SE terminals: Advanced programming enables the terminal's default settings to be changed: Turn off the terminal to be programmed (press button for 3 seconds). Once switched off, press button for 3 seconds to enter 'Menu 1' of advanced programming, the terminal will emit a number of tones and the LED will illuminate yellow.

  • Page 10: Repeating The Ringtones

    NHEA PLUS SE HANDS-FREE AUDIO TERMINAL PROGRAMMING THE TERMINALS Continued from previous page Changing the function of button : Auto switch-on function (default setting). Select the function to assign to button : Each press on button selects a different function which is indicated with blinks (1 to 3 blinks) of the status LED and in the following order: activation of auxiliary device 'A1,' call to secondary guard unit, auto switch-on.

  • Page 11: Setting All Of The Terminal's Advanced Programming Options To The 'Default Value

    NHEA PLUS SE HANDS-FREE AUDIO TERMINAL PROGRAMMING THE TERMINALS Continued from previous page Men 4: Then adjust the settings as required: Setting all of the terminal's advanced programming options to the 'default value' Setting to the 'default value': Press button , and the terminal will indicate with two audible tones that all of the options of the terminal's advanced programming (p.

  • Page 12: Optional Connections

    NHEA PLUS SE HANDS-FREE AUDIO TERMINAL OPTIONAL CONNECTIONS Activation of auxiliary devices with NHEA Plus SE terminals: Auxiliary device activation requires the use of an SAR-12/24 relay unit. If the feature is shared by all terminals, connect their A1 terminals; if, however, each terminal has its own feature, use an SAR-12/24 relay for each one and do not connect their A1 terminals.
  • Page 13 Continued from previous page. Intercom between two points in the same apartment: The NHEA Plus SE terminal features as standard an intercom function between two points in the same apartment. To enable this function, the following is necessary: One of the terminals needs to be configured as master and the other as slave with intercom, as described on p.

  • Page 14: Button For Receiving Calls From The Apartment Front Door

    Button for receiving calls from the apartment front door: The NHEA Plus SE terminal features as standard the ability to receive calls from the apartment front door. This feature precludes the need to use the bell by positioning a switch between terminals 'HZ—' and '—' of the terminal.

  • Page 15: Wiring Diagram

    Place this power supply as close as possible to the first terminal. FA-Plus/C or FA-Plus Mesh out+ out- Mains lock release Important: For further information about the door panel, sections, distances, other wiring diagrams, etc., see the T632 PLUS P/T ML Manual. https://doc.golmar.es/search/manual/50122328...
  • Page 16 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
