DOOR PANEL DESCRIPTION (NEXA MODULAR)

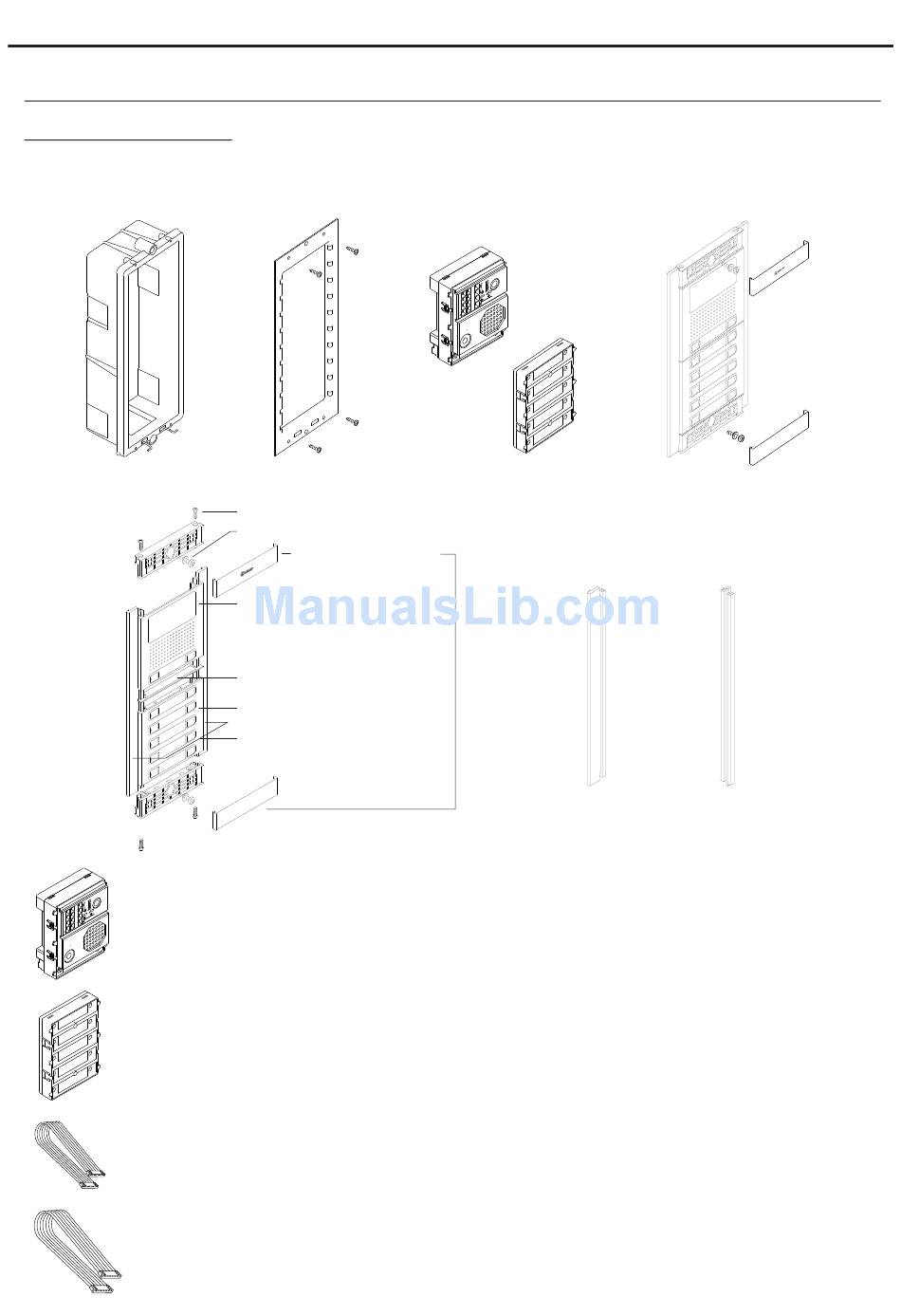

Door panel description:

General detail of parts, for assembly the door panel.
Embedding boxes
Door panel description.
Sound module
EL632/GB2
Push buttons electronic module
EL610D
Short connection cable, it is supplied with EL610D module (16 cm length).
For the connection of the push buttons between the sound module and the push buttons
Connection cable RAP-610D (27 cm length).
For the connection of the push buttons between the sound module and the push buttons
This cable is necessary when the distance between modules to connecting is greater due to
Frame modules
Screws of fixation of header (x4)
Screws of fixation of embedding box (x2)
Closing heads: 60xx
Grille module:
N1000/AL
N1110/AL 1P.
N2220/AL 2P.
Nexa spacer module
Push buttons module: 3xxx
Lateral rod (x2)
Door panel UNE rod: It allows to join 2 door panels, (see page 18).
*
, on video systems with color camera.
, for 5 single push buttons or 10 double push buttons.
module EL610D and between push buttons modules EL610D.
module EL610D and between push buttons modules EL610D.
the distribution of these modules in the door panel(s).
Electronic
Aluminium door panel
modules
Lateral rod Door panel UNE rod
*
4
