golmar NEXA User Manual page 83

AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED DOOR PANEL
PROGRAMMING THE DOOR PANEL
Programming fields:
Continued from previous page
Field "1": Programming a new activation code (user).
Allows new user pins (from "0000" to "9999") to be created and outputs to be assigned for activation with the created
codes.
Note: Depending on the number of digits configured in field "0" (factory setting = 4).
Number of digits = 4, user pin from "0000" to "9999".
Number of digits = 5, user pin from "00000" to "99999".
Number of digits = 6, user pin from "000000" to "999999".

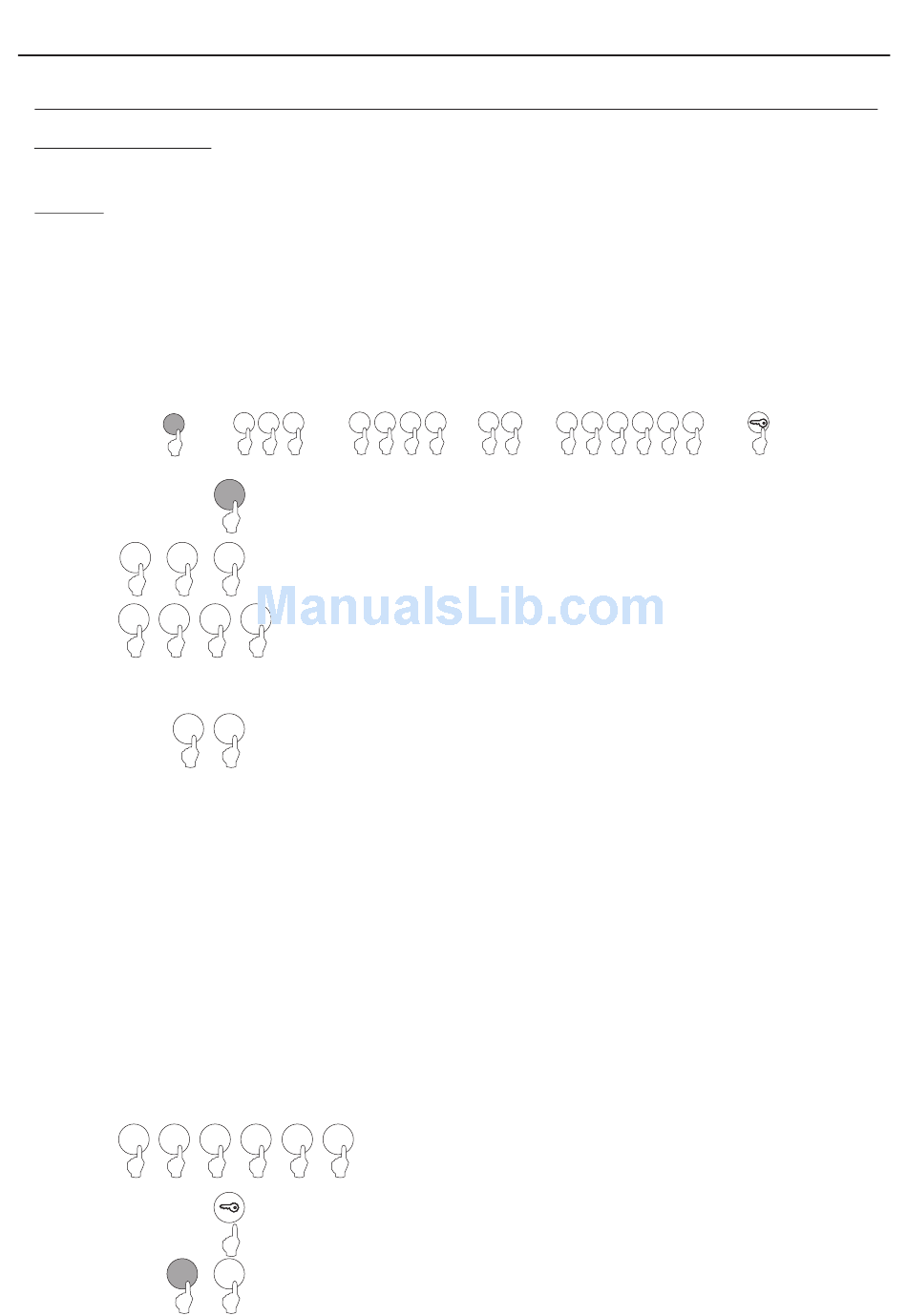

Steps: Field + memory position +
1
(Step 1)
0 0
(Step ) 2
0 0
(Step 3)
0
(Step 4)
0 0
(Step 5)
(Step 6)
2
(Step 7)
user pin
0 0 0 0
0 0 1
1 Press "1" to select field "1".
Set the memory position number for the location of the new user pin.
1
Possible memory positions: "001" to "999".
Set the user pin. Possible user pins: "000000" to "999999" with "6" digits. Factory
0 0
setting of "4" digits: "0000" to "9999".
(see example of number of digits on page 82, step 2).
Duplicate user pins are not allowed.
Set the output(s) that the user pin entered in step 3 will activate. Enter one of the following
0
options or press the key button:
"00" : relay 1 + relay 2 + panic output (terminal "P" on the terminal block).
"01" : relay 1.
"02" : relay 2.
"03" : relay 1 + relay 2.
"04" : panic output (terminal "P" on the terminal block).
"05" : relay 1 + panic output (terminal "P" on the terminal block).
"06" : relay 2 + panic output (terminal "P" on the terminal block).
"07" : relay 3 (contacts CV1 and CV2 on the sound module).
"08" : relay 3 + relay 1.
"09" : relay 3 + relay 2.
"10" : relay 3 + relay 1 + relay 2.
"11" : relay 3 + panic output (terminal "P" on the terminal block).
"12" : relay 3 + relay 1 + panic output (terminal "P" on the terminal block).
"13" : relay 3 + relay 2 + panic output (terminal "P" on the terminal block).
"14" : relay 3 + relay 1 + relay 2 + panic output (terminal "P" on the terminal block).
Note: If the key button is pressed, option "1 " is set in this value field: relay
( )
*
relay 2, in the value field "bus code" as "000000" and the programming of the field
finishes. With coded module V03 or later.
0 0 0 0 Enter the apartment code associated with the user. Possible values are
Note: If the key button is pressed, "000000" is set in this value field and
( )
*
Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already been pressed in
step 4 or 5.
C Then press the number of the next field to configure or press the C button (cancel) to exit
or
programming mode.
+ outputs +
0 0
( )
*
between "000000" and "255999" or press the key button.
the programming of the field finishes.
bus code + key button.
0 0 0 0 0 0
0
