golmar Plus Nexa Instruction Manual

golmar Plus Nexa Instruction Manual

Audio and video door entry system
Hide thumbs
Table of Contents

Advertisement

Quick Links

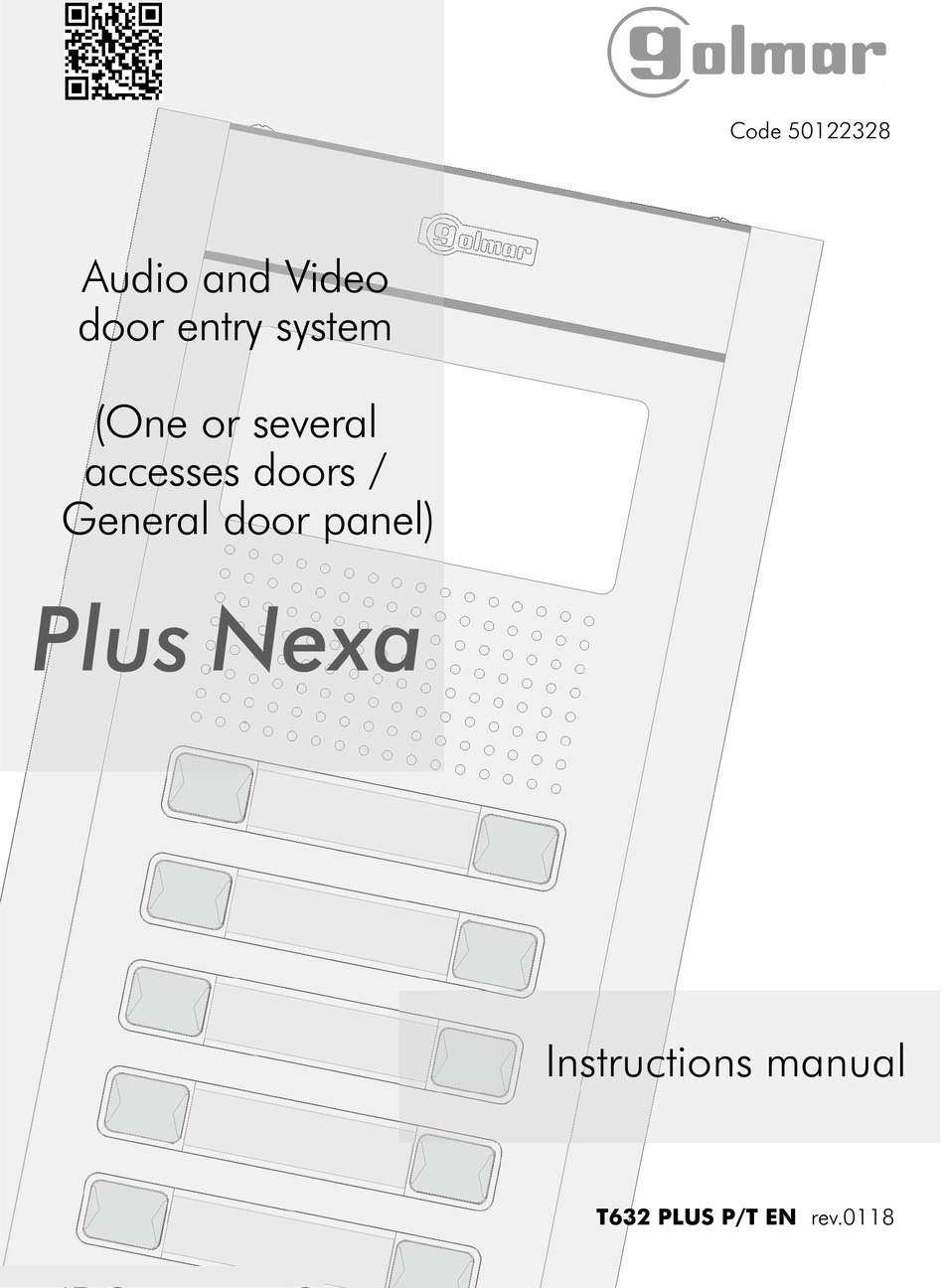

Code 50122328
Audio and Video
door entry system
(One or several
accesses doors /
General door panel)
Plus Nexa
Instructions manual
rev.0118
T632 PLUS
P/T E
N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Plus Nexa and is the answer not in the manual?

Questions and answers

Related Manuals for golmar Plus Nexa

Summary of Contents for golmar Plus Nexa

  • Page 1 Code 50122328 Audio and Video door entry system (One or several accesses doors / General door panel) Plus Nexa Instructions manual rev.0118 T632 PLUS P/T E...

  • Page 2: Table Of Contents

    O Each time the power supply is restarted, or after a modification, the system will remain blocked during 30 seconds. O Always use RG-59 B/U MIL C-17 or RG-11 coaxial cables, (see page 94). Never use coaxial In installations no longers than 100m., cable can be used. antenna cable. Golmar RAP-5130...

  • Page 3: Safety Precautions

    O Monitor Tekna Plus SE: Description, installation, configuration and programming of the monitor (see manual TTEKNA PLUS SE "Code 50123594") available in: https://doc.golmar.es/search/manual/50123594. O Telephone T540 Plus SE: Description, installation, configuration and programming of the telephone (see manual T540 PLUS SE "Cód.

  • Page 4: Important Notice

    IMPORTANT NOTICE IMPORTANT NOTICE Uno system: Tekna Uno monitor T-540 Uno telephone are fully compatible with Tekna Plus monitor 540 Plus telephone. However, a Uno communications resistor must be setting with the SW1 configuration dip switch of the door panel, see page 85 .

  • Page 5: Door Panel Description

    DOOR PANEL DESCRIPTION oor panel description. General detail of parts, for assembly the door panel. Electronic Embedding boxes Frame modules Aluminium modules modules Door panel description. Main module Push buttons module Sound module EL63 Plus P/T , on video systems with color camera. EL64 Plus , on audio systems.

  • Page 6: Modules Description

    MODULES DESCRIPTION ound module description (EL632 Plus P/T and EL642 Plus). Front side. Color camera (only EL632 PLUS module ) Leds (visual indications for people with impaired hearing). illumination Leds (only function with EL632 PLUS module) Speaker. Door panel audio adjustment. Monitor audio adjustment.

  • Page 7: Push Buttons Module El610D

    MODULES DESCRIPTION ush buttons electronic module EL610D description. Front side. Push buttons module (x10). Back side. Input/Output push buttons connector (x3). Configuration dip switch (Push buttons call code). Push button number.

  • Page 8: Embedding Box Positioning

    DOOR PANEL INSTALLATION mbedding box positioning. 1850 1650 1450 The upper part of the door panel should be placed at 1,65m. height roughly. The hole dimensions will depend on the type of door panel. Door panel 90CS Model CEA90C CEV90C CEV90 99 mm.

  • Page 9: Assembly Electronic Modules

    DOOR PANEL INSTALLATION lace the embedding box. Pass the wiring through the hole made in the bottom part of the embedding box. Level and flush the embedding box. Once the embedding box is placed, remove the protective labels from the attaching door panel holes. ssembly the electronic modules.

  • Page 10: Hold The Frame

    DOOR PANEL INSTALLATION old the frame on the embedding box. Insert the hinge that it is supplied with the product in the embedding box, as shown in the drawing. To hold the frame on the embedding box, insert the hinge in the housings arranged for this purpose in the frame, as shown in the drawing.

  • Page 11: Push Buttons Coding

    DOOR PANEL INSTALLATION lug the push buttons with the connection cable RAP-610D. Use the connection cable RAP-610D, for the connection of the push buttons between the sound module and the push buttons module EL610D and between push buttons modules EL610D, when the distance between modules to connecting is greater due to the composition of the door panels.

  • Page 12: Descrip I N T O Bus Nexa Con Ector

    DOOR PANEL INSTALLATION escription CN8 Bus Nexa connector. The connector CN8 Bus Nexa is located at the upper left side of the back of the sound module. Insert the connection cable that it is supplied with the module in the CN8 connector of the sound module and the other end of the connection cable in the module with connector Bus Nexa.

  • Page 13: Descrip Tion Illumination Leds

    DOOR PANEL INSTALLATION escrip tion illumination leds The door panel illumination leds, will turn on during call and communication progresses. Allowing us to see from apartment´s monitor the person who has called. Only EL632 Plus P/T sound module . ) escrip tion visual indications leds Visual indications on the door panel for people with impaired hearing:...

  • Page 14: Sound Module Configuration

    DOOR PANEL INSTALLATION escription of the SW1 configuration dip-switch of the sound module. The SW1 configuration dip-switch is located at the upper right side of the back of the module. The dip-switches without function. Not : e Placed to OFF if the sound module is configured as EL500 operating mode Set to ON if the sound module is configured as EL501 operating mode (general door panel).
  • Page 15 DOOR PANEL INSTALLATION escription of the SW2 configuration dip-switch of the sound module. The SW2 configuration dip-switch is located at the upper left side of the back of the module. Allows to activate the autoswitch-on function (audio-video communication without previous call) at the door panel that has this switch to ON position. In systems with several door panels activate this function only in one of them;...

  • Page 16: Programming (General Panel)

    GENERAL DOOR PANEL INSTALLATION eneral door panel (programming modes). Configure the sound module of the general door panel in EL501 mode, (see page 85). The general door panel permits the following programming modes: O Programming the push button (by call of monitor). O Programming the push button (with a backbone code).

  • Page 17: Door Panel

    GENERAL DOOR PANEL INSTALLATION Programming the push button ( with a backbone code This programming mode allows to assign a backbone code to push button of the general door panel. Locate the SW2 configuration dip switch of the general door panel to program, placed at the upper left side (back) of the sound module.

  • Page 18: Description Cn3 Connector

    GENERAL DOOR PANEL INSTALLATION rogramming the monitors and telephones from a general door panel. Programming the monitor/telephone: This programming mode allows to assign to a monitor / telephone a push button of the general door panel that it wishes to call. Before the push button of the general door panel must be programmed with backbone and monitor/telephone code, (see page 88).

  • Page 19: Final Adjustments

    DOOR PANEL INSTALLATION inal adjustments. If after starting the system it 's considered that the audio volume isn 't correct, proceed with the necessary adjustments as shown in the drawing The telecamera has a pan and tilt mechanism built in to adjust the telecamera position.

  • Page 20: Door Panel Assembly

    DOOR PANEL INSTALLATION oor panel assembly. In assemblies of a single door panel, it is ready from factory to be mounted. If the door panel to installing is of more than one module it will be necessary make some adjustments to join a door panel with other one.

  • Page 21: Power Supply Installation

    . In case of wood door, use a Ø3mm. drill M 4 x 8 DIN-963 IMPORTANT: - The lock relese must be of (Golmar) d.c or a.c See page 1 (a.c lock release) and pages to 1 (d.c lock release - A varistor is supplied with the sound module.

  • Page 22: Installation Diagrams

    INSTALLATION DIAGRAMS Take off JP1 jumper of all the distributors except in the last one. D4L-PLUS Malla Malla D4L-PLUS Malla Malla M =Master. S =Slave. Access door panel Place this power supply as closest as possible to the first distributor. FA-Plus/C o FA-Plus Malla out+...
  • Page 23 ONE OR SEVERAL ACCESSES DOORS ideo installation with coaxial cable. The installation diagram shows the connection of a video system with one or several door panels for the same building. If the system has one access door panel only, override the wiring to the second door panel. If the system has more than one access door panel, wire the second panel as shown on the diagram.

  • Page 24: Video Installation Without Coaxial

    INSTALLATION DIAGRAMS EL562 EL562 * Take off JP1 jumper of all the distributors except in the last one. D6L-Plus/2H EL562 EL562 D6L-Plus/2H M =Master. S =Slave. Access door panel * Place this power supply as closest as possible to the first distributor. FA-Plus/C o FA-Plus Malla out+...
  • Page 25 ONE OR SEVERAL ACCESSES DOORS ideo installation without coaxial cable. The installation diagram shows the connection of a video system with one or several door panels for the same building. If the system has one access door panel only, override the wiring to the second door panel. If the system has more than one access door panel, wire the second panel as shown on the diagram.

  • Page 26: Audio Installation

    INSTALLATION DIAGRAMS T-540 Plus SE T-540 Plus SE T-540 Plus SE T-540 Plus SE M =Master. S =Slave. Access door panel *Place this power supply as closest as possible to the first telephone. FA-Plus/C o FA-Plus Malla out+ out- Lock release Main Vd.c.
  • Page 27 ONE OR SEVERAL ACCESSES DOORS udio installation. The installation diagram shows the connection of an audio system with one or several door panels for the same building. If the system has one access door panel only, override the wiring to the second door panel. If the system has more than one access door panel, wire the second panel as shown on the diagram.
  • Page 28 INSTALLATION DIAGRAMS Inner door panel BACKBONE 1 EL500 mode To monitors FA-Plus o FA-Plus/C Malla out+ out- Lock release Main Vd.c. D4L-PLUS BACKBONE 0 General door panel EL501 mode M =Master. S =Slave. FA-Plus/C 110 0 Malla out+ out- Lock release Main Vd.c.
  • Page 29 GENERAL DOOR PANEL Inner door panel BACKBONE 2 EL500 mode To monitors FA-Plus o FA-Plus/C Malla out+ out- Lock release Main Vd.c. D4L-PLUS General door panel BACKBONE 0 EL501 mode FA-Plus/C 110 0 Malla out+ out- Lock release Main Vd.c.
  • Page 30 INSTALLATION DIAGRAMS Inner door panel BACKBONE 119 EL500 mode To monitors FA-Plus o FA-Plus/C Malla out+ out- Lock release Main Vd.c. D4L-PLUS ideo installation with general door panel to large residential complexes. IMPORTANT NOTES: To install and configure properly, d o always follow the enclosed information. The installation diagram shows the connection of a video system with two general door panels and up to 120 inner door panels (backbones/buildings).
  • Page 31 GENERAL DOOR PANEL Inner door panel BACKBONE 120 EL500 mode To monitors FA-Plus o FA-Plus/C Malla out+ out- Lock release Main Vd.c. ideo installation with general door panel to large residential complexes. SECTIONS CHART Distance Terminal 100m. 300m. +, , CV1, CV2 –...
  • Page 32 INSTALLATION DIAGRAMS To telephones BACKBONE 1 Inner door panel EL500 mode FA-Plus o FA-Plus/C Malla out+ out- Lock release Main Vd.c. General door panel EL501 mode BACKBONE 0 M =Master. S =Slave. FA-Plus/C 110 0 Malla out+ out- Lock release Main Vd.c.
  • Page 33 GENERAL DOOR PANEL To telephones BACKBONE 120 Inner door panel EL500 mode FA-Plus o FA-Plus/C Malla out+ out- Lock release Main Vd.c. udio installation with general door panel to large residential complexes. IMPORTANT NOTES: To install and configure properly, d o always follow the enclosed information. The installation diagram shows the connection of an audio system with one general door panel and up to 120 inner door panels (backbones/buildings).
  • Page 34 INSTALLATION DIAGRAMS onnexion of an a.c. lock release. If an alternating current lock release has been installed, use a TF-104 transformer and connect it to the lock release as it is shown on the diagram. FA-PLUS/C EL632 PLUS P/T TF-104 EL642 PLUS ~ ~ ~ ~ 230110 0...

  • Page 35: Optional Connections

    OPTIONAL CONNECTIONS xternal lock release activation. Door panel The lock release can be activated at any moment by using an external push button, that must be connected between 'AP' and ' ' – terminals of the connector Cn3 from door panel (see page 89). Door opening timed at 3 or 15 seconds, with the help of the dip switch SW1-2 (see page 85).

  • Page 36: Troubleshooting Hints

    TROUBLESHOOTING HINTS An easy way to check that the system is working properly is to disconnect the wiring from the door panel and to check the monitor directly connected to the sound module. No shortcircuit will damage the connected units, with the exception of a shortcircuit between CTO and ' ' – monitor or distributor terminals.
