AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED DOOR PANEL

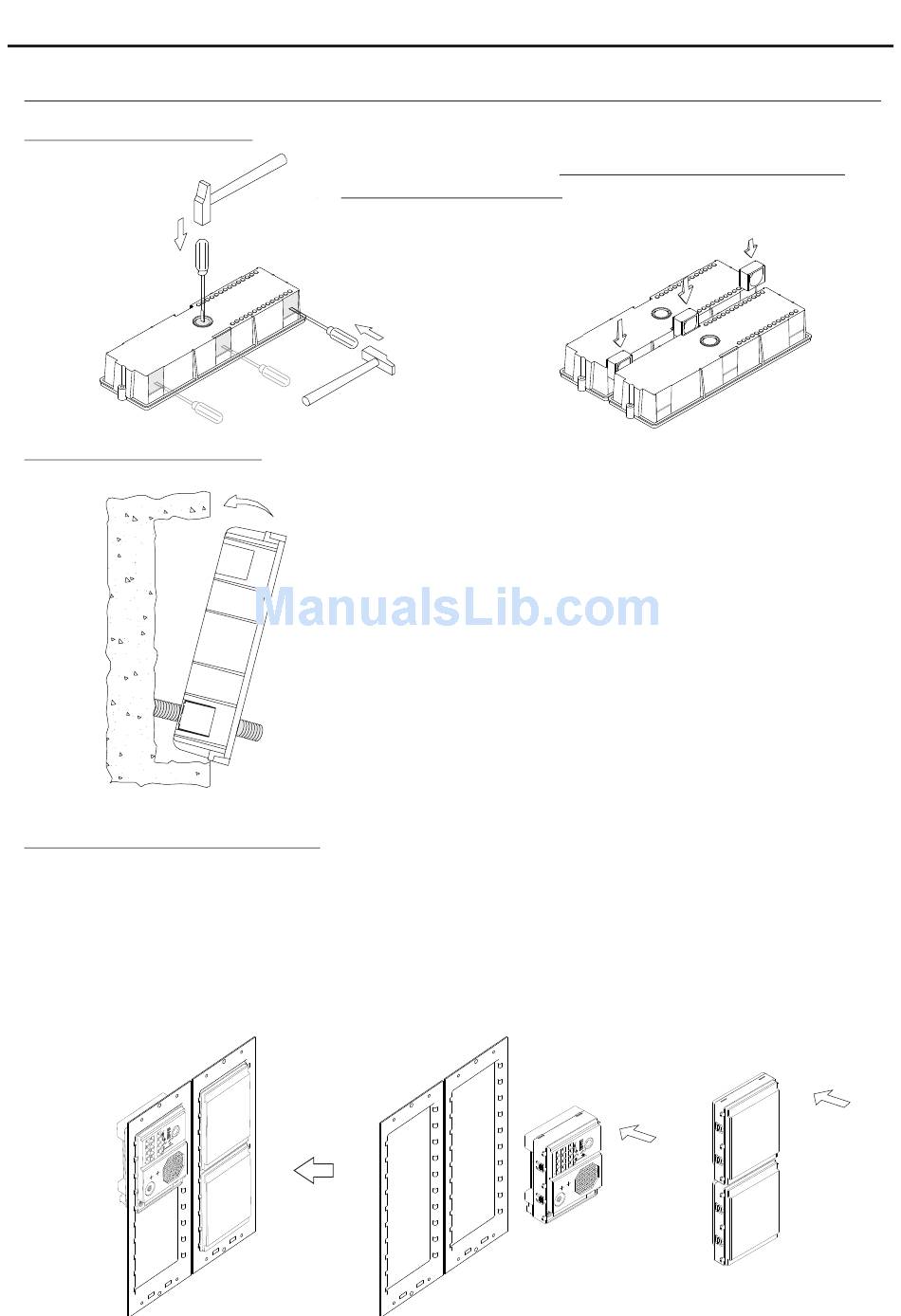

INSTALLATION OF THE DOOR PANEL
Preparing the cable entry:
Fitting the embedding box:
Mounting the electronic modules:
Insert the sound module into the top of the frame module.
Line up the clips on the sound module with the respective housings on the frame module and
then press gently until correctly positioned.
If there is a lighting module, repeat the above process, positioning it below the sound module or
the other frame if any, as shown in the drawing.
Break through the hole to allow entry of cables through the bottom
part of the embedding box.
than one embedding box, break through the side holes and join the
embedding boxes using cable grommets.
Pass the cable through the hole made in the
embedding box. Embed the box and ensure
that it is level and flush. Once the embedding
box is positioned, remove the protective stickers
from the door panel's fixing holes.
In the case of door panels with more
Sound module
EL632/PLUS
EL642/PLUS
EL632/R5
EL642/R5
77
Lighting modules
EL3002
