Programming Tekna R5 Monitors - golmar NEXA User Manual

AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL WITH DISPLAY
PROGRAMMING THE MONITORS

Programming Tekna R5 monitors:

CONFIGURATION
****
1 0
Master Slave
Each apartment must only have one master unit; if there are parallel units, whether monitors or telephones, they must be
configured as slaves.
Make a call to check that the monitor has been successfully programmed. Programme the other
telephones in the same way.
1 0
After programming, press button C.
IMPORTANT:
If the installation has a CD-PLUS/R5 converter with coded panel or guard unit, the programming codes assigned to the
monitors must be between 1 and 250. To make it easier for the user to make a call, another parallel code can be assigned
in a 2nd assignment table.
2

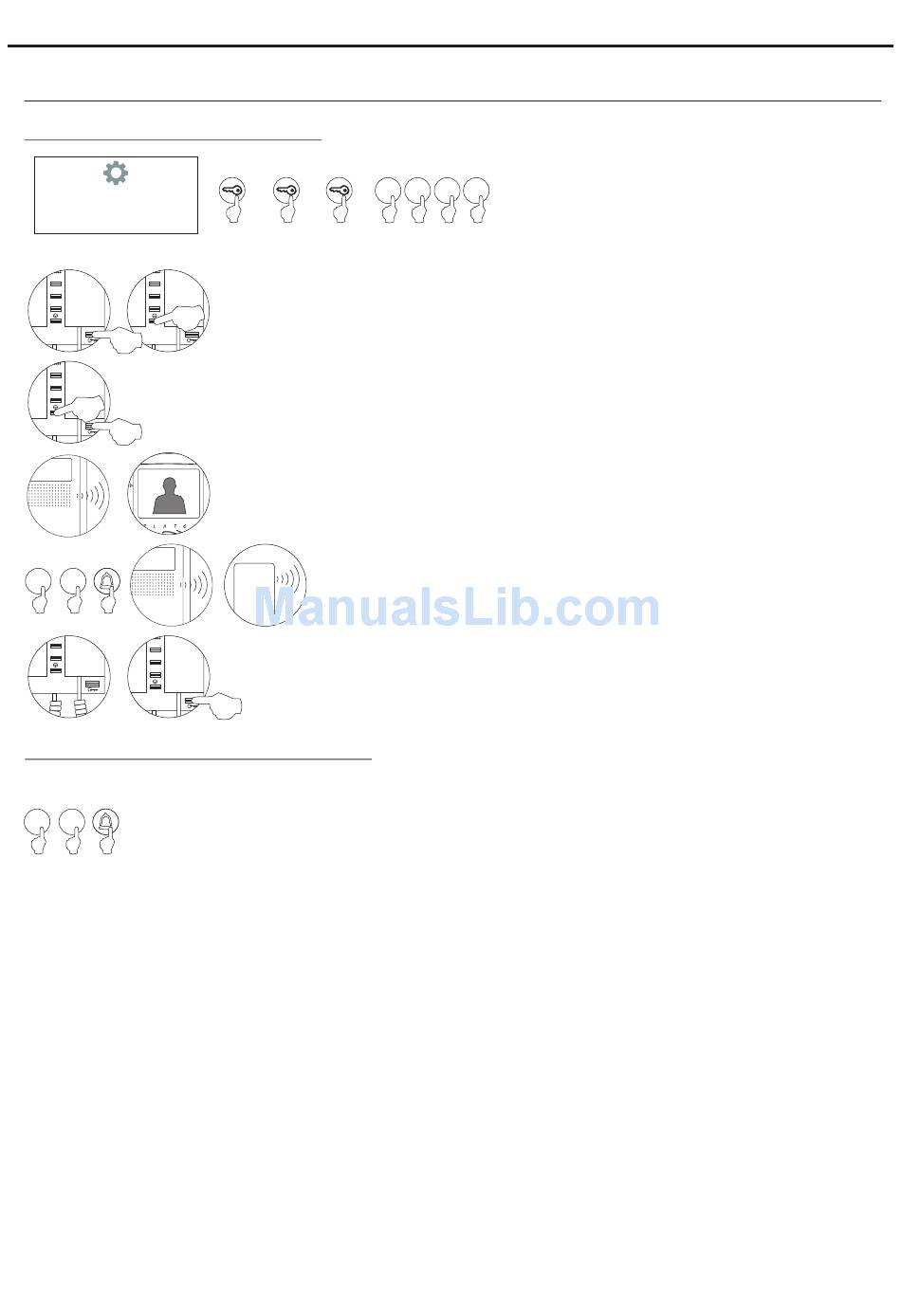

Turn off the monitor to be programmed by holding pressed the door release push button for
one second.
Once off, press the auto switch-on button.
While holding pressed the auto switch-on button, simultaneously press the door release
button.
To show that the system is ready for programming, the door panel will emit a tone and the
image will appear on the monitor. The push buttons can now be released.
Lift the handset off the monitor.
Enter the code to be called by this monitor and press bell.
At this moment both door panel and handset will emit tones.
With the handset lifted:
If programming the monitor as master, replace the handset.
If programming it as slave, press the door release push button, then replace the
handset.
To enter configuration mode, press the key button
three times and then enter the secret
7 1 8
administrator pin (factory code 2718) as
described on p. 129.
