DESCRIPTION OF THE DOOR PANEL

Description of the Nexa modular door panel:

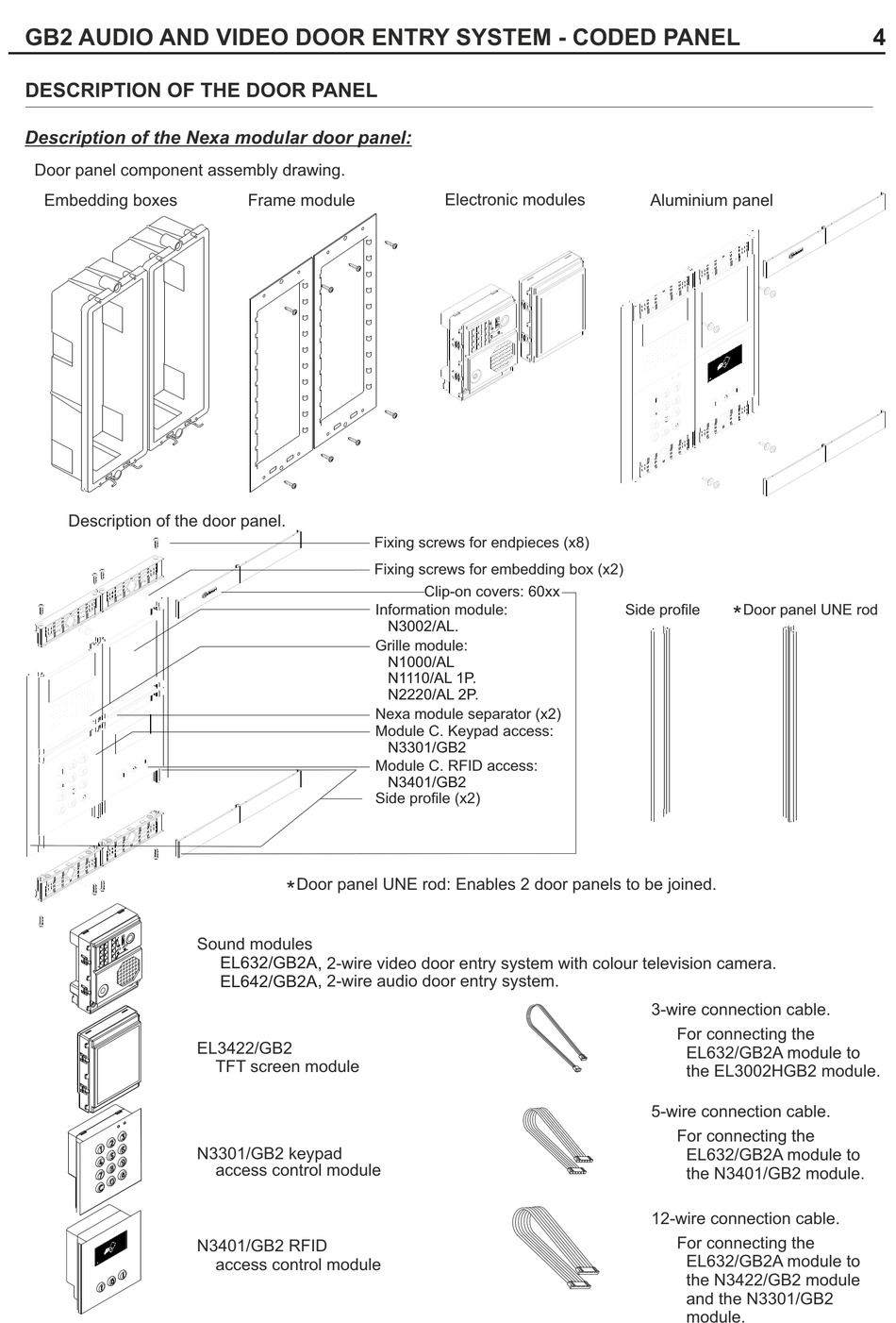

Door panel component assembly drawing.
Embedding boxes
Description of the door panel.
Frame module
Door panel UNE rod: Enables 2 door panels to be joined.
*
Sound modules
EL63 GB2A 2/ , 2-wire video door entry system with colour television camera.
EL642/GB2A , 2-wire audio door entry system.
EL3422/GB2
TFT screen module
N3301/GB2 keypad
access control module
N3401/GB2 RFID
access control module
Electronic modules
Fixing screws for endpieces (x8)
Fixing screws for embedding box (x2)
Clip-on covers: 60xx
Information module:
N3002/AL.
Grille module:
N1000/AL
N1110/AL 1P.
N2220/AL 2P.
Nexa module separator (x2)
Module C. Keypad access:
N3301/GB2
Module C. RFID access:
N3401/GB2
Side profile (x2)
Aluminium panel
Side profile Door panel UNE rod
*
3-wire connection cable.
For connecting the
EL632/GB2A module to
the EL3002HGB2 module.
5-wire connection cable.
For connecting the
EL632/GB2A module to
the N3401/GB2 module.
12-wire connection cable.
For connecting the
EL632/GB2A module to
the N3422/GB2 module
and the N3301/GB2
module.
