golmar NEXA User Manual page 122

AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL WITH DISPLAY

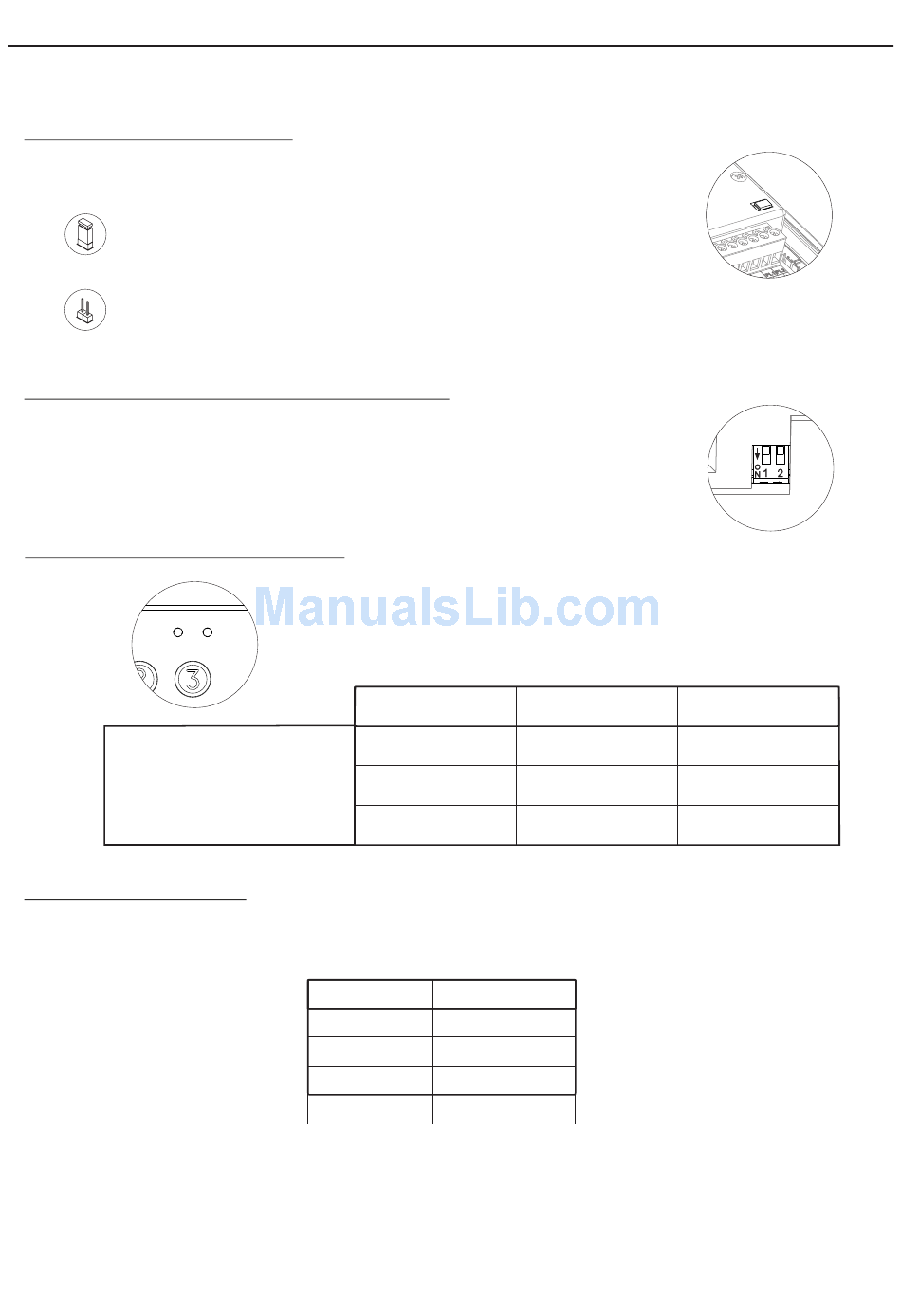

DESCRIPTION OF THE CODED MODULE
Description of the JP1 jumper:
The JP1 jumper, located on the right-hand side of the connection block,
activates the tamper alarm.
Normal operation, alarm not activated
Tamper alarm mode activated. In this mode, the module's keypad operation
and external buttons are disabled. The LEDs and the keypad's backlight are
turned off and a constant audible alarm and the "P" panic output of the open
collector (3 seconds every minute) are activated. Alarm mode ends when
the JP1 jumper is replaced.
Description of the SW1 DIP switch (no function):
The SW1 DIP switch is located on the left-hand side of the module.
In this operating mode, the SW1 DIP switch has no function.
Description of the self-testing LEDs:
Rojo Verde
Description of the beeps:
The access control module features an internal beeper for reproducing operation beeps.
The self-testing LEDs are located on the top right-hand side of the front of
the module.
Standby
Operation
Error
Key press
Alarm activated
Correct code
.
Operation
Normal
Lock Rapid blink
Correct code
Duration
1 long beep (1 sec)
1 rapid beep
1 constant beep
2 rapid beeps
Red LED Green LED
On
On On (1 second)
122
JP1
Off
Off
