2N IP intercom
Version:
2.22
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP intercom and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 2N IP intercom

Summary of Contents for 2N IP intercom

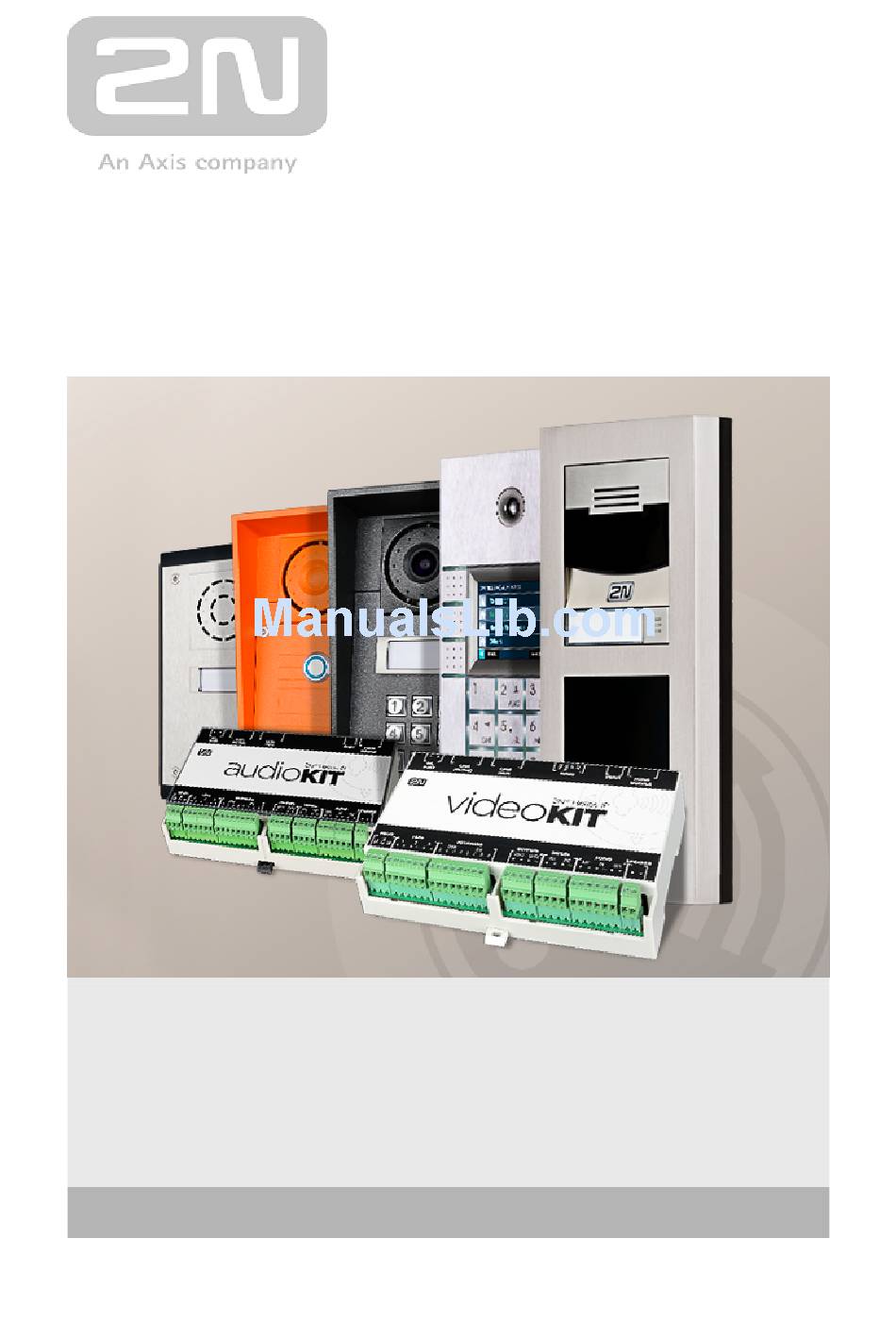

  • Page 1 2N IP intercom Configuration Manual Version: 2.22 www.2n.cz...
  • Page 2 2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www. faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...".
  • Page 3 The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All development, production and distribution processes of the company are managed by this standard and guarantee a high quality, technical level and professional aspect of all our products.
  • Page 4 4. Signalling of Operational Statuses 5. Intercom Configuration 5.1 Status 5.2 Directory 5.3 Hardware 5.4 Services 5.5 System 5.6 Used Ports 6. Supplementary Information 6.1 Troubleshooting 6.2 Directives, Laws and Regulations 6.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 4/198...

  • Page 5: Product Overview

    Some 2N IP intercom models are equipped with a numeric keypad, which can be used as a code lock or a standard push-button phone.
  • Page 6 Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 6/198...
  • Page 7 Now enter the intercom IP address into your favourite browser. We recommend you to use the latest Chrome, Firefox or Internet Explorer 9+ versions as 2N IP intercom not fully compatible with earlier browser versions. Use the name admin and password (i.e.
  • Page 8 (refer to the Installation Manual of your intercom model) and lose all your current configuration changes. FAQ: IP address - How to get IP address of 2N IP intercom 2N TELEKOMUNIKACE a.s., www.2n.cz 8/198...
  • Page 9 Press the Update Firmware button in the System Maintenance menu to upload firmware. The intercom will get restarted upon upload and only then the updating process will be complete. The process takes about 30 seconds. 2N TELEKOMUNIKACE a.s., www.2n.cz 9/198...
  • Page 10 SIP Proxy in your intercom installation, enter the intercom IP address. If you use a SIP server (Proxy, Registrar), set the addresses for the following network elements: Proxy address – set the SIP Proxy IP address or domain name. 2N TELEKOMUNIKACE a.s., www.2n.cz 10/198...
  • Page 11 Proxy and SIP Registrar addresses are usually identical. Registration enabled – enable intercom registration with the set SIP Registrar. If your SIP server requires authentication of terminal equipment, enter the following parameters: Password – enter the password for intercom authentication. 2N TELEKOMUNIKACE a.s., www.2n.cz 11/198...
  • Page 12 Quick Dial Button Settings All the 2N IP intercom models are equipped with quick dial buttons. If you press a quick dial button, a call will be set up to the phone number assigned to the respective Users list position.
  • Page 13 Hardware Switches Switch 1 tab, set the Controlled Output to the intercom output to which the electric door lock is connected. Now set one or more activation codes for the electric door lock switching. 2N TELEKOMUNIKACE a.s., www.2n.cz 13/198...
  • Page 14 3. Model Differences and Function Licensing Here is what you can find in this section: 3.1 Model Differences 3.2 Function Licensing – factory value – licensed function to be purchased additionally – unavailable 2N TELEKOMUNIKACE a.s., www.2n.cz 14/198...
  • Page 15 If a function is not available in all the models, there is a note in the respective subsection and reference to this section. The table below includes an overview of properties and functions of all the 2N IP intercom models.
  • Page 16 Property 2N IP INTERCOMS /Model Display optional optional 2N TELEKOMUNIKACE a.s., www.2n.cz 16/198...
  • Page 17 (L16, G.722) Amplifier power 10 W output Adjustable microphone gain Extended amplifier power output (10 W) Tamper switch optional optional Users position count 1999 User deputy Controlled switch count Switch universal code count User profile count 2N TELEKOMUNIKACE a.s., www.2n.cz 17/198...
  • Page 18 Property/Model 2N IP INTERCOMS JPEG HTTP video ® IP Eye support Telephone mode 2N TELEKOMUNIKACE a.s., www.2n.cz 18/198...
  • Page 19 No licensed features are available for the IP Uni IP Base model. The table below includes the functions that need to be activated by the licence keys corresponding to the above mentioned licences. The licences can be combined arbitrarily. 2N TELEKOMUNIKACE a.s., www.2n.cz 19/198...
  • Page 20 • support   •           • function support Motion   •           • detection support Extended     •         • switch setting options 2N TELEKOMUNIKACE a.s., www.2n.cz 20/198...
  • Page 21     • support SIPS (TLS)       •       • support SRTP       •       • support Silent Alarm       •       • 2N TELEKOMUNIKACE a.s., www.2n.cz 21/198...
  • Page 22 Access Unit , which already comes with preloaded Security and Integration ® licences, so the only upgrade is NFC licence. Other licences are not applicable to 2N ® Access Unit . Please note that the NFC licence has a different ordering number for Access Unit : 916012.
  • Page 23 How do I get the licence? Licences are generated by 2N according to the particular serial number. After you decide which licence you want, you need to get the serial number of your unit and contact your distributor for the licence key.

  • Page 24: Signalling Of Operational Statuses

    Refer to the Users subsection for the deactivation code settings. Profile activated This tone signals profile activation. This function helps enable alerting of a user group in an office, for example. Refer to the Profile subsection for the activation code settings. 2N TELEKOMUNIKACE a.s., www.2n.cz 24/198...
  • Page 25 Disconnection is signalled by this tone combination. Invalid telephone number or invalid switch activation code 2N IP intercom allows the user to dial an extension number directly using the keypad or enter the door unlocking code. An invalid code is signalled by this tone sequence.
  • Page 26 Press a key on your VoIP phone to extend the call time during this timeout. Connected VoIP phone This short tone signals successful connection between a VoIP phone and 2N IP intercom 2N TELEKOMUNIKACE a.s., www.2n.cz 26/198...
  • Page 27 5. Intercom Configuration 2N TELEKOMUNIKACE a.s., www.2n.cz 27/198...
  • Page 28 The start screen is also the first menu level and quick navigation (click on a tile) to selected intercom configuration sections. Some tiles also display the state of selected services. Video Tutorial: New web interface of 2N IP intercoms 2N TELEKOMUNIKACE a.s., www.2n.cz 28/198...
  • Page 29 Configuration Menu 2N IP intercom configuration includes 5 main menus: State Directory Hardware Services System including submenus; see below. Status Device – essentials on the intercom Services – information on active services and their states Licence – current states of licences and available intercom functions Directory Users –...
  • Page 30 Licence – licence settings, trial licence activation Certificates – certificate and private key settings Auto provisioning – automatic firmware and configuration update settings Syslog – syslog message sending settings Maintenance – backup and configuration reset, firmware update 2N TELEKOMUNIKACE a.s., www.2n.cz 30/198...
  • Page 31 Force, Safety and Uni). If a speaker is not integrated in the device, make sure than an external speaker is connected (Audio Kit and Video Kit) to use sound signalling. Device Device tab displays basic information on the intercom model, its features, firmware and bootloader versions and so on. 2N TELEKOMUNIKACE a.s., www.2n.cz 31/198...
  • Page 32 Services Services tab displays the status of the network interface and selected services. 2N TELEKOMUNIKACE a.s., www.2n.cz 32/198...
  • Page 33 Licence Licence tab displays the list of licensed functions of the intercom including their current availability (on the basis of a valid licence key entered in the System | Licence menu). 2N TELEKOMUNIKACE a.s., www.2n.cz 33/198...
  • Page 34 2N TELEKOMUNIKACE a.s., www.2n.cz 34/198...
  • Page 35 500 logged events. Every event contains time and date, event type and description specifying the event. The events can be filtered by type in a dropdown menu, above the event log. 2N TELEKOMUNIKACE a.s., www.2n.cz 35/198...
  • Page 36 0,1,2...,9 and quickdial buttons are %1,%2 ...). KeyReleased Generated whenever a button is released (numeric keypad digits are 0,1,2...,9 and quickdial buttons are %1,%2 ...). InputChanged Indicates a change on the digital input. OutputChanged Indicates a change of the output. 2N TELEKOMUNIKACE a.s., www.2n.cz 36/198...
  • Page 37 TamperSwitchActivated Tamper Switch state indication. UnauthorizedDoorOpen Unauthorised door opening indication, settings in Hardware / Digital Inputs / Door State. DoorOpenTooLong Detection of a too-long opened door, settings in Hardware / Digital Inputs / Door State. 2N TELEKOMUNIKACE a.s., www.2n.cz 37/198...
  • Page 38 Change of Bluetooth pairing states: Inactive, Paired, Waiting for pairing. MobKeyEntered Bluetooth authorisation. FingerEntered Fingerprint authorisation. DoorStateChanged Door open/closed state detection. Settings can be made in Hardware / Digital inputs. UserAuthenticated User authentication. UserRejected User rejection. 2N TELEKOMUNIKACE a.s., www.2n.cz 38/198...
  • Page 39 5.2 Directory Here is what you can find in this subsection: 5.2.1 Users 5.2.2 Time Profiles 5.2.3 Holidays 2N TELEKOMUNIKACE a.s., www.2n.cz 39/198...
  • Page 40 RFID card/code door unlocking, missed call e-mails and so on. The Users list contains up to 1999 users (variable in the 2N IP intercom models) – typically, each user is assigned just one item (position 1 to 1999).
  • Page 41 1 in the user list, button 2 to position 2 in the phone book, etc. You can change the user and button settings as necessary. Most of the 2N IP intercoms are equipped with one or more quick dial buttons. Refer to the Installation Manual of your intercom model for the quick dial button count and extending options.
  • Page 42 – enter the user-defined access cards with/without a time profile. Enable/disable double authentication (valid user card + switch activating code) for each user. ® User mobile key – allows to authenticate users using a mobile app 2N Mobile 2N TELEKOMUNIKACE a.s., www.2n.cz 42/198...
  • Page 43 Refer to the E-Mail subsection for more details. Virtual number – select a number to be used for user calling via a numeric keypad. Enable this function in the Dial by Numeric Keypad in the Hardware / Keypad menu. 2N TELEKOMUNIKACE a.s., www.2n.cz 43/198...
  • Page 44 Time profile – assign a time profile to each phone number to define the number validity. If the profile in inactive, the phone number is not used and the following phone number is dialled if defined. 2N TELEKOMUNIKACE a.s., www.2n.cz 44/198...
  • Page 45 IP Eye address – set the address of the PC to be sent a special UDP message on ® each active user phone number call. With the aid of this message, the 2N IP Eye application displays the camera image screen for those users who are not provided with a display-equipped videophone.
  • Page 46 (time profiles, user deactivation). Note The User Deputy function is available in selected 2N IP intercom models only (refer to the model and licence overview Each user is assigned an access mode for intercom authentication.
  • Page 47 Card ID field. Make sure that a PC driver is installed to make the USB card reader work properly. Refer to www.2n.cz User Fingerprint Setting Instructions Fingerprint reading is possible via an external USB fingerprint reader (Part No.
  • Page 48 2) Click the fingerprint reading button in the user section of the 2N IP intercom interface. 3) Click to select a finger for fingerprint loading. Up to two fingerprints may be saved for each user. 2N TELEKOMUNIKACE a.s., www.2n.cz 48/198...
  • Page 49 4) Click SCAN FINGER to load a fingerprint. 5) Place the selected finger on an external USB reader. This process is repeated three times for greater precision. 2N TELEKOMUNIKACE a.s., www.2n.cz 49/198...
  • Page 50 ) Repeat the process if any inconsistency occurs during fingerprint reading. 7) If fingerprint scanning is successful, click DONE to confirm the settings. 2N TELEKOMUNIKACE a.s., www.2n.cz 50/198...
  • Page 51 – display the date and time of the generated authorisation PIN validity end. Pairing via Bluetooth Module in Intercom To pair a mobile phone with the user: Click at Auth ID to start pairing for the selected user account. 2N TELEKOMUNIKACE a.s., www.2n.cz 51/198...
  • Page 52 It is possible to read the card ID via an RFID card reader. Proceed as follows: ® Go to the USB Driver settings. Set up the COM port for the connected reader. Press the Read button via the 2N IP intercom web interface. 2N TELEKOMUNIKACE a.s., www.2n.cz 52/198...
  • Page 53 Tap the card on the card reader. The card ID is successfully read. Do not forget to save the configuration. 2N TELEKOMUNIKACE a.s., www.2n.cz 53/198...
  • Page 54 Assign a time profile according to a week time sheet to define availability of the selected function. Just set from-to or days in the week on which the function shall be available. 2N IP intercom helps you create up to 20 time profiles (depending on the IP intercom model) that can be assigned to the function;...
  • Page 55 This parameter helps you set time profiles within a week period. A profile is active when it matches the set intervals. 2N TELEKOMUNIKACE a.s., www.2n.cz 55/198...
  • Page 56 Note You can set any number of intervals within a day: 8:00–12:00, 13:00–17: 00, 18:00–20:00, e.g. To make a profile active for the whole day, enter one day-covering interval: 00:00–24:00. 2N TELEKOMUNIKACE a.s., www.2n.cz 56/198...
  • Page 57 Click a date once to select a fixed holiday, click twice to select a variable holiday and click for the third time to remove the holiday from the holiday list. 2N TELEKOMUNIKACE a.s., www.2n.cz 57/198...
  • Page 58 5.3 Hardware Here is what you can find in this section: 5.3.1 Door 5.3.2 Switches 5.3.3 Audio 5.3.4 Camera 5.3.5 Keypad 5.3.6 Buttons 5.3.7 Backlight 5.3.8 Display 5.3.9 Card Reader 5.3.10 Digital Inputs 5.3.11 Extenders 2N TELEKOMUNIKACE a.s., www.2n.cz 58/198...
  • Page 59 Unauthorised door open detection – detect if the door is open when switch has been locked. Door open too long detection – door open too long detection. Maximum door open time – maximum permitted door open duration in seconds. 2N TELEKOMUNIKACE a.s., www.2n.cz 59/198...
  • Page 60 Failure reason – display the failure reason of the last Synergis server connection attempt – last error response, Found, example. Entry Rules Access enabled – enable access in a direction (entry, exit). If access is disabled, the door cannot be opened from the selected side. 2N TELEKOMUNIKACE a.s., www.2n.cz 60/198...
  • Page 61 Authentication signalling – select how to signal that a card or another identifier has been read. The available modes are None (no signalling at all), Single Beep (single beep regardless of whether the identifier was valid or not) and Full (sound indicating the validity). 2N TELEKOMUNIKACE a.s., www.2n.cz 61/198...
  • Page 62 Exit Rules Access enabled – enable access in a direction (entry, exit). If access is disabled, the door cannot be opened from the selected side. Door locking – display the active door lock setting: Unlocked/Locked. 2N TELEKOMUNIKACE a.s., www.2n.cz 62/198...
  • Page 63 0000, then the silent alarm activation code is 0001. It means, for instance, that silent alarm is 0000 for access code 9999 and so on. Set the silent alarm action in the Automation section. 2N TELEKOMUNIKACE a.s., www.2n.cz 63/198...
  • Page 64 6 to 32 characters including 0–9, A–F. Minus card ID – enter the service card ID for removing cards from the Installed cards: a sequence of 6 to 32 characters including 0–9, A–F. 2N TELEKOMUNIKACE a.s., www.2n.cz 64/198...
  • Page 65 5.3.2 Switches Switches provide a very flexible and efficient control of such intercom peripherals as electric door locks, lighting, additional ringing signalling, and so on. 2N IP intercoms allows you to configure up to 4 (depending on model types) independent all-purpose switches.
  • Page 66 This mode can only be used if the switch is set to the bistable mode. "Test the switch" button – activate the switch manually to test its function, e.g. an electric lock or another device connected. 2N TELEKOMUNIKACE a.s., www.2n.cz 66/198...
  • Page 67 Security mode, the output works in the inverse ® mode, i.e. remains closed and controls the 2N IP Intercom - Security Relay module using a specific pulse sequence. If you use the inverse mode (i.e. the door is locked when voltage is applied), set the inverse output type.
  • Page 68 Confirm the code with *. The code length is up to 16 characters. Time profiles – assign a time profile to the switch code for validity control. The switch can be activated only if one of its time profiles is valid at least. 2N TELEKOMUNIKACE a.s., www.2n.cz 68/198...
  • Page 69 Sound signalling – set the sound signalling type for switch activation. Choose the Short beep, Long beep (during the whole activation) or a User sound (refer to the User Sounds subsection). Display info – enable/disable signalling of an activated switch on the display. 2N TELEKOMUNIKACE a.s., www.2n.cz 69/198...
  • Page 70 Command sent upon deactivation – set the command to be sent to the external device (WEB relay, e.g.) upon switch deactivation. The command is sent via the HTTP (GET request) and must be as follows: http://ip_address/path . E.g.: http://192.168.1.50/relay1=off 2N TELEKOMUNIKACE a.s., www.2n.cz 70/198...
  • Page 71 *. The Legacy switch code helps you keep back compatibility with earlier 2N intercom models. Note The switch time profiles are available with the Gold or Enhanced Integration licence only.
  • Page 72 5.3.3 Audio All the 2N IP intercom models are equipped with a speaker or power amplifier output to which an external loudspeaker can be connected. Set the phone call and state signalling volume control in this configurat ion section. Set the...
  • Page 73 Current adaptive gain – display the current adaptive gain of the master volume. The value is determined by the difference of the Current noise level and Sensitivity threshold and never exceeds the Maximum gain value. 2N TELEKOMUNIKACE a.s., www.2n.cz 73/198...
  • Page 74 Default audio input – set the default audio input (microphone, line input or audio module input) to be used for phone calls and audio streaming. Microphone input gain – set the microphone input gain. 2N TELEKOMUNIKACE a.s., www.2n.cz 74/198...
  • Page 75 This mode is disabled by default. Switch on automatic detection of noise or microphone noise level threshold exceeding. Process the threshold exceeding alarm using Event.NoiseDetected and assign it to other user actions. 2N TELEKOMUNIKACE a.s., www.2n.cz 75/198...
  • Page 76 Alarm end delay – set the time interval during which the signal must be below the threshold to stop alarm. Noise level graph – display the signal level history. Red designates alarm activation. 2N TELEKOMUNIKACE a.s., www.2n.cz 76/198...
  • Page 77 JPEG format. The following video signal sources can be used: ® an internal integrated camera or external analogue camera (2N IP Video Kit only) a standard external IP camera supporting RTSP stream with codecs MJPEG (640 x 480 max resolution) or H.264 (640 x 480 Base Line Profile max resolution).
  • Page 78 IP phone key PTZ mode function Enable/disable PTZ Zoom in Zoom out Move zoom region up Move zoom region to the left Move zoom region to the right Move zoom region down Return to initial state 2N TELEKOMUNIKACE a.s., www.2n.cz 78/198...
  • Page 79 IR LED brightness level – set the infrared LED brightness level in the range of 0- 100% in several steps. Infrared illumination is automatically activated in night ® mode. The IR LED brightness level settings are only available in the 2N IP Verso ®...
  • Page 80 Select the sensitivity thresholds and detection area according to the requirements and installation site conditions. 2N TELEKOMUNIKACE a.s., www.2n.cz 80/198...
  • Page 81 Sensitivity threshold– set the lower and upper sensitivity and hysteresis limits for the motion detecting algorithm. Detection area – set the rectangular detection area in the image. Activity graph – display the activity history (image brightness changes) including the upper/lower sensitivity thresholds. 2N TELEKOMUNIKACE a.s., www.2n.cz 81/198...
  • Page 82 IP camera requires authentication. Local RTP port – set the local UTP port for RTP stream receiving. FAQ: External camera - How to set it in 2N IP intercom 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 83 If the external camera is disconnected or configured incorrectly, the N/A characters are displayed on a blue background. The External IP Camera Log displays the RTSP communication with the selected external IP camera including failures and error states if any. 2N TELEKOMUNIKACE a.s., www.2n.cz 83/198...
  • Page 84 # function set the timeout for entering codes and phone numbers ® set the function of the buttons and keys of the connected 2N IP Audio/Video units 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 85 Enter a two-digit floor number via the numeric keypad and press one of the A - F buttons on the display sides to make the intercom dial the phonebook position defined by the 2N TELEKOMUNIKACE a.s., www.2n.cz 85/198...
  • Page 86 16 external buttons or a keypad. The functions can be set for each button separately. The buttons and their settings are arranged in a matrix of 4 columns x 4 rows; see the figure below. The figure below shows the default button settings. 2N TELEKOMUNIKACE a.s., www.2n.cz 86/198...
  • Page 87 You can assign one function to each matrix position: numeric keypad keys 0 through 9, *, # or one of the quick dial buttons 1–16. 2N TELEKOMUNIKACE a.s., www.2n.cz 87/198...
  • Page 88 Restore network settings by buttons – enable restoration of the default network settings by pressing a sequence of the quick dial buttons after the intercom restart as described in the Device Configuration subsection in the Installation Manual of the respective model. 2N TELEKOMUNIKACE a.s., www.2n.cz 88/198...
  • Page 89 Clear – remove all button assignments. Display the list of all potentially available intercom buttons including those that are ® ® physically absent. In some intercom models ( 2N IP Vario , 2N IP Verso ), the button list is divided into 8/5-item groups corresponding to the button extending modules.
  • Page 90 (buttons) and signalling LEDs (illuminated pictograms). Refer to the table below: Property/Model Verso Base Vario Force Safety Audio Video Backlight level control Ambient light level sensor Independent name tag and LED backlight level control 2N TELEKOMUNIKACE a.s., www.2n.cz 90/198...
  • Page 91 A low LED intensity value, on the other hand, may, if the intercom is placed in direct sun, result in a lower LED on/off contrast and potential LED state identification problems. 2N TELEKOMUNIKACE a.s., www.2n.cz 91/198...
  • Page 92 IP Vario and basic and ® language settings for 2N IP Verso. Phonebook – display a configurable list of users. Use the numeric keypad buttons (arrows) to go through the user list. You can create practically any count of nested groups within the user list and add any count of users to each group.
  • Page 93 List of Parameters Display (for 2N ® IP Vario only) Display enabled – enable this parameter to automatically display the name tags, phonebook and slideshow if necessary. When this parameter is disabled, the images recorded via HTTP API are displayed only (refer to the HTTP API documentation).
  • Page 94 Phonebook mode will be switched to the Name Tags mode. You can also press the Back button to the left to return to the Name Tags mode. 2N TELEKOMUNIKACE a.s., www.2n.cz 94/198...
  • Page 95 Display (for 2N ® IP Verso only) Basic Settings Phone book displayed – enable/disable display of the phone book function. Entry Keypad – enable the keypad/keypad type. Disabled – disable the keypad. Regular keypad – set the regular keypad type.
  • Page 96 By switching to the automatic display mode you delete all the display directory items. The display directory includes all the users that are allowed to be displayed. Switch to automatic mode – switch the display directory to the automatic mode. 2N TELEKOMUNIKACE a.s., www.2n.cz 96/198...
  • Page 97 Name Tags mode will be inactive. In the Name Tags mode, the user names are displayed with guidelines and arrows pointing to the right button on the display sides. 2N TELEKOMUNIKACE a.s., www.2n.cz 97/198...
  • Page 98 Name Tags (for 2N ® IP Vario only) If you do not like the default graphic appearance of the name tags, upload a background of your own to the intercom. Make sure that the image resolution is 320 x 208 pixels. Upload your name tags to the intercom to replace the original name tags.
  • Page 99 Images and Video Make sure that the image resolution is 320 x 240 pixels. Other sizes will be adjusted to the display resolution automatically. If no image is loaded, the Slideshow mode will never be activated. 2N TELEKOMUNIKACE a.s., www.2n.cz 99/198...
  • Page 100 In the output mode, the interface helps connect the intercom to the security exchange, e.g. and send IDs of the cards tapped on the internal reader to this exchange. Basic Settings 2N TELEKOMUNIKACE a.s., www.2n.cz 100/198...
  • Page 101 Interface mode – enable the Wiegand function and set Wiegand IN/OUT. The IDs of the cards tapped on the internal card reader are always resent to Wiegand OUT. Received code format – set the format for the codes to be received (Wiegand 26, 32, 37 and RAW). 2N TELEKOMUNIKACE a.s., www.2n.cz 101/198...
  • Page 102 Plus card ID – enter the service card ID for adding cards to Installed cards: a sequence of 6 to 32 characters including 0–9, A–F. Minus card ID – enter the service card ID for removing cards from Installed cards: a sequence of 6 to 32 characters including 0–9, A–F. 2N TELEKOMUNIKACE a.s., www.2n.cz 102/198...
  • Page 103 By adding an access card, the new user is saved into the card list in the Directory / Users menu. Each user is automatically named as !Visitor #n, where n gives the user number in the list. 2N TELEKOMUNIKACE a.s., www.2n.cz 103/198...
  • Page 104 – define one (or none) of the logical inputs for secured state detection. The secured state is then signalled by a LED on the intercom, whose location may vary in different intercom types. Input mode – set the active input mode (polarity). 2N TELEKOMUNIKACE a.s., www.2n.cz 104/198...
  • Page 105 Assigned input – select the logical input to which the tamper switch is to be connected. TamperSwitchActivated signals the tamper switch activation. Enable automatic switch blocking – block the switches by tamper activation for 30 minutes. Switch blocking state – display and make switch blocking settings. 2N TELEKOMUNIKACE a.s., www.2n.cz 105/198...
  • Page 106 (the first module has number 1). The basic unit is a special type of module and has number 0. You can configure each module separately. The parameters are specific for the given module type . 2N TELEKOMUNIKACE a.s., www.2n.cz 106/198...
  • Page 107 In this case, identify the modules connected using the Locate Module button. The module will flash shortly several times when you press the button. Caution Module Name has to be unique. Main Unit Module Configuration 2N TELEKOMUNIKACE a.s., www.2n.cz 107/198...
  • Page 108 (Audio Kit and Video Kit) to use sound signalling. Button Module Configuration Button function – assign user positions to the buttons. Keypad Module Configuration No parameters are available to the public at present. 2N TELEKOMUNIKACE a.s., www.2n.cz 108/198...
  • Page 109 – set the module name for card reader logging purposes. Direction – set the passage direction for the card reader (Not Specified, In, Out) for the attendance system purposes. Multiple authentication – enable multiple user authentication via the card reader 2N TELEKOMUNIKACE a.s., www.2n.cz 109/198...
  • Page 110 RFID card IDs will be resent. Bluetooth Module Module name – set the module name for logging events from the Bluetooth module. Direction – set the reader direction (Not specified, Arrival, Departure) for the Attendance system purposes. 2N TELEKOMUNIKACE a.s., www.2n.cz 110/198...
  • Page 111 Proximity mode – authentication is executed automatically when the mobile phone is within the Bluetooth module signal reach I/O Module Configuration Module name – set the module name for input/output specification in the SetOutput, GetInput and InputChanged objects in Automation Wiegand Module Configuration 2N TELEKOMUNIKACE a.s., www.2n.cz 111/198...
  • Page 112 RFID cards tapped on the RFID reader or codes received on any Wiegand ® input). The Wiegand Isolator is also equipped with one logical input and one logical output, which can be controlled via Automation 2N TELEKOMUNIKACE a.s., www.2n.cz 112/198...
  • Page 113 Maximum power – set the maximum transmission power for the induction loop antenna. A higher transmission power means a wider range, but less power for other intercom functions. The convenient default value is 0.25 W under normal circumstances. 2N TELEKOMUNIKACE a.s., www.2n.cz 113/198...
  • Page 114 Read Signalling – set one of the card reading signalling modes Full – acoustic signals distinguish valid/invalid cards Single Beep – one beep signals both valid and invalid cards None – acoustic signalling is disabled. 2N TELEKOMUNIKACE a.s., www.2n.cz 114/198...
  • Page 115 Here is what you can find in this section: 5.4.1 Phone 5.4.2 Streaming 5.4.3 ONVIF 5.4.4 E-Mail 5.4.5 Mobile Key 5.4.6 Automation 5.4.7 HTTP API 5.4.8 User Sounds 5.4.9 Web Server 5.4.10 Audio Test 5.4.11 SNMP 2N TELEKOMUNIKACE a.s., www.2n.cz 115/198...
  • Page 116 H.263 H.264 codecs to compress video streams. Broadband codecs L16 and G.722 are available in selected 2N IP intercom models only. Choose your preferential codecs in the Audio or Video tab. Explanation of IP Telephony Terms (Session Initiation Protocol) –...
  • Page 117 (example: 2568/1 - calls to number 2568 go via account 1, sip: 1234@192.168.1.1 calls to sip uri via account 2). 2N TELEKOMUNIKACE a.s., www.2n.cz 117/198...
  • Page 118 Domain – set the domain name of the service with which the intercom is registered. Typically, it is identical with the SIP Proxy or Registrar address. Test call – display a dialogue window enabling you to make a test call to a selected phone number, see below. 2N TELEKOMUNIKACE a.s., www.2n.cz 118/198...
  • Page 119 – set the SIP Proxy IP address or domain name to be used where the main proxy fails to respond to requests. Backup proxy port – set the backup SIP Proxy port (typically 5060). Registration enabled – enable intercom registration with the set SIP Registrar. 2N TELEKOMUNIKACE a.s., www.2n.cz 119/198...
  • Page 120 SIP server public certificate validity, refer to the Certificates subsection. If none is included, the SIP server public certificate is not verified. User certificate – specify the user certificate and private key to verify the 2N TELEKOMUNIKACE a.s., www.2n.cz 120/198...
  • Page 121 (RTP packets are not delivered), the call is terminated by the intercom. Set the parameter to 0 to disable this function. The parameter is only set for account 1 but applies to both the SIP accounts. Calls 2N TELEKOMUNIKACE a.s., www.2n.cz 121/198...
  • Page 122 Codec G.729 is available in selected intercoms only with a valid licence G.729. The tab below helps you define how DTMF characters shall be sent from the intercom. Check the DTMF receiving options and settings of the opponent to make the function work properly. 2N TELEKOMUNIKACE a.s., www.2n.cz 122/198...
  • Page 123 In-Band (Audio) – enable classic DTMF dual tone receiving in the audio band. RTP (RFC-2833) – enable DTMF receiving via the RTP according to RFC-2833. SIP INFO (RFC-2976) – enable DTMF receiving via SIP INFO messages according to RFC-2976. 2N TELEKOMUNIKACE a.s., www.2n.cz 123/198...
  • Page 124 Enable/disable the use of video codecs for call setups and set their priorities. Video resolution – set the video resolution for phone calls. Video framerate – set the video frame rate for phone calls. Video bitrate – set the video stream bit rate for phone calls. 2N TELEKOMUNIKACE a.s., www.2n.cz 124/198...
  • Page 125 For the Video Preview feature at the Gigaset Maxwell 10 phone (video transferred via jpg images) it is necessary to set Connection Type Unsecure Authentication None at the Camera API HTTP API. 2N ® Indoor Touch Tab 2N TELEKOMUNIKACE a.s., www.2n.cz 125/198...
  • Page 126 It also contains the video transmission settings. ® Access key – set the access key to be shared by the intercom and 2N Indoor Touch . If the access keys do not match in the intercom and 2N® Indoor Touch, ®...
  • Page 127 Number of watching devices – display the current count of 2N Indoor Touch devices watching video streams from the intercom. ® Show list of registered devices – display the list of registered 2N Indoor Touch devices. 2N TELEKOMUNIKACE a.s., www.2n.cz 127/198...
  • Page 128 RTSP tunnelling via HTTP. Supported both for audio (G.711) and video (H.264, H. /HTTP 263, MPEG-2 and MJPEG). Refer to the RTSP tab below. RTP/UDP- Uncontrolled RTP packet multicast. Supported for audio (G.711) only. Refer to the Multicast Multicast tab below. 2N TELEKOMUNIKACE a.s., www.2n.cz 128/198...
  • Page 129 HTTP (Hypertext Transfer Protocol) – helps transmit practically any contents and is used primarily by internet browsers for web server communication. 2N IP intercom uses the HTTP to transmit static JPEG images or MJPEG streams via the HTTP Server Push.
  • Page 130 RTSP server enabled – enable the RTSP server function in the intercom. Audio stream enabled – enable offering of audio stream while establishing connection with the RTSP server. Video stream enabled – enable offering of video stream while establishing 2N TELEKOMUNIKACE a.s., www.2n.cz 130/198...
  • Page 131 Video bitrate – set the default video bit rate for RTSP streaming. Video quality– set the video compression level (for MJPEG only) ranging between 10 (low quality, lowest bitrate) and 99 (top quality, highest bitrate). 2N TELEKOMUNIKACE a.s., www.2n.cz 131/198...
  • Page 132 60 ports to be used for audio and video transmissions. The default value is 4800 (i.e. the used range is 4800–4859). FAQ: VLC Player - How to watch a video from 2N IP intercom RTSP server FAQ: VLC Player - How to record video from 2N IP intercom 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 133 1280 x 960 Verso 640 x 480 Verso 1280 x 960 Note The HTTP Server Push method with the multipart/x-mixed-replace contents is not supported by all internet browsers. Test the function in the Firefox browser, for example. 2N TELEKOMUNIKACE a.s., www.2n.cz 133/198...
  • Page 134 Receive address – set the multicast IP address to receive multicast RTP packets. Receive port – set the local port to receive multicast RTP packets. Volume – set the received audio stream playing volume. 2N TELEKOMUNIKACE a.s., www.2n.cz 134/198...
  • Page 135 The intercom supports registration with up to 4 Informacast servers at the same time and setup of up to 6 parallel audio streams. InformaCast service enabled - enable the Informacast service on your intercom side. 2N TELEKOMUNIKACE a.s., www.2n.cz 135/198...
  • Page 136 FTP client enabled - enable camera image saving to the FTP server. Remote FTP server addre ss – set the FTP server address in the ftp://ip_address or ftps://ip_address format Username – set the FTP server username. The parameter is mandatory if the FTP 2N TELEKOMUNIKACE a.s., www.2n.cz 136/198...
  • Page 137 You can disable automatic sending (Automation) and send pictures via Action.UploadSnapshotToFtp Upload period – set the picture sending period in steps (10 seconds to 30 minutes) when Upload pictures is set to Periodic 2N TELEKOMUNIKACE a.s., www.2n.cz 137/198...
  • Page 138 Click Apply & Test to save the current FTP server configuration, load the camera image and save the image to the FTP server. The window above displays the FTP server communication details during saving. 2N TELEKOMUNIKACE a.s., www.2n.cz 138/198...
  • Page 139 ONVIF compatible and fully implement the ONVIF Profile S. Enable WS Discovery – enable the WS-Discovery function, which allows other devices (ONVIF clients) to discover compatible LAN devices. Enable this function to use a device as an ONVIF compatible one. 2N TELEKOMUNIKACE a.s., www.2n.cz 139/198...
  • Page 140 RTSP Server enabled on the RTSP tab Video stream enabled on the RTSP tab UDP unicast enabled n the RTSP tab Snapshot download enabled n the JPEG tab Note Preset authorisation for ONVIF Username: admin Password: 2n 2N TELEKOMUNIKACE a.s., www.2n.cz 140/198...
  • Page 141 To inform the intercom users on all missed and/or successfully completed calls, configure 2N IP intercom to send an e-mail after every call to the called user. You can compile the e-mail subject and message text of your own. If your intercom is equipped with a camera, you can automatically attach one or more snapshots taken during the call or ringing.
  • Page 142 From address – set the sender address for all outgoing e-mails from the device. Deliver in – set the time limit for delivering an e-mail to an inaccessible SMTP 2N TELEKOMUNIKACE a.s., www.2n.cz 142/198...
  • Page 143 One camera shot is always attached to the e-mail even in cameraless models where the image is sent with N/A. 2N TELEKOMUNIKACE a.s., www.2n.cz 143/198...
  • Page 144 If a recipient is not included in the users list or this field, no e-mail is sent. You can set more e-mail addresses separated with a comma if necessary. Subject – set the e-mail subject to be sent. 2N TELEKOMUNIKACE a.s., www.2n.cz 144/198...
  • Page 145 Denied accesses – e-mail shall be sent whenever an invalid RFID card is tapped on the card reader and/or invalid Bluetooth/fingerprint reader identification is made. All accesses – e-mail shall be sent whenever any RFID card is tapped on 2N TELEKOMUNIKACE a.s., www.2n.cz 145/198...
  • Page 146 An extended syntax can be used for the $AuthIdType$ and $AuthIdValid$ placeholders to replace the values in different languages. If the placeholder value is not found in the string, the value is used directly. 2N TELEKOMUNIKACE a.s., www.2n.cz 146/198...
  • Page 147 Attach snapshot – enable sending of an attachment including one camera snapshot taken during ringing or calling. Snapshot resolution – set the snapshot resolution for the image to be sent. 2N TELEKOMUNIKACE a.s., www.2n.cz 147/198...
  • Page 148 You can set and edit the Auth ID value for each user in the Mobile Key section of the intercom phone book. You can move Auth ID to another user or copy it to another intercom. By deleting the Auth ID value you can block the user's access. 2N TELEKOMUNIKACE a.s., www.2n.cz 148/198...
  • Page 149 An encryption key other than that used for communication after pairing is used in the pairing mode for security reasons. This key is generated automatically upon the intercom first launch and can be re-generated any time later. 2N TELEKOMUNIKACE a.s., www.2n.cz 149/198...
  • Page 150 Devices with identical location IDs and encryption keys form a so-called location. Import – push the button to import the location ID and current encryption keys from a file exported from another intercom. Devices with identical location IDs and encryption keys form a so-called location. 2N TELEKOMUNIKACE a.s., www.2n.cz 150/198...
  • Page 151 The mobile device keys are updated ® at every use of the Mobile Key application. Pairing PIN validity – set the authorisation PIN validity for user mobile device pairing with the intercom. 2N TELEKOMUNIKACE a.s., www.2n.cz 151/198...
  • Page 152 Delete the Mobile Key Auth ID value for the user to block the lost phone and avoid misuse. Re-generate the primary encryption key (optionally) to avoid misuse of the encryption key stored in the mobile device. 2N TELEKOMUNIKACE a.s., www.2n.cz 152/198...
  • Page 153 2N IP provides highly flexible setting options to satisfy variable user needs. There are situations in which the standard configuration settings (switch or call modes, e.g.) are insufficient and so 2N IP intercom offers Automation , a special programmable interface for applications that require complex interconnections with third party systems.
  • Page 154 5.4.7 HTTP API HTTP API is an application interface designed for control of selected 2N IP intercom functions via the HTTP . It enables 2N IP intercoms to be integrated easily with third party products, such as home automation, security and monitoring systems, etc.
  • Page 155 Integration licence only. Only Camera API is available without this licence. For the Video Preview feature at Gigaset Maxwell 10 phone it's needed to set in HTTP API at the Camera API item Connection Type = Unsecure and Authetntication = None. 2N TELEKOMUNIKACE a.s., www.2n.cz 155/198...

  • Page 156: User Sounds

    Bits for sample Sound length Quality 16 kHz 16 bit up to 8 s 1 best 16 kHz 8 bit up to 16 s 8 kHz 16 bit up to 16 s 3 (not recommended combination) 2N TELEKOMUNIKACE a.s., www.2n.cz 156/198...
  • Page 157 Switch activation signalling – set the sound to be generated when a switch is activated. Specify signalling details for each switch; refer to the Switches subsection. You can record up to 10 user sound files into the intercom and assign names to them for convenience. 2N TELEKOMUNIKACE a.s., www.2n.cz 157/198...
  • Page 158 You can record a sound file using your PC microphone. Press to start the record and press to stop the record. Press to play the sound record. Click Upload save the sound into the intercom. 2N TELEKOMUNIKACE a.s., www.2n.cz 158/198...
  • Page 159 While adding, set the exact time, select the user sound and adjust the sound volume. The Announcement Scheduler is only available to the 2N SIP Audio products. Scheduler enabled – activate playing of preset user sounds as scheduled. 2N TELEKOMUNIKACE a.s., www.2n.cz 159/198...
  • Page 160 Refer https://wiki.2n.cz/hip/inte/latest/en/10-media-applications /audacity for user sound creating details. Note The sound recording function is unavailable in the browsers that do not support the WebRTC standard (Internet Explorer, e.g.). 2N TELEKOMUNIKACE a.s., www.2n.cz 160/198...
  • Page 161 5.4.9 Web Server You can configure your 2N IP intercom using a standard browser which accesses the integrated web server. Use the secured HTTPS protocol for communication between the browser and intercom. Having accessed the intercom, enter the login name and password.
  • Page 162 Device name – set the device name to be displayed in the right upper corner of ® the web interface, login window and other applications if available (2N Network Scanner, etc). Web interface language – set the default language for administration web server login.
  • Page 163 <strings> element will be included in the language list in the right-hand upper corner of the window and will be used for a quick language switching. 2N TELEKOMUNIKACE a.s., www.2n.cz 163/198...
  • Page 164 The audio test is available with the Gold or Enhanced Audio licence only. If a call is active when the audio test starts, the audio test will be put off until the call is terminated. The audio test will be performed the moment the call is terminated. 2N TELEKOMUNIKACE a.s., www.2n.cz 164/198...
  • Page 165 Test status – this parameter displays the current test status. Last test time – this parameter displays the time of the last-performed test. Last test result – this parameter displays the result of the last-performed test. 2N TELEKOMUNIKACE a.s., www.2n.cz 165/198...
  • Page 166 Trap IP address – IP address to which the SNMP traps are to be sent. Note Traps are not supported at the present version. 2N IP intercom operates with request - response messages. Download MIB file – download the current MIB definition from a device.
  • Page 167 – enter the device location (1st floor, e.g.). IP address– enter up to 4 valid IP addresses for SNMP agent access to block access from other addresses. If the field is empty, the device may be accessed from any IP address. 2N TELEKOMUNIKACE a.s., www.2n.cz 167/198...
  • Page 168 5.5 System Here is what you can find in this section: 5.5.1 Network 5.5.2 Date and Time 5.5.3 Licence 5.5.4 Certificates 5.5.5 Auto Provisioning 5.5.6 Syslog 5.5.7 Maintenance 2N TELEKOMUNIKACE a.s., www.2n.cz 168/198...
  • Page 169 LAN DHCP server. Configure the IP address and DHCP in the Network subsection. ® To know the current IP address of your intercom, use the 2N Network Scanner , which can be freely downloaded from www.2n.cz...
  • Page 170 Primary DNS – primary DNS server address for translation of domain names to IP addresses. Secondary DNS – secondary DNS server address, which is used in case the primary DNS is inaccessible. Hostname – set the 2N IP intercom network identification. 2N TELEKOMUNIKACE a.s., www.2n.cz 170/198...
  • Page 171 . Repress Ping to send another query to the same address. 802.1x 2N TELEKOMUNIKACE a.s., www.2n.cz 171/198...
  • Page 172 User certificate – specify the user certificate and private key for verification of the intercom authorisation to communicate via the 802.1x-secured network element port in the LAN. Choose one of three sets of user certificates and private keys; refer to the Certificates subsection. 2N TELEKOMUNIKACE a.s., www.2n.cz 172/198...
  • Page 173 We recommend you to lower the video stream transmission rate below 512 kbps while capturing. Press to start, to stop and to download the packet capture file. 2N TELEKOMUNIKACE a.s., www.2n.cz 173/198...

  • Page 174: Date And Time

    Most 2N IP intercom models are equipped with a back-up real-time clock to withstand up to several days' long power outages. If not equipped with this function, the intercom loses the real time data upon power outage (or restart).
  • Page 175 NTP server address – set the IP address/domain name of the NTP server used for your intercom time synchronisation. NTP time status – display the state of the last local time synchronisation attempt via the NTP server (Not Synchronised, Synchronised, Error). 2N TELEKOMUNIKACE a.s., www.2n.cz 175/198...
  • Page 176 5.5.3 Licence Some 2N IP intercom functions are available with a valid licence key only. Refer to the Model Differences and Function Licensing subsection for the list of intercom licensing options. List of Parameters Licence key – enter the valid licence key.
  • Page 177 – check whether the G.729 audio codec is available. InformaCast support – check whether the InformaCast support is available. Automatic update – enable automatic licence key update from the 2N Licence server. Manual update – manual licence availability check request.
  • Page 178 5.5.4 Certificates Some 2N IP intercom network services use the Transaction Layer Security (TLS) protocol for communication with other LAN devices to prevent third parties from monitoring and/or modifying the communication contents. Unilateral or bilateral authentication based on certificates and private keys is needed for establishing connections via TLS.
  • Page 179 Refer to the tables below for the current list of trusted and user certificates: Press to load a certificate saved on your PC. Select the certificate (or private key) file in the dialogue window and push Load . Press to remove a certificate from the intercom. 2N TELEKOMUNIKACE a.s., www.2n.cz 179/198...
  • Page 180 Note It is possible that certificate with private RSA key longer than 2048 bits will be rejected following message will displayed: Private key file or private key password was not accepted by device ! 2N TELEKOMUNIKACE a.s., www.2n.cz 180/198...
  • Page 181 TFTP/HTTP server selected by you according to predefined rules. You can configure the TFTP and HTTP server address manually. The 2N IP intercoms support automatic identification of the local DHCP server address (Option 66).
  • Page 182 IP Vario models during reconfiguration. Therefore, we recommend you to update when the intercom traffic is very low (at night, e.g.). List of Parameters Firmware update enabled – enable automatic firmware/configuration updating from the TFTP/HTTP server. 2N TELEKOMUNIKACE a.s., www.2n.cz 182/198...
  • Page 183 Password – enter the password for server authentication. At boot time – enable check and, if possible, update execution upon every intercom start. Update period – set the update period: hourly, daily, weekly and monthly. 2N TELEKOMUNIKACE a.s., www.2n.cz 183/198...
  • Page 184 The requested HTTP/TFTP server fails to reply. Authentication The HTTP credentials are invalid. failed File not found The file has not been found on the server. Request waiting in The provisioning request is queuing... queue... In progress... Update is in progress. 2N TELEKOMUNIKACE a.s., www.2n.cz 184/198...
  • Page 185 ACS connection manually. Next synchronisation in – display the time period in which the intercom shall contact a remote ACS. Connection status – display the current ACS connection state or error state 2N TELEKOMUNIKACE a.s., www.2n.cz 185/198...
  • Page 186 Periodic inform enabled – enable periodical logging of the intercom to the ACS. Periodic inform interv al – s et the interval of periodical logging of the intercom to the ACS if enabled by the Periodic inform enabled parameter. 2N TELEKOMUNIKACE a.s., www.2n.cz 186/198...
  • Page 187 Make sure that the server address is set correctly. Server address – set the IP/MAC address of the server on which the Syslog application is running. Severity level – set the severity level of the messages to be sent. 2N TELEKOMUNIKACE a.s., www.2n.cz 187/198...
  • Page 188 Reset configuration – reset default values for all of the intercom parameters except for the network settings. Use the respective jumper or push Reset reset all the intercom parameters; refer to the Installation Manual of your intercom. 2N TELEKOMUNIKACE a.s., www.2n.cz 188/198...
  • Page 189 These data do not include any sensitive information such as passwords, access codes or phone numbers. This information helps 2N TELEKOMUNIKACE a.s. improve the software quality, reliability and performance. Your participation is voluntary and you can cancel this sending any time.
  • Page 190 HTTP In/Out Web server HTTPS In/Out Web server Multicast audio 22222 In/Out Streaming 8006   ® Multicast audio for 2N Mobile video 8008   ® Multicast video for 2N Mobile video NTP klient In/Out – ONVIF 80, 443, In/Out –...
  • Page 191 /UDP SIPS 5061 In/Out Phone SMTP E-Mail Syslog – TFTP – Echo – a proprietary protocol for the intercom discovery in the network. Used in ® ® ® applications: Network Scanner IP Eye Access Commander 2N TELEKOMUNIKACE a.s., www.2n.cz 191/198...

  • Page 192: Supplementary Information

    6. Supplementary Information Here is what you can find in this section: 6.1 Troubleshooting 6.2 Directives, Laws and Regulations 6.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 192/198...

  • Page 193: Troubleshooting

    6.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz 2N TELEKOMUNIKACE a.s., www.2n.cz 193/198...

  • Page 194: Industry Canada

    NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. 2N TELEKOMUNIKACE a.s., www.2n.cz 194/198...
  • Page 195 Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 195/198...

  • Page 196: General Instructions And Cautions

    The consumer shall, at its own expense, obtain software protection of the product. The manufacturer shall not be held liable and responsible for any damage incurred as a result of the use of deficient or substandard security software. 2N TELEKOMUNIKACE a.s., www.2n.cz 196/198...

  • Page 197: Electric Waste And Used Battery Pack Handling

    Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. 2N TELEKOMUNIKACE a.s., www.2n.cz 197/198...
  • Page 198 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Phone: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz v2.22 2N TELEKOMUNIKACE a.s., www.2n.cz 198/198...

Table of Contents

Save PDF
