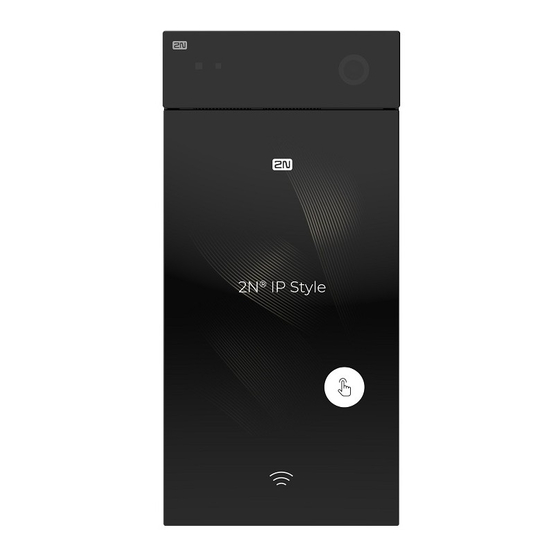

2N IP Style
Door Entry IP Intercom
Installation Manual
Version:
1.0
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP Style and is the answer not in the manual?

Questions and answers

Summary of Contents for 2N IP Style

  • Page 1 ® 2N IP Style Door Entry IP Intercom Installation Manual Version: www.2n.cz...
  • Page 2 2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www. faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...".
  • Page 3 The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All development, production and distribution processes of the company are managed by this standard and guarantee a high quality, technical level and professional aspect of all our products.
  • Page 4: Table Of Contents

    2.3.1 Overvoltage Protection 2.4 Extending Module Connection 3. Function and Use 3.1 Configuration 3.1.1 2N® IP Style LAN Location via 2N® Network Scanner 3.2 2N® IP Style User Control 3.3 Intercom Control as Viewed by Internal User 3.4 Maintenance 3.5 Downloads 4.
  • Page 5: Product Overview

    1. Product Overview Here is what you can find in this section: 1.1 Components and Associated Products 1.2 Terms and Symbols 2N TELEKOMUNIKACE a.s., www.2n.cz 5/105...
  • Page 6 Wide-angle HD camera – allows the called user to see the calling persons on the 2N answering units, videophone displays or PC screens. The intercom is equipped with night vision, which automatically selects the night/day mode according to light.
  • Page 7 Audio codecs (G.711, G.729, G.722, L16/16 kHz) HTTP server for configuration SNTP client for server time synchronization RTSP server for video streaming SMTP client for email sending TFTP/HTTP client for automated configuration and firmware update 2N TELEKOMUNIKACE a.s., www.2n.cz 7/105...
  • Page 8: Components And Associated Products

    Main Units Part No. 9157101 ® IP Style Main Unit Internal 125 kHz and 13.56 MHz card reader Part No. 9157101-S ® IP Style Main Unit Internal 125 kHz and secured 13.56 MHz card reader 2N TELEKOMUNIKACE a.s., www.2n.cz 8/105...
  • Page 9 Mounting Accessories Part No. 9157002 ® IP Style surface mounting chassis Part No. 9157001 ® IP Style flush mounting box 2N TELEKOMUNIKACE a.s., www.2n.cz 9/105...
  • Page 10 The module also supports the 125 kHz and 13.56 MHz cards and other carriers: 125 kHz EM4xxx 13.56 MHz ISO14443A (Mifare, DESFire) PicoPass (HID iClass) FeliCa ST SR(IX) ® Mobile Key 2N TELEKOMUNIKACE a.s., www.2n.cz 10/105...
  • Page 11 An external Bluetooth reader connected via USB to your computer. It can be used for pairing new users who want ® to use their smartphones with the 2N Mobile application for access to controlled areas. A USB driver is required for the external reader to work properly.
  • Page 12 9155038 Part No. 9155037 ® Verso – Wiegand The module helps you interconnect your system with other systems via the Wiegand interface. The module is installed under another module, i.e. needs no separate position. 2N TELEKOMUNIKACE a.s., www.2n.cz 12/105...
  • Page 13 ST SR(IX) ® Mobile Key Part No. 9155046 ® Verso – Bluetooth reader It helps you open the door using the combination of the Bluetooth technology and a ® smartphone with the 2N Mobile Key application. 2N TELEKOMUNIKACE a.s., www.2n.cz 13/105...
  • Page 14 The module supports the 13.56 MHz cards and other carriers of the following standards: ISO14443A (Mifare, DESFire) PicoPass (HID iClass) FeliCa ST SR(IX) ® Mobile Key HID SE (Seos, iClass SE, Mifare SE) 2N TELEKOMUNIKACE a.s., www.2n.cz 14/105...
  • Page 15 Only one interconnecting cable is allowed in a single installation. The maximum bus length is 7 m. Part No. 9155055 5 m interconnecting cable Only one interconnecting cable is allowed in a single installation. The maximum bus length is 7 m. 2N TELEKOMUNIKACE a.s., www.2n.cz 15/105...
  • Page 16 Indoor Units and Accessories Part No. 91378601 ® Indoor View – black Indoor answering audio/video unit with a touchscreen designed for all 2N IP intercoms Part No. 91378601WH ® Indoor View – white Indoor answering audio/video unit with a touchscreen designed for all 2N IP intercoms Part No.
  • Page 17 Part No. 91378501WH ® Indoor Compact – white Indoor answering audio/video unit with a touchscreen designed for all 2N IP intercoms Part No. 91378401 ® Indoor Talk – black Indoor answering audio unit with a touchscreen designed for all 2N IP intercoms Part No.
  • Page 18 Part No. 91378800 Wall/plasterboard flush mounting box for 2N indoor answering units. Part No. 91378803 Wall surface mounting box for 2N answering units. Part No. 91378802 Stand for 2N indoor answering units. 2N TELEKOMUNIKACE a.s., www.2n.cz 18/105...
  • Page 19 2N IP intercoms . The display panel shows you the person standing at your door and helps you make conversation with the visitor, open the door lock or switch on the entrance hall lights. 2N TELEKOMUNIKACE a.s., www.2n.cz 19/105...
  • Page 20 Part Number: ® Indoor Touch – Desk stand white 91378382W 2N TELEKOMUNIKACE a.s., www.2n.cz 20/105...
  • Page 21 Grandstream GXV3275 VoIP video telephone GXV3275 is a successor to the popular GXV3175 model, which provides comfortable video calls in the IP network. Touchscreen control. Part No. 1120101B ® IP Handset – black Basic answering audio unit 2N TELEKOMUNIKACE a.s., www.2n.cz 21/105...
  • Page 22 Part No. 1120101W ® IP Handset – white Basic answering audio unit 2N TELEKOMUNIKACE a.s., www.2n.cz 22/105...
  • Page 23 BEFO 11211MB with mechanical blocking 12 V / 230 mA DC low consumption You can set the lever mechanically into the OPEN or CLOSED position. When OPEN, the lock is constantly open, when CLOSED, it is a standard lock. 2N TELEKOMUNIKACE a.s., www.2n.cz 23/105...
  • Page 24 The reversible lock is closed when electricity is switched on. When electricity is interrupted, the lock is opened. It contains a built-in contact to indicate whether the door is open/closed. FAQ: Electric locks - Differences between locks for 2N IP intercoms 2N TELEKOMUNIKACE a.s., www.2n.cz 24/105...
  • Page 25 IP device to it. You do not have to configure ® anything, all you need is one 2Wire unit at each end of the cable and a power supply connected to them. 2N TELEKOMUNIKACE a.s., www.2n.cz 25/105...
  • Page 26 Access Commander . The same card /device types are read as in the 2N IP intercom card readers: 125 kHz EM4xxx 13.56 MHz ISO14443A (Mifare, DESFire) PicoPass (HID iClass) FeliCa ST SR(IX) ® Mobile Key 2N TELEKOMUNIKACE a.s., www.2n.cz 26/105...
  • Page 27 13.56 MHz, 125 kHz cards and Android platform devices supporting NFC/HCE using 2N IP intercom ® interface or the Access Commander application. The same card/device types are read as in the 2N IP intercom card readers: 125 kHz EM4xxx 13.56 MHz ISO14443A (Mifare, DESFire) PicoPass (HID iClass)
  • Page 28 Part No. 9134174 Mifare Classic 1k RFID fob, 13.56 MHz 2N TELEKOMUNIKACE a.s., www.2n.cz 28/105...
  • Page 29 Suitable for system administration and adding of ® EM4xxx cards using Access Commander Part No. 9134165E RFID card, type EM4100, 125 kHz Part No. 9134166E Key fob RFID , type EM4100, 125 kHz Biometry 2N TELEKOMUNIKACE a.s., www.2n.cz 29/105...
  • Page 30 Part No. 9137423E ® IP intercom - external fingerprint reader (USB interface) Used for scanning user fingerprints into the device system in case an extending fingerprint reader module is connected to 2N ® IP Style 2N TELEKOMUNIKACE a.s., www.2n.cz 30/105...
  • Page 31 Part No. 9137411E External IP relay – 4 outputs, PoE A stand-alone IP device, which can be controlled from an IP intercom via HTTP commands. Helps control devices from an unlimited distance. 2N TELEKOMUNIKACE a.s., www.2n.cz 31/105...
  • Page 32 It has to be used with Part No. 9155041 . A 40 cm long interconnecting cable is included. Dimensions: 233 (W) x 233 (H) mm FAQ: Induction loop – How to connect it with 2N IP intercoms 2N TELEKOMUNIKACE a.s., www.2n.cz 32/105...
  • Page 33 Part No. 9159012 Magnetic door contact A door installation set for door opening status identification. Used where the intercom is used for door protection to detect whether the door is not closed or forced open. 2N TELEKOMUNIKACE a.s., www.2n.cz 33/105...
  • Page 34 Part No. 9137908 Enhanced Security Part No. 9137909 Gold Part No. 9137910 InformaCast Part No. 9137915 Part No. 9137916 Lift Module Refer to the Configuration Manual for 2N IP Intercoms, Subs. 3.2 Function Licensing for details. 2N TELEKOMUNIKACE a.s., www.2n.cz 34/105...
  • Page 35 Please refer to the local 2N distributor for more accessories and recommendations. 2N TELEKOMUNIKACE a.s., www.2n.cz 35/105...
  • Page 36: Terms And Symbols

    Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 36/105...
  • Page 37: Description And Installation

    2. Description and Installation Here is what you can find in this section: 2.1 Before You Start 2.2 Mechanical Installation 2.3 Electric Installation 2.4 Extending Module Connection 2N TELEKOMUNIKACE a.s., www.2n.cz 37/105...
  • Page 38: Before You Start

    2.1 Before You Start Product Completeness Check ® Before you start the installation, check whether the contents of your 2N IP Style package complies with the following list: ® 1x 2N IP Style 1x Brief Manual 1x Certificate of Ownership 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 39: Mechanical Installation

    The recommended height is 100–150 cm for standard installations and 100–120 cm for disabled persons from the floor to the device camera level. The installation height may vary depending on the device use. 2.2.1 Chassis Installation 2.2.2 Mounting Box Installation 2N ® IP Style Main Unit Installation 2N TELEKOMUNIKACE a.s., www.2n.cz 39/105...
  • Page 40 2N TELEKOMUNIKACE a.s., www.2n.cz 40/105...
  • Page 41 Select flush mounting where possible. This makes the product elegant looking, more vandal resistant and more secure. You are advised to purchase the flush mounting boxes and chassis in advance and commission a building company to do the masonry for you, for example. 2N TELEKOMUNIKACE a.s., www.2n.cz 41/105...
  • Page 42 0.5 mm. (e.g. prefabricated boards, glass, cut stone, etc.). If this is not the case, level the wall surface. Any intentional mechanical damage to the device (drilling, main unit tampering, etc.) results in a loss of warranty. 2N TELEKOMUNIKACE a.s., www.2n.cz 42/105...
  • Page 43 Once overheated, the device is switched off and will be switched on automatically after it gets colder. If exposed to direct sunlight or other heat sources, the device gets hot and may represent a health risk when touched. 2N TELEKOMUNIKACE a.s., www.2n.cz 43/105...
  • Page 44: Chassis Installation

    2.2.1 Chassis Installation 2N TELEKOMUNIKACE a.s., www.2n.cz 44/105...
  • Page 45 Fit the lock counterparts to the upper chassis part, hang the handle with the brackets to the bottom part (4B) and fit all the components using screws (3C). Now the chassis installation is complete (4). 2N TELEKOMUNIKACE a.s., www.2n.cz 45/105...
  • Page 46: Mounting Box Installation

    Mounting Box Installation 2N TELEKOMUNIKACE a.s., www.2n.cz 46/105...
  • Page 47 2N TELEKOMUNIKACE a.s., www.2n.cz 47/105...
  • Page 48 (3), insert a levelling key in the levelling mechanism grooves and turn it to adjust the required level (4). The levelling mechanism allows for a shift of up to 8 mm in height. 2N TELEKOMUNIKACE a.s., www.2n.cz 48/105...
  • Page 49 (6). Put the brackets to the left and right sides of the bottom detent handle (7A) and fit their positions using screws (7B). Now the mounting box installation is complete (8). 2N TELEKOMUNIKACE a.s., www.2n.cz 49/105...
  • Page 50: Electric Installation

    PoE+ supply or a convenient DC supply and restart the device. The PoE power supply detection is performed during the device restart. If the PoE power supply is used and the Low Power Mode is on, all configuration sections show a feeding problem warning. 2N TELEKOMUNIKACE a.s., www.2n.cz 50/105...
  • Page 51 (from 12V supply) (from 12V supply) (from PoE+) At relax 6.06 7.13 Restart 9.88 Infrared light (100%) 2.12 Display backlight intensity (100%) 5.65 Audio (100 %) 1420 10.98 12.92 Video motion detection 0.24 0.28 OUTPUT 8.47 2N TELEKOMUNIKACE a.s., www.2n.cz 51/105...
  • Page 52 H.256 (1920 x 1088) H.265 (1280 x 720) H.264 (2560 x 1440) H.254 (1920 x 1088) H.264 (1280 x 720) MJPEG (2560 x 1440) MJPEG (1920 x 1088) MJPEG (1280 x 720) Maximum Power Consumption 35.16 41.38 2N TELEKOMUNIKACE a.s., www.2n.cz 52/105...
  • Page 53 Thus, the device is grounded without the need to use grounding terminals. Remove the protective connector cover to facilitate the threading of the UTP/STP cable RJ terminal into the device box. 2N TELEKOMUNIKACE a.s., www.2n.cz 53/105...
  • Page 54 ON = closed contact OR U < 1.5 V TAMPER Security system connecting terminals (on the back side above the connectors) SWITCH 12 V / 0.6 A DC active output RELAY 30 V / 1 A AC/DC NO/NC contact terminals 2N TELEKOMUNIKACE a.s., www.2n.cz 54/105...
  • Page 55 Optionally PoE+ 802.3at for device LAN connection connector Tamper Switch detecting unauthorized device opening Switch SD CARD SD card slot Caution We recommend that a grounding cable of the cross-section of 1.5 mm is used. 2N TELEKOMUNIKACE a.s., www.2n.cz 55/105...
  • Page 56 Passive switch: make and break contact, up to 30 V / 1 A AC/DC Used for 9155034) relay2 connection of non-critical devices only (lights, e.g.). You can use any number of the modules marked with *. 2N TELEKOMUNIKACE a.s., www.2n.cz 56/105...
  • Page 57 Relay output wiring diagram Wiring diagram for making of the electric circuit of the device to be controlled Wiring diagram for breaking of the electric circuit of the device to be controlled 2N TELEKOMUNIKACE a.s., www.2n.cz 57/105...
  • Page 58 Wiring Diagram of IN1 connector in active mod Wiring Diagram of IN1 connector in passive mod Security The 12V output is used for lock connection. If, however, the unit (2N IP Intercom, 2N Access Unit) is installed where unauthorized tampering ®...
  • Page 59 For this way of protection, we recommend a 1 A / 1000 V diode (e.g., 1N4007, 1N5407, 1N5408) connected antiparallel to the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 59/105...
  • Page 60: Overvoltage Protection

    2N device wiring may be exposed to atmospheric effects resulting in overvoltage that may subsequently damage any devices installed outside the building, on its outer wall or roof. Overvoltage may damage devices connected to these wires and installed inside the building as well.
  • Page 61 OVP = overvoltage protection 2N TELEKOMUNIKACE a.s., www.2n.cz 61/105...
  • Page 62: Extending Module Connection

    2.4 Extending Module Connection ® ® IP Style functions can be extended by connecting any of the available 2N Verso extending modules via the VBUS connector. Choose the proper accessories for each type of extending module installation. Info Panel 125 kHz RFID card reader 13.56 MHz NFC RFID card reader...
  • Page 63 External supply + PoE+   Infopanel Module ® The Infopanel module ( Part No. 9155030 ) is one of the 2N IP Verso system elements and is used for inserting and backlighting the printed information. ® The module contains two IP Style bus connectors.
  • Page 64 125 kHz RFID Card Reader Module ® The 125 kHz RFID card reader ( Part No. 9155032 ) is one of the 2N IP Verso system elements and is used for reading RFID card IDs in the 125 kHz band. ®...
  • Page 65 13.56 MHz RFID Card Reader Module ® The 13.56 MHz RFID card reader ( Part No. 9155040 ) is one of the 2N IP Verso system elements and is used for reading RFID card IDs in the 13.56 MHz band. ®...
  • Page 66 A combined Bluetooth and 125 kHz and 13.56 MHz card reader module (Part No. ® ® 9155082 ) is one of the 2N IP Verso system elements and is used for smartphone/ Mobile Key tablet/card access control, making user calls and/or other functions.
  • Page 67 125 kHz, Secured 13.56 MHz, NFC Bluetooth & RFID Reader A combined Bluetooth and 125 kHz and secured 13.56 MHz card reader module (Part ® No. 9155084 ) is one of the 2N IP Verso system elements and is used for smartphone/ ® Mobile Key tablet/card access control, making user calls and/or other functions.
  • Page 68 ® The Bluetooth reader ( Part No. 9155046 ) is one of the 2N IP Verso system elements and helps authenticate users and subsequently open doors using Android and iOS based smartphones via the Bluetooth protocol 4.0, thus replacing the RFID cards.
  • Page 69 Induction Loop Module ® The Induction loop module ( Part No. 9155041 ) is one of the 2N IP Verso system elements and is used form transmitting audio signals directly into a hearing aid via a magnetic field. ®...
  • Page 70 I/O Module ® The I/O module ( Part No. 9155034 ) is one of the 2N IP Verso system elements and is used for extending the number of inputs and outputs. ® The module contains two IP Style bus connectors.
  • Page 71 IN2 terminals for input in passive / active mode ( − 30 V to +30 V DC) OFF = open contact or U > 1.5 V ON = closed contact or U < 1.5 V TAMPER Tamper switch (9155038) input 2N TELEKOMUNIKACE a.s., www.2n.cz 71/105...
  • Page 72 ® The Wiegand module ( Part No. 9155037 ) is one of the 2N IP Verso system elements and is used for connecting an external Wiegand device (RFID card reader, fingerprint / biometric data scanner) and/or connecting the intercom to an external security exchange.
  • Page 73 Isolated input for open LED IN, input activated by GND connection LED IN Isolated input for open LED IN, input activated by +U connection   WIEGAND OUT active supply LED indicator   TAMPER Tamper switch (Part No. 9155038 ) input 2N TELEKOMUNIKACE a.s., www.2n.cz 73/105...
  • Page 74 Technical Parameters of Wiegand Input Current 5 mA Input resistance 680 Ohm Pulse length 50 μs Inter-pulse interval approx. 2 ms Recommended reader - bus driver wiring diagram Recommended reader wiring diagram with OC output 2N TELEKOMUNIKACE a.s., www.2n.cz 74/105...
  • Page 75 Tamper Switch Module ® The Tamper switch module ( Part No. 9155038 ) is one of the 2N IP Verso system elements and helps secure the system against tampering. The module contains two switches, which open whenever the front frame is...
  • Page 76 The device also supports a Departure button connected between the ‘PB’ and ‘- HeliosIP / IP Intercom terminals. Press the Departure button to activate the output for 5 seconds. Status Signaling: Green LED Red LED Status flashing Operational mode 2N TELEKOMUNIKACE a.s., www.2n.cz 76/105...
  • Page 77 Configuration: ® Connect Security Relay to the properly set Security intercom output. Refer to the Configuration Manual for 2N IP Intercoms for details. Make sure that one LED at least is on or flashing. ® Press and hold the Security Relay Reset button for 5 seconds to put the device in the programming mode (both the red and green LEDs are flashing).
  • Page 78 Having reset the factory defaults on a device with firmware 2.18 or ® higher, remember to reprogram Security Relay using the instructions above. ® FAQ: 2N Security Relay – device description and use with the 2N IP intercoms Connection: 2N TELEKOMUNIKACE a.s., www.2n.cz 78/105...
  • Page 79: Function And Use

    This section describes the basic and extending functions of the IP Style product. Here is what you can find in this section: 3.1 Configuration 3.2 2N® IP Style User Control 3.3 Intercom Control as Viewed by Internal User 3.4 Maintenance 3.5 Downloads 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 80: Configuration

    The IP address of the device will be shown in the hidden menu. The menu contains the network mask, default gateway address and DHCP switch among others. ® To retrieve the device IP address you can also use 2N Network Scanner, which can be freely downloaded from www.2n.cz...
  • Page 81 Device Restart To restart the device, disconnect the device from the power supply or use the web interface in the System / Maintenance section. No configuration change appears after the restart. 2N TELEKOMUNIKACE a.s., www.2n.cz 81/105...
  • Page 82: Ip Style Lan Location Via 2N® Network Scanner

    Connect the device to the LAN IP and make sure it is properly powered. 2N ® Network Scanner Description The application helps find the IP addresses of the 2N devices in the LAN. Download the app from the 2N web sites ( www.2n.cz ).
  • Page 83 ® Setup Wizard of 2N IP Network Scanner ® Having installed IP Network Scanner , start the application using the Microsoft Windows Start menu. 2N TELEKOMUNIKACE a.s., www.2n.cz 83/105...
  • Page 84 IP address or activate DHCP. The default configuration password is: 2n. If the found device is grey highlighted, its IP address cannot be configured using this application. In that case, click Refresh to find the device again and check whether multicast is enabled in your network.
  • Page 85 ® IP Network Scanner IP Address Change 2N TELEKOMUNIKACE a.s., www.2n.cz 85/105...
  • Page 86: Ip Style User Control

    3.2 2N® IP Style User Control Sleep Mode ® IP Style switches to the Sleep mode after an idle timeout (default value is 60 s). In the Sleep mode, you can go to the Showcase mode to display a presentation or the company logo/address (see Subs.
  • Page 87 Touch a selected user list position / card with your finger to make an outgoing call to the user. An outgoing call will be set up. Press the red button any time to end the call. Name List 2N TELEKOMUNIKACE a.s., www.2n.cz 87/105...
  • Page 88 If the automatic incoming call answering function is disabled (refer to Subs. 5.4.1 Phone ® of the Configuration Manual for IP Intercoms), any incoming call to IP Style signaled with loud ringing. Push the button to answer the call and the button to reject the call. 2N TELEKOMUNIKACE a.s., www.2n.cz 88/105...
  • Page 89 Timeout for Entering Numbers is signaled acoustically or using a user sound. Door Opening (Switch Activation) by 2N ® Mobile Key ® IP Style is equipped with a door unlocking switch. Activate this switch using the ® Mobile Key authentication (refer to Subs.
  • Page 90 A valid authentication is notified visually and by a continuous switch activation tone or a predefined unlocking user sound. An invalid authentication is signaled acoustically or using a user sound. 2N TELEKOMUNIKACE a.s., www.2n.cz 90/105...
  • Page 91: Intercom Control As Viewed By Internal User

    Configuration Manual). Press # on your phone anytime to extend the call time. The automatic call termination is signaled with a short beep 10 s before the call end. Calling to 2N ® IP Style ® IP Style allows you to answer incoming calls.
  • Page 92 Note Codes 00 and 11 are reserved for DTMF-based door opening. 2N TELEKOMUNIKACE a.s., www.2n.cz 92/105...
  • Page 93: Maintenance

    The manufacturer reserves the right to modify the product in order to improve its qualities. ® IP Style contains no environmentally harmful components. When the product's service life is exhausted, dispose of the product in accordance with applicable legal regulations. 2N TELEKOMUNIKACE a.s., www.2n.cz 93/105...
  • Page 94: Downloads

    3.5 Downloads Software ® USB driver ® IP Eye ® Network Scanner 2N TELEKOMUNIKACE a.s., www.2n.cz 94/105...
  • Page 95: Technical Parameters

    Output LINE OUT: 1 VRMS / 600 Ω Volume control :adjustable with automatic adaptive mode Full Duplex:yes (AEC) Speech transmission index (STI): 0.89 Audio stream Protocols: RTP / RTSP / SRTP Codecs: G.711, G.729, G.722, L16/16kHz 2N TELEKOMUNIKACE a.s., www.2n.cz 95/105...
  • Page 96 Sensor sensitivity without IR light: 0.1 Lux ± 20 % Focal length: 1.7 mm Video stream Protocols: RTP / RTSP / SRTP / HTTP Codecs: H.264, M-JPEG IP camera function:: yes, ONVIF v2.4 profile S compatible 2N TELEKOMUNIKACE a.s., www.2n.cz 96/105...
  • Page 97 Passive switch: NO and NC contacts, up to 30 V / 1 A AC / DC Active switch output: 12 V / 0.6 A DC Passive / active input: −30 V to +30 V DC RFID card reader Supported 125 kHz cards EM4xxx 2N TELEKOMUNIKACE a.s., www.2n.cz 97/105...
  • Page 98 Directory: residential / business (for 10 000 users) I/O module (optional) External Dimension: 43 (W) x 31.5 (H) x 1.5 (D) mm Wiegand module (optional) External Dimensions: 43 (W) x 31.5 (H) x 1.5 (D) mm Mechanical properties Cover: Hardened glass 2N TELEKOMUNIKACE a.s., www.2n.cz 98/105...
  • Page 99 °C to 70 °C Dimensions Surface mounting: 170 (W) x 355 (H) mm x 40 mm (D) Flush mounting: 170 (W) x 355 (H) mm x 22 mm (D) Weight: 1950 g Cover rating: IP65 Resistance level: IK08 2N TELEKOMUNIKACE a.s., www.2n.cz 99/105...
  • Page 100: Supplementary Information

    5. Supplementary Information 5.1 Troubleshooting 5.2 Directives, Laws and Regulations 5.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 100/105...
  • Page 101: Troubleshooting

    5.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz 2N TELEKOMUNIKACE a.s., www.2n.cz 101/105...
  • Page 102: Directives, Laws And Regulations

    Consult the dealer or an experienced radio/TV technician for help Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 102/105...
  • Page 103: General Instructions And Cautions

    The consumer shall, at its own expense, obtain software protection of the product. The manufacturer shall not be held liable and responsible for any damage incurred as a result of the use of deficient or substandard security software. 2N TELEKOMUNIKACE a.s., www.2n.cz 103/105...
  • Page 104 Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. 2N TELEKOMUNIKACE a.s., www.2n.cz 104/105...
  • Page 105 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Phone: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz v1.0 2N TELEKOMUNIKACE a.s., www.2n.cz 105/105...
