NetVanta 1000/1000R Series Hardware Installation Guide
Step
1 Remove power from the unit.
2 If the NIM is already in the NetVanta chassis, remove all cables, release the pins at both edges
of the NIM front panel and slide the module out of the chassis.
3 Carefully align the P1 connector on the NIM with the J1 connector on the DIM. Using only fingertip
pressure so that neither circuit board bends or flexes, ensure that the connectors are firmly seated.
Secure the DIM to the NIM using the screws and standoff posts supplied. See Figure 35.
4 Slide the NIM with the DIM attached into the NetVanta chassis, continuing with the normal NIM
installation (refer to Instructions for Installing the NIMs on page 56).
61200500L1-34L
Instructions for Installing the DIMs
Action

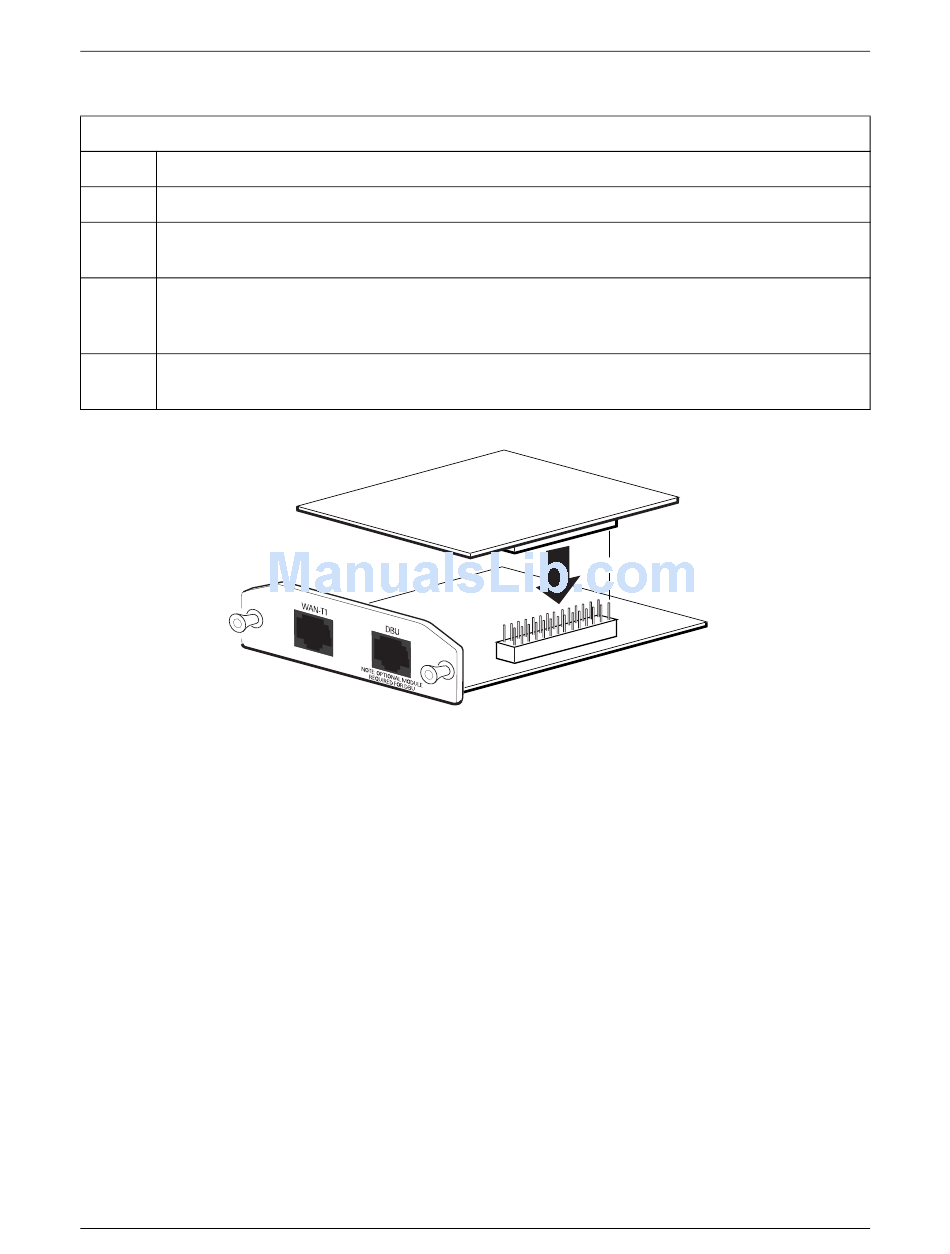

Figure 35. Installing DIMs
Copyright © 2007 ADTRAN, Inc.
Unit Installation
55
