NetVanta 1000/1000R Series Hardware Installation Guide
NetVanta 1224ST Front Panel Features
10/100BaseT Ethernet Interfaces
The NetVanta 1224STs contain 24 10/100BaseT Ethernet interfaces (RJ-45). These interfaces are
consecutively numbered 1 through 24, from left to right, with the numbers screened directly above
each port. Status LEDs for each of these interfaces are located directly over these numbers.
The NetVanta 1224ST PoE also has green and red PoE status LEDs located in the upper left and upper
right corners (respectively) of each Ethernet connector.
Gigabit Ethernet Interfaces/SFP Slots
The NetVanta 1224STs also contain two Gigabit Ethernet interfaces that provide two fixed RJ-45
connectors and two standard small form-factor pluggable (SFP) slots for connectivity over fiber. (Use
either the RJ-45 connectors or the SFP slots. The fiber slots have precedence.) These interfaces are
labeled and , and their status LEDs (also labeled
G1 G2
1, above the STAT LED.
Status LED
The LED, which indicates the unit's status, is located to the lower left of RJ-45 port 1.
STAT
NetVanta 1224ST Rear Panel Design
The NetVanta 1224ST and NetVanta 1224ST PoE rear panel is shown below. Refer to Appendix A on page 61
for pinouts.
Figure 6. NetVanta 1224ST and NetVanta 1224ST PoE Rear Panel Layout
61200500L1-34L

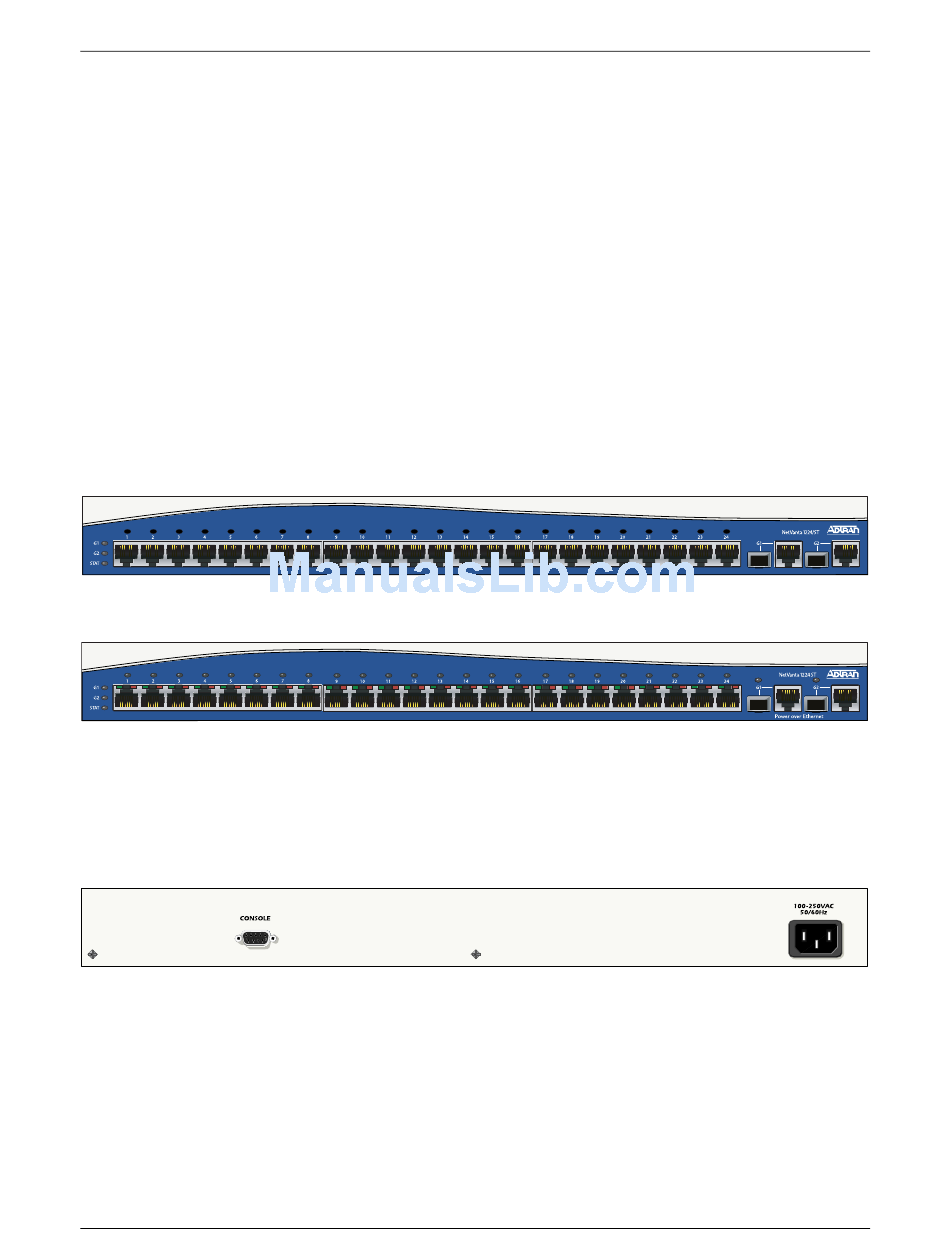

Figure 4. NetVanta 1224ST Front Panel Layout
Figure 5. NetVanta 1224ST PoE Front Panel Layout
Copyright © 2007 ADTRAN, Inc.
and ) are located to the left of RJ-45 port
G1 G2
Physical Descriptions
