NetVanta 1000/1000R Series Hardware Installation Guide
NetVanta Dual T1 NIM (P/N 1200872L1)
The NetVanta Dual T1 NIM (see Figure 26) provides two WAN T1 interfaces for the NetVanta. Refer to Table
A-6 on page 63 for the pinouts. Refer to Table A-14 on page 66 for the DBU connector pinouts. An optional
DIM is required for dial backup applications.
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
T1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR 65016, ANSI T1.403,
Bellcore TR 194
• Line Rate: 1.544 Mbps +75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized
(multiples of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build-Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
• Network
• Internal
• Through
61200500L1-34L

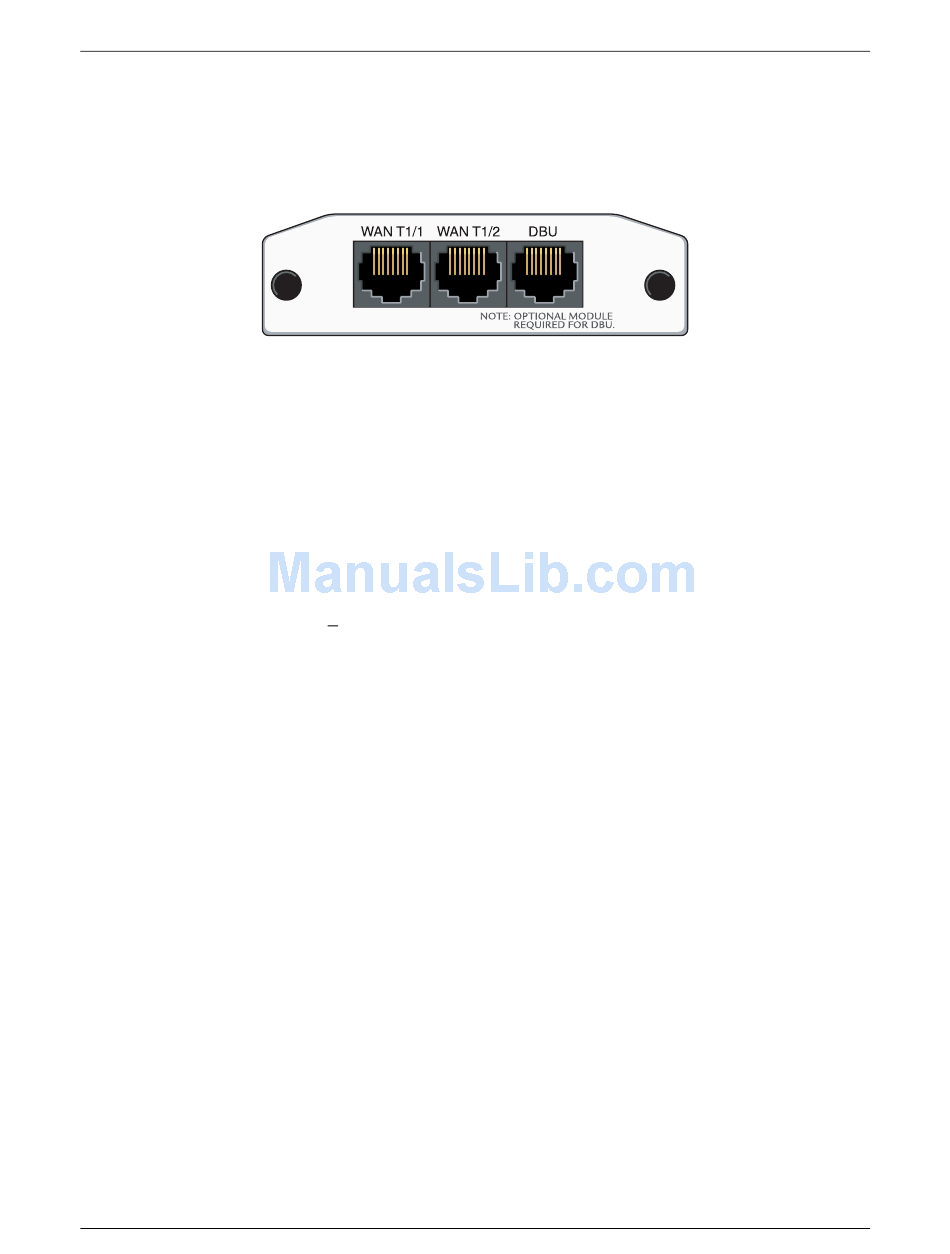

Figure 26. NetVanta Dual T1 NIM
Features and Specifications
Diagnostics
•
•
•
•
Compliance
•
•
•
•
Environmental
•
•
•
Physical
•
Copyright © 2007 ADTRAN, Inc.
Test Pattern Generation and Detection:
15 20
QRSS, 511, 2 - 1, 2 - 1, all ones,
all zeros
Network loopbacks (local and remote);
responds to both inband and FDL loop
codes
Alarm generation detection
Network performance data (15 minutes
and 24 hours)
EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
ACTA/FCC Part 68
IC CS-03
UL/CUL 60950
Operating temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
