NetVanta 1000/1000R Series Hardware Installation Guide
NetVanta T1/FT1 NEBS NIM (P/N 1200862L2#NEBS)
The T1/FT1 NEBS NIM (see Figure 24) T1 WAN interface for the NetVanta 1224STR DC. The T1 NEBS NIM
is NEBS Level 3 compliant, and provides a full T1 or fractional T1 network interface. See Table A-6 on page 63
for the WAN-T1 connector pinouts.
Although the T1/FT1 NEBS NIM is compliant with NEBS Level 3, the NetVanta 1224STR
DC unit supports only NEBS Level 1.
Operating Modes
• Frame Relay, Multilink Frame Relay
• PPP, Multilink PPP
• HDLC
T1/FT1 Interface
• Supported Standards: AT&T TR 62411,
AT&T TR 65016, ANSI T1.403,
Bellcore TR 194
• Line Rate: 1.544 Mbps + 75 bps
• Line Code: AMI or B8ZS
• Framing: D4 (SF) or ESF
• FT1 Line Rate: DS0 channelized (multiples
of 64 kbps)
• Input Signal: 0 to -36 dB (DS1)
• Line Build-Out: 0, -7.5, -15, -22.5 dB
(long), 0 to 655 ft (short)
• DS0 Assignment: Programmable
• Connector: RJ-48C
Clock Source
• Network
• Internal
61200500L1-34L
WAN-T1

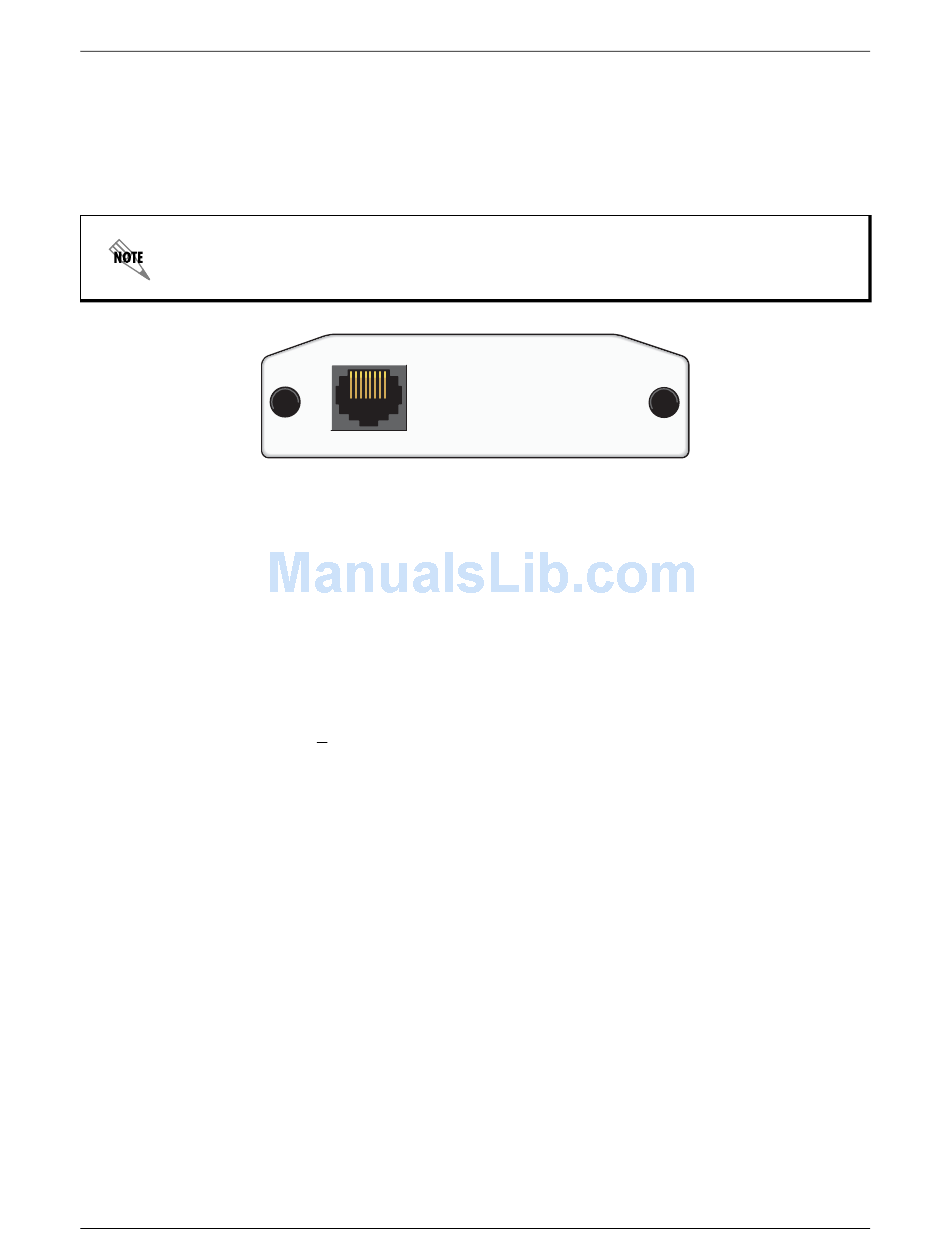

Figure 24. NetVanta T1/FT1 NEBS NIM
Features and Specifications
Copyright © 2007 ADTRAN, Inc.
Diagnostics
• Test Pattern Generation and Detection:
15
QRSS, 511, 2 - 1, 2
all zeros
• Network loopbacks (local and remote);
responds to inband and FDL loop codes
• Alarm generation and detection
• Network and user sets of performance data
(15 minutes and 24 hours)
Compliance
• EMC - see Electromagnetic Compatibility
(EMC) Table on page 6.
• NEBS Level 3
• GR-63-CORE
• GR-1089-CORE
• UL/CUL 60950
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent
noncondensing
Physical
• Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
20
- 1, all ones,
