NetVanta 1000/1000R Series Hardware Installation Guide
Network Interface Modules
NetVanta 56K/64K NIM (P/N 1200861L1)
The 56K/64K NIM (shown in Figure 22) provides a DDS WAN interface for the NetVanta. This module
provides a single 56K or 64K DDS network interface. Refer to Table A-5 on page 63 for the WAN-DDS
connector pinouts, and Table A-14 on page 66 for the DBU connector pinouts. An optional DIM is required for
dial backup applications.
Operating Modes
• Dedicated DDS (leased line)
DDS Interface
• Supported Standards: AT&T TR 62310
• 4-wire, full-duplex
• Receiver Sensitivity: -45 dB, all rates
• Data Rates: 56K, 64K, and auto
• Connector: RJ-48S
Clock Source
• Network
• Internal
Diagnostics
• CSU and DSU Loopbacks
61200500L1-34L

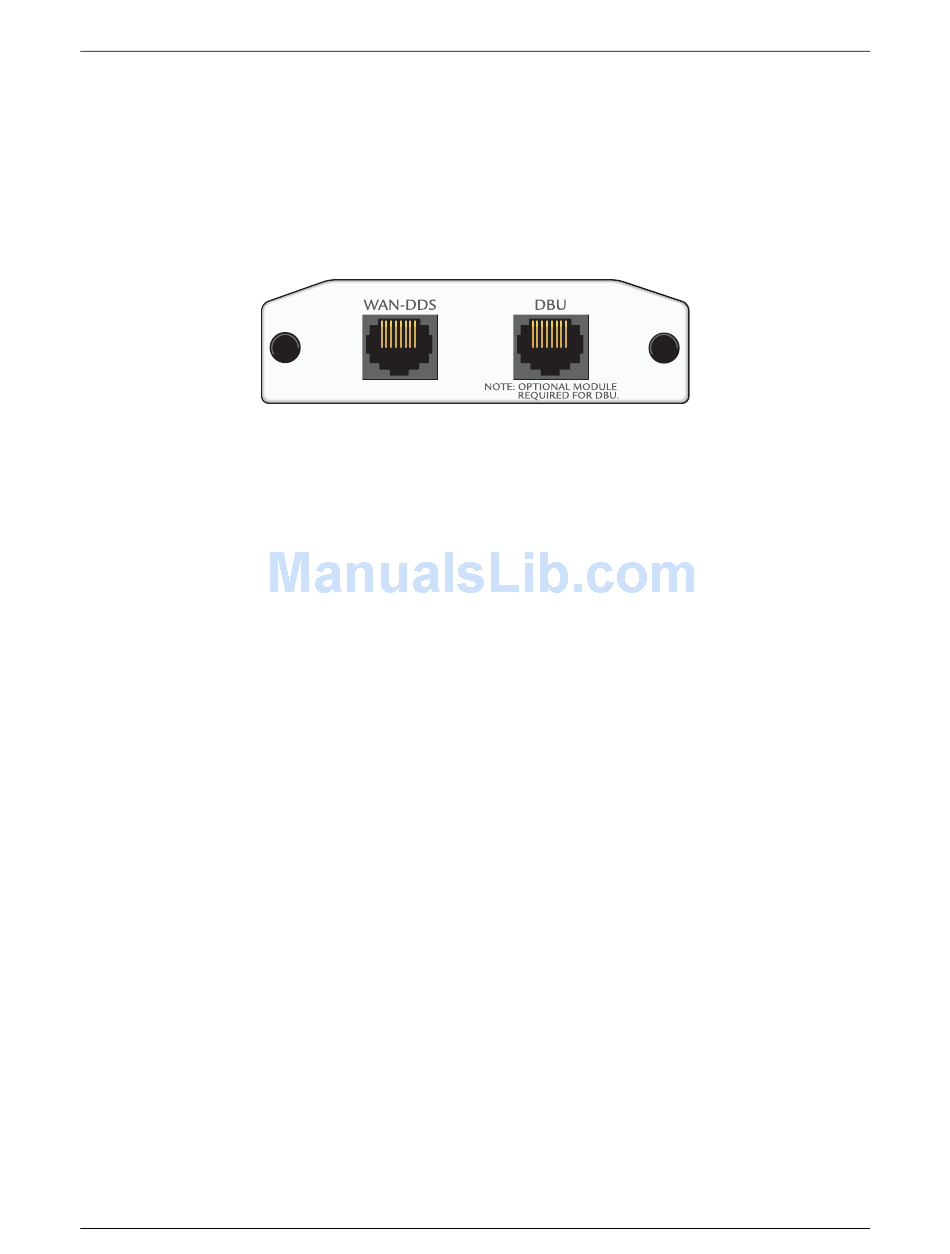

Figure 22. NetVanta 56K/64K NIM
Features and Specifications
Compliance
•
•
•
•
Environmental
•
•
•
Physical
•
Copyright © 2007 ADTRAN, Inc.
EMC - see Electromagnetic Compatibility
(EMC) Table on page 6.
ACTA/FCC Part 68
IC CS-03
UL/CUL 60950
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent,
noncondensing
Dimensions: 2.75-inch W x 4.25-inch D
Option Modules
