Physical Descriptions
Status LEDs
The status LEDs are located to the lower left of RJ-45 port 1. The
installed NIM. The
DBU
unit's status.
NetVanta 1224R Rear Panel Design
The NetVanta 1224R and NetVanta 1224R PoE rear panel is shown below. Refer to Appendix A on page 61 for
pinouts.
Figure 9. NetVanta 1224R and NetVanta 1224R PoE Rear Panel Layout
NetVanta 1224R Rear Panel Interfaces
NIM Option Slot
The NIM option slot accepts a variety of NIM option modules (refer to Option Modules on page 34).
CONSOLE Interface
The interface is an EIA-232 serial port (DCE) which provides for local management and
CONSOLE
configuration (via a DB-9 female connector).
Connection directly to an external modem requires a cross-over cable.
Power Connection
The rear panel has a power input to the AC universal power supply. Please refer to Supplying Power to
the Unit on page 53 for connection details.
22
NetVanta 1000/1000R Series Hardware Installation Guide
LED reflects the status of an installed DIM. The

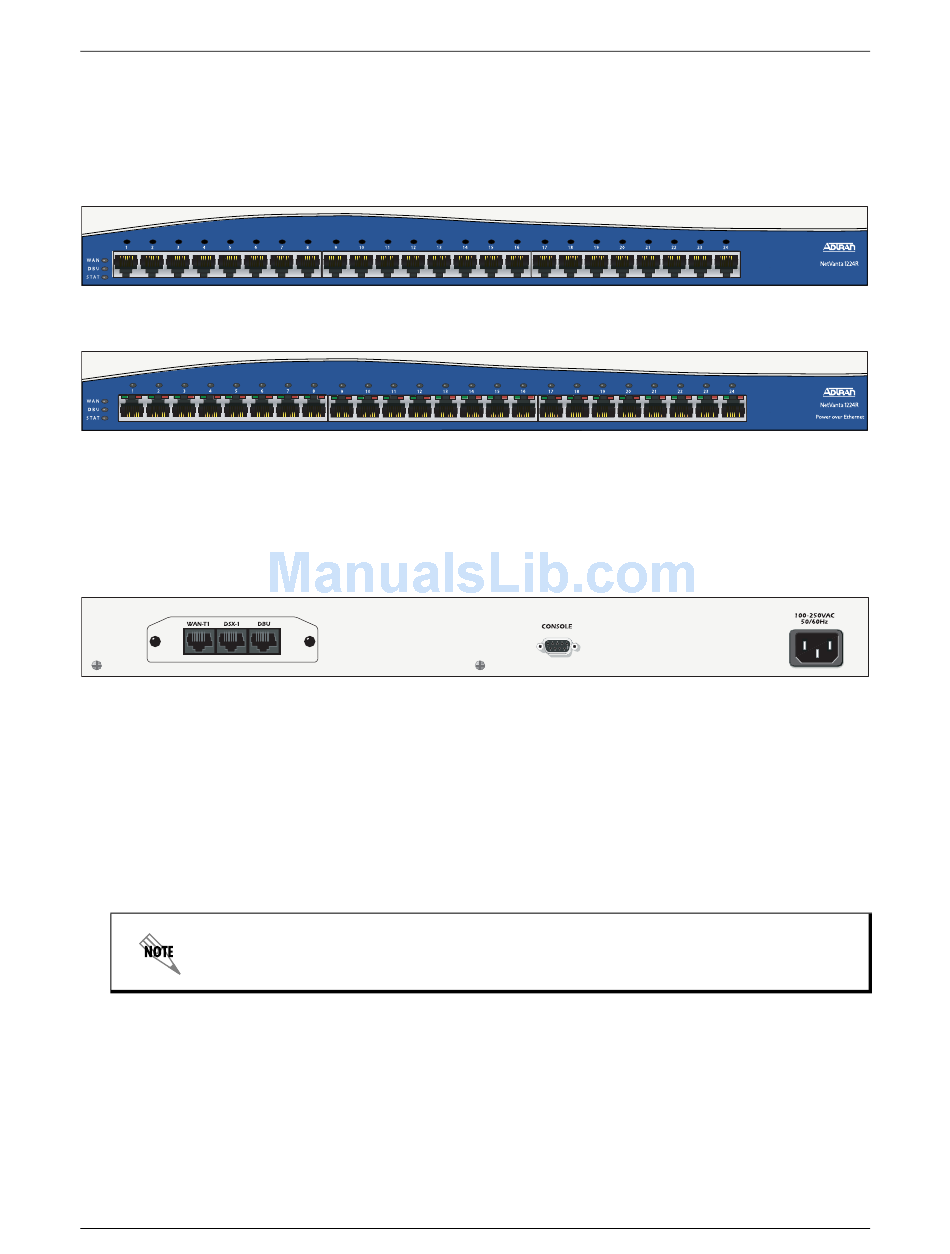

Figure 7. NetVanta 1224R Front Panel Layout
Figure 8. NetVanta 1224R PoE Front Panel Layout
Copyright © 2007 ADTRAN, Inc.
LED reflects the status of an
WAN
LED indicates the
STAT
