NetVanta 1224 Front Panel Features
10/100BaseT Ethernet Interfaces
The NetVanta 1224s contain 24 10/100BaseT Ethernet interfaces (RJ-45). These interfaces are
consecutively numbered 1 through 24, from left to right, with the numbers screened directly above
each port. Status LEDs for each of these interfaces are located directly over these numbers.
The NetVanta 1224 PoE also has green and red PoE status LEDs located in the upper left and upper
right corners (respectively) of each Ethernet connector.
Status LED
The LED, which indicates the unit's status, is located to the lower left of RJ-45 port 1.
STAT
NetVanta 1224 Rear Panel Design
The NetVanta 1224 and NetVanta 1224 PoE rear panel is shown below. Refer to Appendix A on page 61 for
pinouts.
Figure 3. NetVanta 1224 and NetVanta 1224 PoE Rear Panel Layout
NetVanta 1224 Rear Panel Interfaces
CONSOLE Interface
The interface is an EIA-232 serial port (DCE) which provides for local management and
CONSOLE
configuration (via a DB-9 female connector).
Connection directly to an external modem requires a cross-over cable.
Power Connection
The rear panel has a power input to the AC universal power supply. Please refer to Supplying Power to
the Unit on page 53 for connection details.
61200500L1-34L

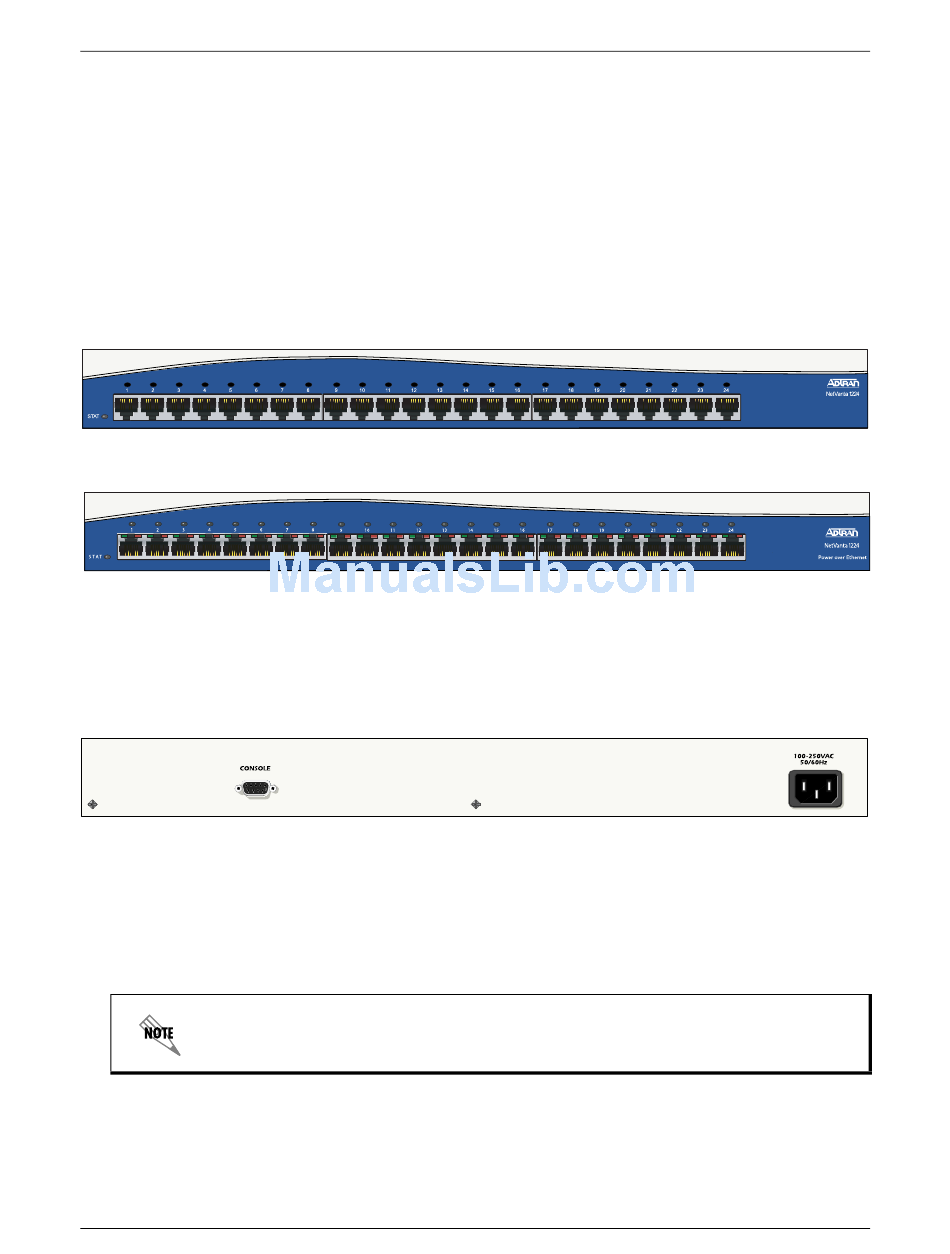

Figure 1. NetVanta 1224 Front Panel Layout
